sewaZoeller 24×24″ Preassembled Sewage Systems 1/2 HP (M266)
Description
–Preassembled 24″ x 24″ (61 x 61 cm) Sewage System. Complete and job ready for fast installation.
Systems include
- (1) 2” (50 mm) solids sewage ejector
- (1) 24” x 24” (61 x 61 cm) poly-molded basin
- (1) PSF cover with 2V2D
- Internal 2” (DN50) PVC discharge pipe
Pump Features
- Cast iron construction (models 264/266)
- Thermoplastic construction (model 211)
- Automatic or piggyback configuration available
- Full 2” (50 mm) spherical solids capacity
- Thermal overload protection
- Non-clogging vortex impeller
- 3 year limited warranty on Models 264/266
Basin Features
- 24″ (61 cm) depth for easier installation in troublesome areas
- 41 gallon (155 liter) capacity (exceeds 18 x 30)
- 25 gallon (95 liter) capacity below 4″ inlet
- Vertical support ribs help eliminate stuck float switches
- Anti-flotation device (AFD) helps to eliminate basin from “floating”
- 360° molded handle (acts as secondary AFD)
- (1) 4″ pre-drilled inlet (flex-coupling provided by others)
- (7) additional flat areas for inlet installation (field-drilled)
- Molded torque stops for added pump support

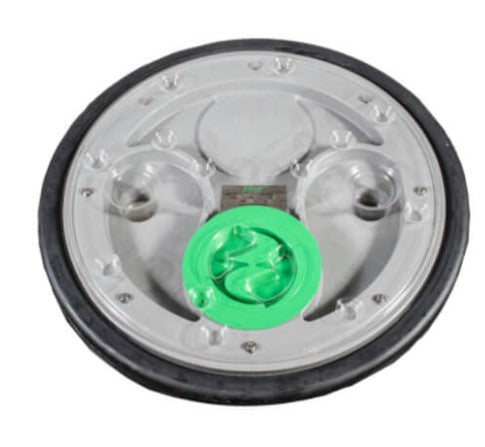

- One-piece molded PSF cover with integrated, molded foam seal
- Ribbed, reinforced cover to provide additional strength and stability
- Threaded 2″ vent and 2″ discharge piping connections
- Stainless steel cover bolts and hardware
- High water alarm available on certain packages
- Stackable for storage/shipping
Specs
–
Type:
Automatic
Size:
24″ x 24″
Used With:
M266 Pump
Weight (lbs):
67 lbs
Vent Size:
2″
Horse Power:
1/2
Amperage:
10.4
Spec
Type:
Automatic
Size:
24″ x 24″
Used With:
M266 Pump
Weight (lbs):
67 lbs
Vent Size:
2″
Horse Power:
1/2
Amperage:
10.4
Dimension
Size:
24″ x 24″
Weight (lbs):
67 lbs
