Description

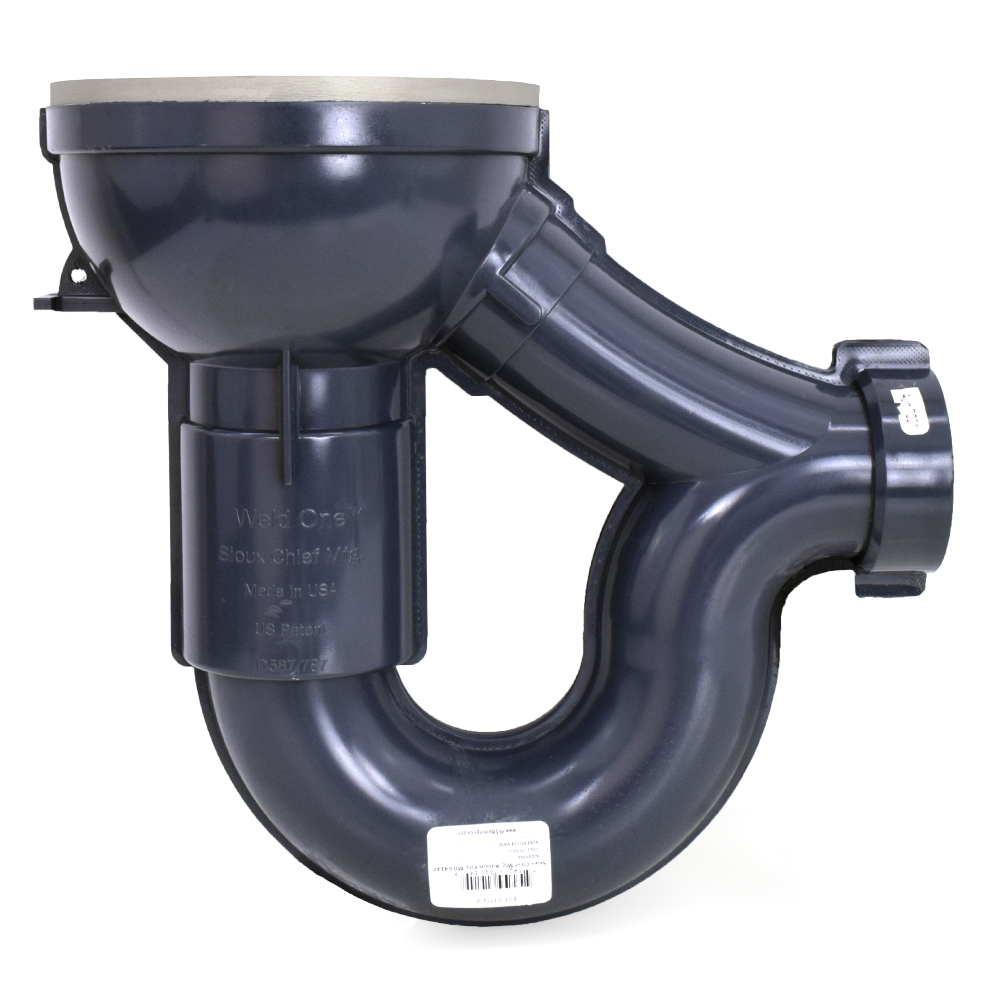

Sioux Chief WeldOne is a one-piece, sonic welded (not glued) floor drain with built-in P-trap and cleanout with 1-1/2″ MIP plug (pre-installed inside the drain). Solid stainless steel strainer and ring. Compatible with (optional, not included) 802-7 backwater device. Adhesive cover protects the drain from dirt and debris during installation. 2″ hub connection accepts Sch 40/80 PVC pipe (solvent weld connection – regular PVC cement and primer).
Features:
- Integrated P-trap makes installation quicker and easier
- Pre-sloped drain outlet for proper drainage
- Sonic welded (not glued), reliable design
- Knock-out primer port
- Pre-installed 1-1/2″ MIP polypro cleanout plug for easy drain cleaning
- Compatible with 802-7 backwater device (optional, sold separately)
- Adhesive debris cover protects the strainer during installation
- Made in the USA
Technical Specifications:
- Connection: 2″ PVC Hub, Solvent Weld – glues over 2″ PVC pipe
- Strainer & Ring: Stainless Steel, Round
- Strainer Load Rating: 1,000 lbs
- Top Diameter: 6-1/2″
- Overall Length: 12″
- Overall Height: 11-1/2″
- Knock-out Primer Port: 1/2″ FIP threaded
