Description
Feature:
· Precise manufacturing
· Thrust bearing
· Change gear train
· Lathe chuck protection
· Acceptance Precision Sheet
· Hardened and ground bed guideways
· Powerful, maintenance free motor

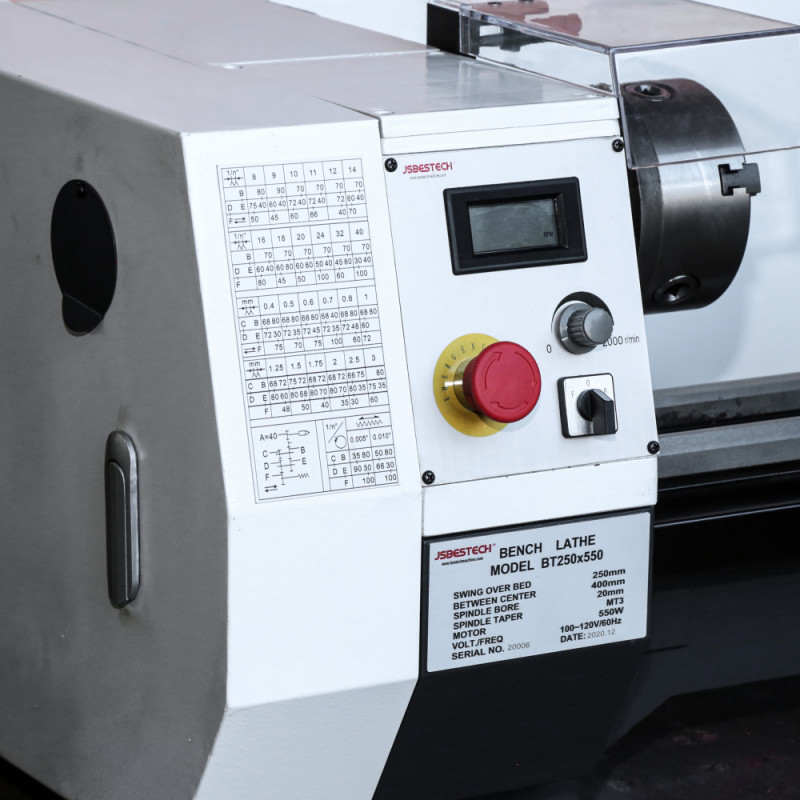

· Emergency-stop push button and low-voltage release
· Leading spindle run on two porous bearings
· Large threading range due to set of change gears
· True running accuracy of the lathe chuck better than 0.04 mm
· Guaranteed true running accuracy of the spindle nose better than 0.009 mm
· Heavily ribbed prism bed made of steel casting, inductively hardened and precision ground
| Swing over bed | 250 mm |
| Distance between centers | 400/550 mm |
| Spindle bore | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Cross slide travel | 110 mm |
| Compound travel | 75mm |
| Range of thread Metric version | 0.4-3.0 mm (12 threads) |
| 10-44 TPI (8 threads) | |
| Motor output power | 550 W |
| Voltage | 110v~230v/50~60hz |
| Spindle speed(6 steps) | 50-2250 rpm |
| Packing size (L x W x H) | 1170 x 640 x 580 mm |
| Weight(Net/Gross) | 145/180kg |
