Description

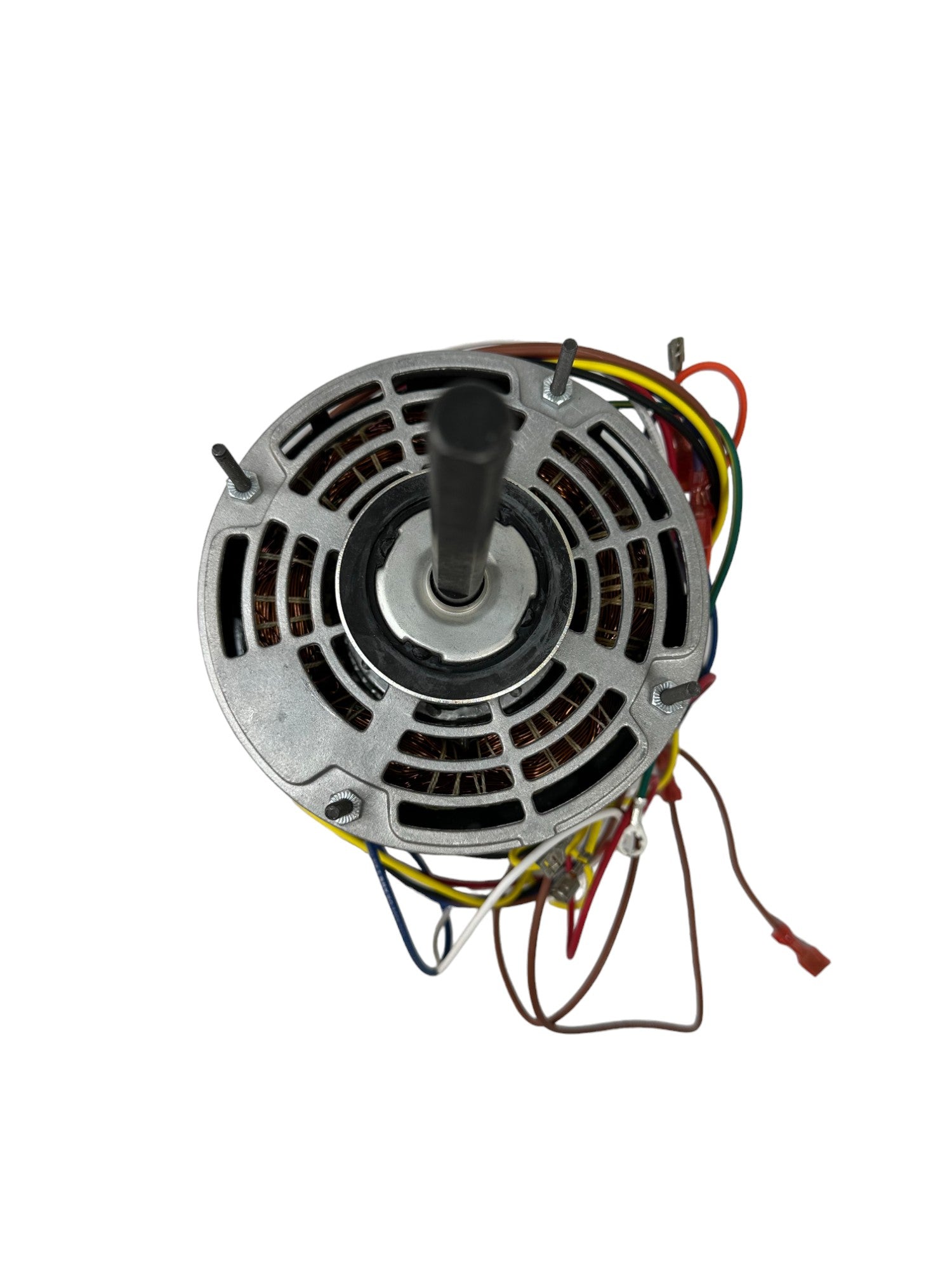

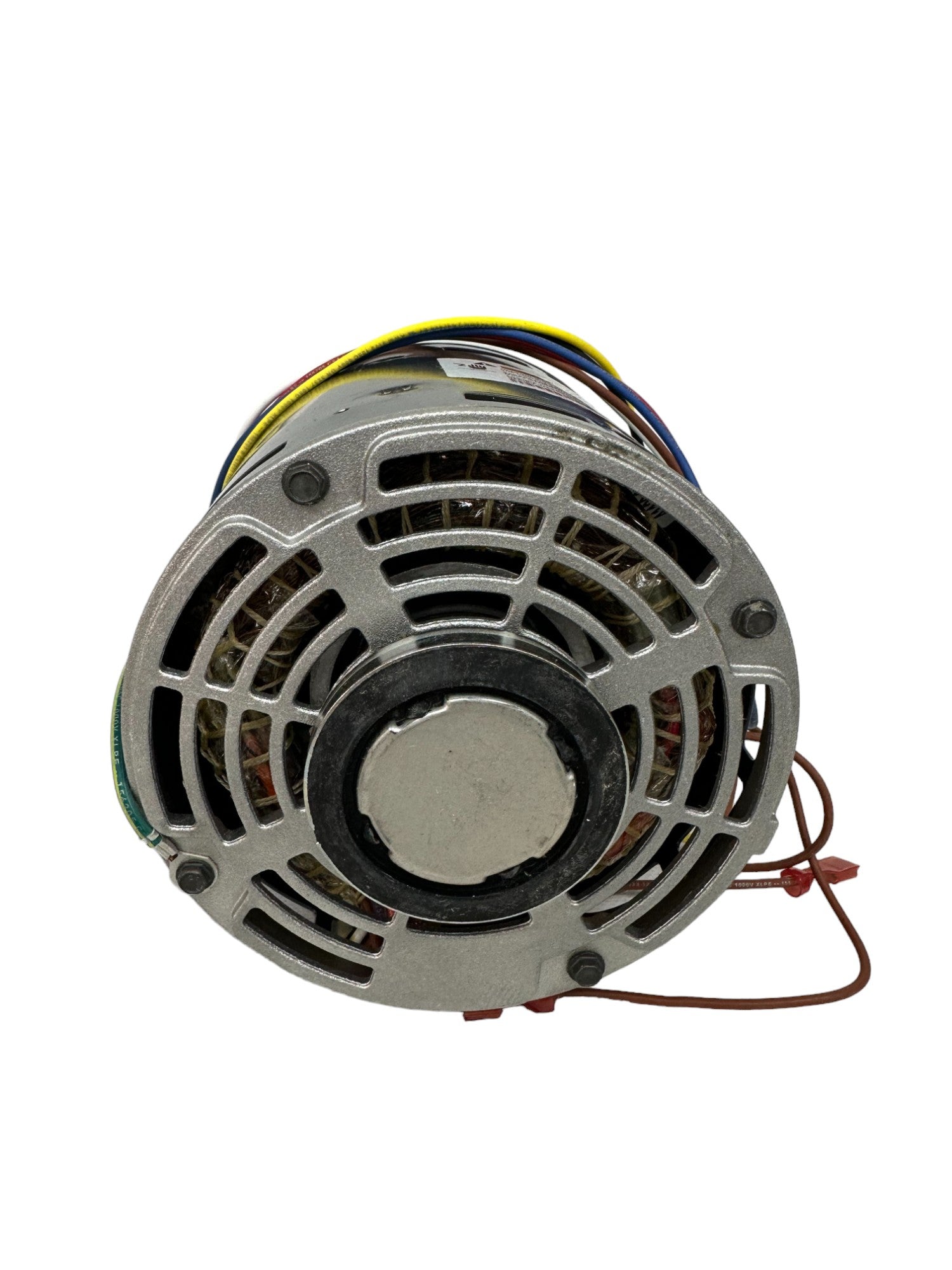

- RESCUE® Permanent Split Capacitor Motor
- Direct Drive Blower
- 5.6″ Dia. Open Air Over
- Multi-Horsepower
- Mounting shell holes with screws
SPECIFICATIONS
Model_Number: K055EGY1146012B
PRODUCT NAME: .5 HP – OPAO – 1075
PHASETYPE: 1_PERMANENT SPLIT CA
MOTOR ENCLOSURE: OPAO
HORSEPOWER: .5
KILOWATTS: 0.4
POLES: 6
NUMBER SPEEDS: 4
RPM: 1075
HERTZ: 60
VOLTS PRIMARY: 208-230 V
VOLTS : 208
VOLTS 2: 230
FRME : 48
SHAFT CODE: Y
STATOR DIAMETER: 5.5
STACK: 2.25
MOUNTING: HUB/STUD
MOTOR TYPE: FHP
OPPOSITE END BEARING: SELF-ALIGN
SHAFT END BEARING: SELF-ALIGN
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1
RUNCAPMFD: 10
RUNCAPVOLTS: 370
SHIPPING WEIGHT: 16
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 53.44
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 10.75
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: A
LOCKED ROTOR AMPS: 6.37
FULL LOAD AMPS PRIMARY: 3.6
SERVICE FACTOR AMPS PRIMARY: 3.6
