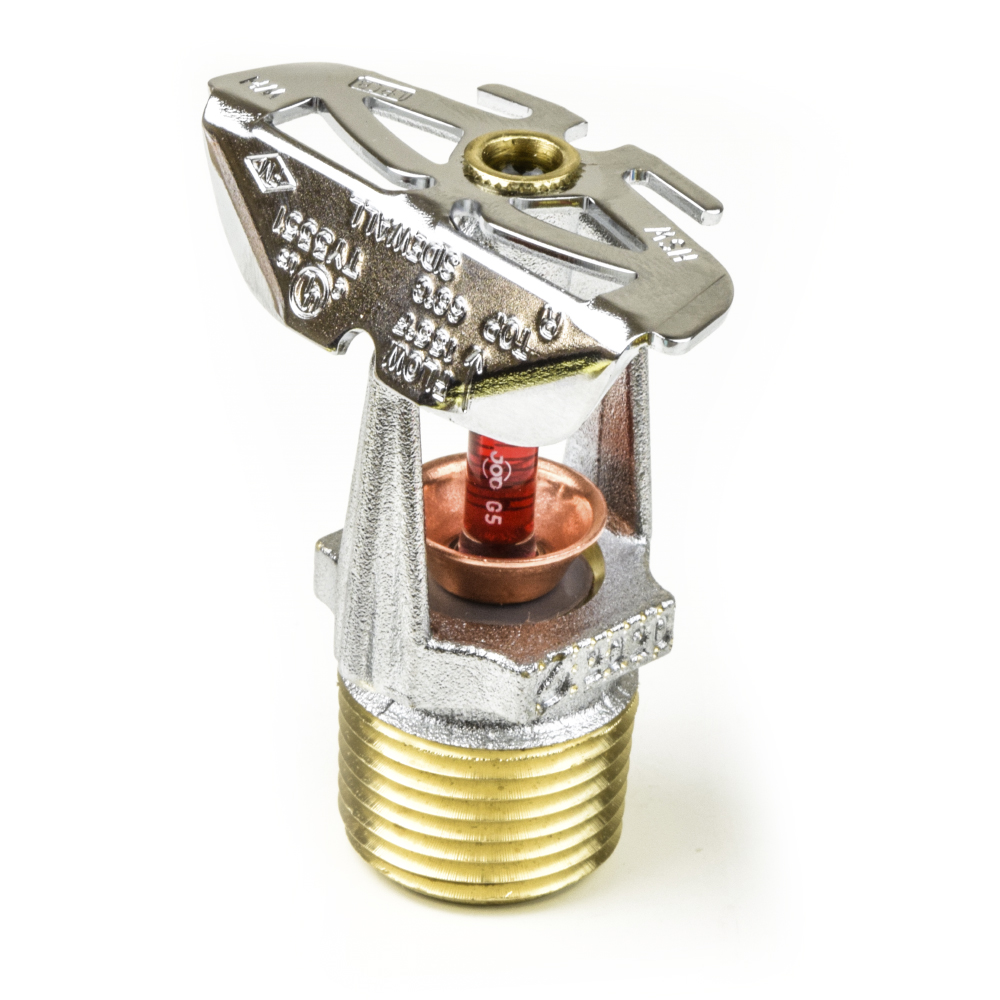

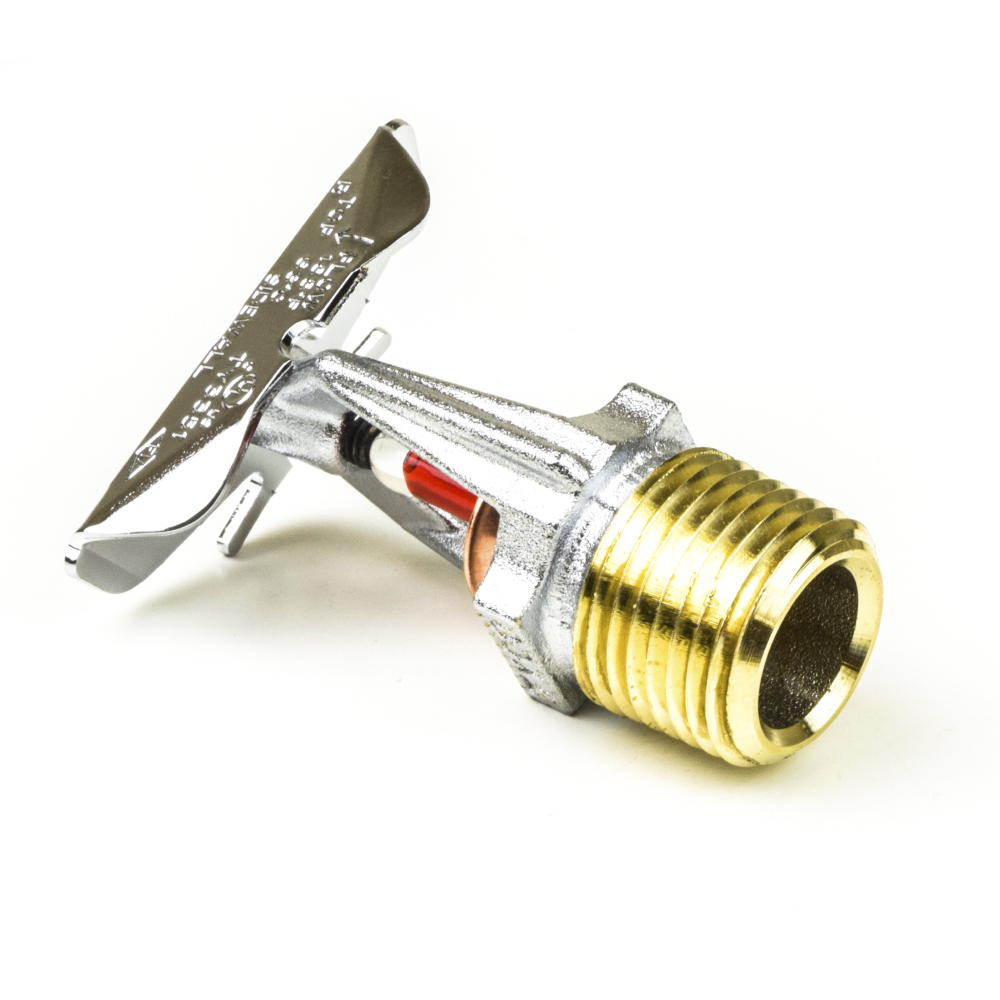

TY-B Horizontal Sidewall Fire Sprinkler Head, Standard Response, K=5.6, Chrome Plated Brass, 155F, 1/2″NPT

Description

Tyco series TY-B standard response sidewall/horizontal fire sprinkler head with standard coverage and 5mm bulb. Suitable for most ordinary and light-hazard applications.
Technical Specifications:

• Type: Horizontal Sidewall Sprinkler
• Response: Standard
• K-factor: 5.6
• Coverage: Standard
• Temperature Rating: 155°F
• Inlet Connection: 1/2″ NPT
• Bulb Size: 5 mm
• Max. working pressure: 250 psi
• Finish: Chrome Plated
• Approvals: UL, C-UL, FM, LPCB, NYC

Warranty:
1 year
