Description

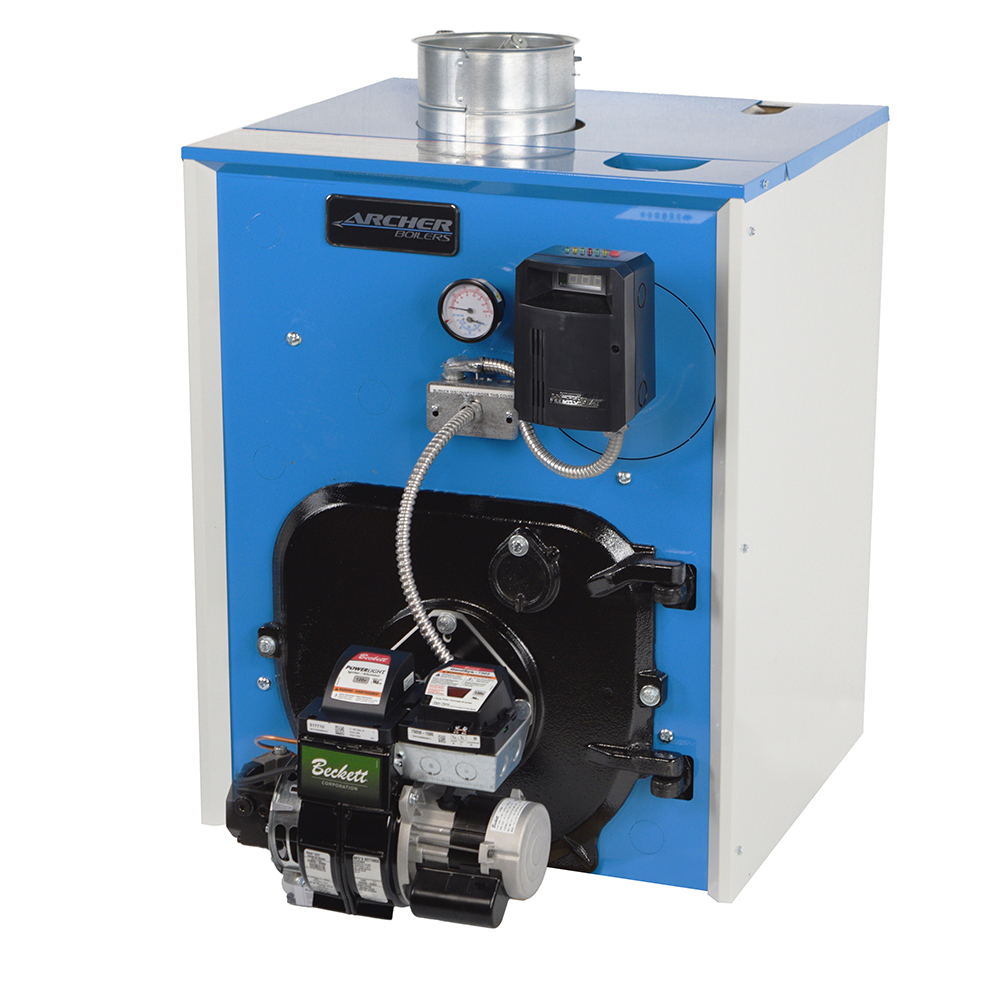

Note: product title indicates boiler’s Net AHRI (Net IBR) rating with standard nozzle pre-installed in burner. Use smaller size nozzle (included) for lower BTU output.Fully packaged Trooper series oil-fired hot water boiler with Beckett burner (model without tankless domestic hot water coil).
Trooper boiler is a cost-attractive, high-quality solution for new or replacement boiler installations, combining clean, no-frills look with top-quality and familiar brand controls & components, USA-made cast iron heat exchanger and quality assembly – for an easy installation & maintenance, longer life span and worry-free performance.
Boiler includes:Beckett Burner, Draft Regulator, Hydrolevel HydroStat Control, Taco 007e (high efficiency) Circulator Pump w/ Flange Set, Pressure Relief Valve, Drain Valve, Temperature & Pressure Gauge, Fittings.
Cross-References:
- Crown/Velocity: TBW200
- Dunkirk: 5EWC1.55
- Lennox: COWB3-5
- New Yorker: CL5-266WE
- Peerless: EC-e-05-175, EC-e-05-200, WBV-e-05-175-W, WBV-e-05-195-W
- Pennco: 5KWC1.55, 5KWC1.75
- Slant/Fin: TR-40-1.60P, TR40-1.80P
- Utica: SFH-5160W, SFH-5185W, SFH-6175W
- Weil-McLain: WGO-7D, WGO-7R, WGO-7RD
Features:
- 2 boiler sizes in one – burner includes (1) additional smaller size nozzle for lower BTU output
- Model without tankless domestic hot water (DHW) coil
- Traditional design, enhanced for greater value and ease of installation & maintenance
- Fully packaged and assembled (circulator, drain valve and T&P valve shipped loose)
- Premium-level, familiar brand controls (Honeywell & Hydrolevel) for ease of monitoring and service
- Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
- Taco 007-F5 circulator included
- Removable top cover and swing-out cast iron door with burner quick disconnect harness for ease of access, cleaning and repair
- Combustion chamber lined with replaceable ceramic insulation
Technical Specifications:
- Input (BTU): 231,000 (w/ default nozzle), 214,000 (w/ nozzle #2)
- Net AHRI Rating (BTU): 201,000 (w/ default nozzle), 186,000 (w/ nozzle #2)
- Burner Capacity (BTU): 266,000 (w/ default nozzle), 245,000 (w/ nozzle #2)
- Burner Capacity/Oil Firing Rate (GPH): 1.90 (default nozzle), 1.75 (nozzle #2)
- Efficiency (AFUE): 86.1% (default), 86.4% (nozzle #2)
- Fuel Type: #2 Fuel Oil
- Boiler/System Type: Hot Water (Hydronic) Cast Iron Oil Boiler
- Boiler Connections: 1-1/2″ NPT – Supply/Return Connections, 3/4″ NPT – Relief Valve, 3/4″ NPT – Drain
- Vent Type: Chimney Vent
- Vent Pipe Size: 8″ (standard Cat I galvanized chimney vent pipe)
- Minimum Chimney Requirements: 8″ x 8″ x 15′
- Dimensions: 26″ Wide x 28″ Deep (40″ w/ burner installed) x 32″ High
- Approx. Shipping Weight: 800 lbs
