Description

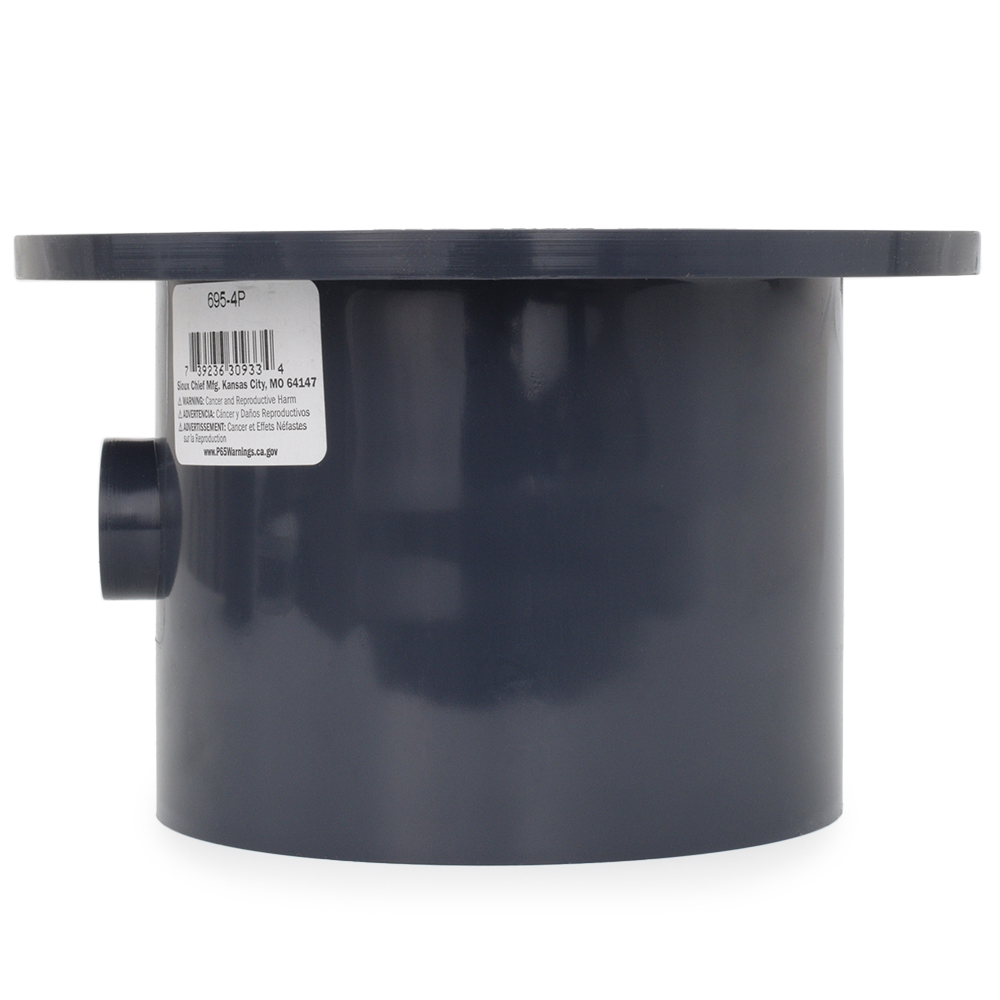

Easy-to-install and compact (adds only 0.75″ to overall pipe length) trap primer adapter facilitates trap primer installation for existing or new drains (P-traps). PVC Hub connection on top and bottom (for Sch 40/80 pipe), with 1/2″ FIP primer port. Eliminates the need for drilling holes and installing saddle tees. Top flange adds stability when installed flush to floor (subfloor). Installed using standard PVC glue (cement) and primer.
Technical Specifications:
- Drain Connections (Top & Bottom): 4″ PVC Hub – accepts 4″ PVC DWV pipe (Sch 40/80)
- Trap Primer Connection/Port: 1/2″ FIP
- Overall Height: 4-1/4″
- Top Flange Diameter: 7″
