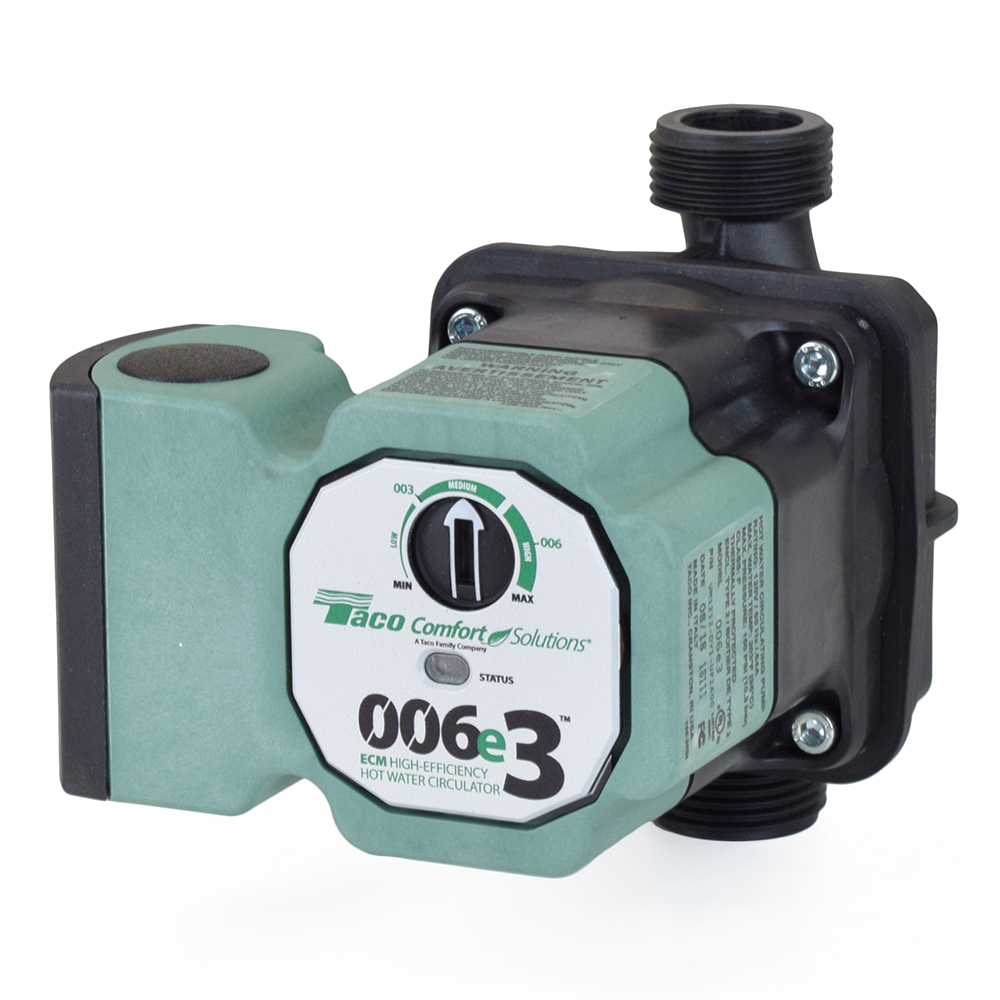

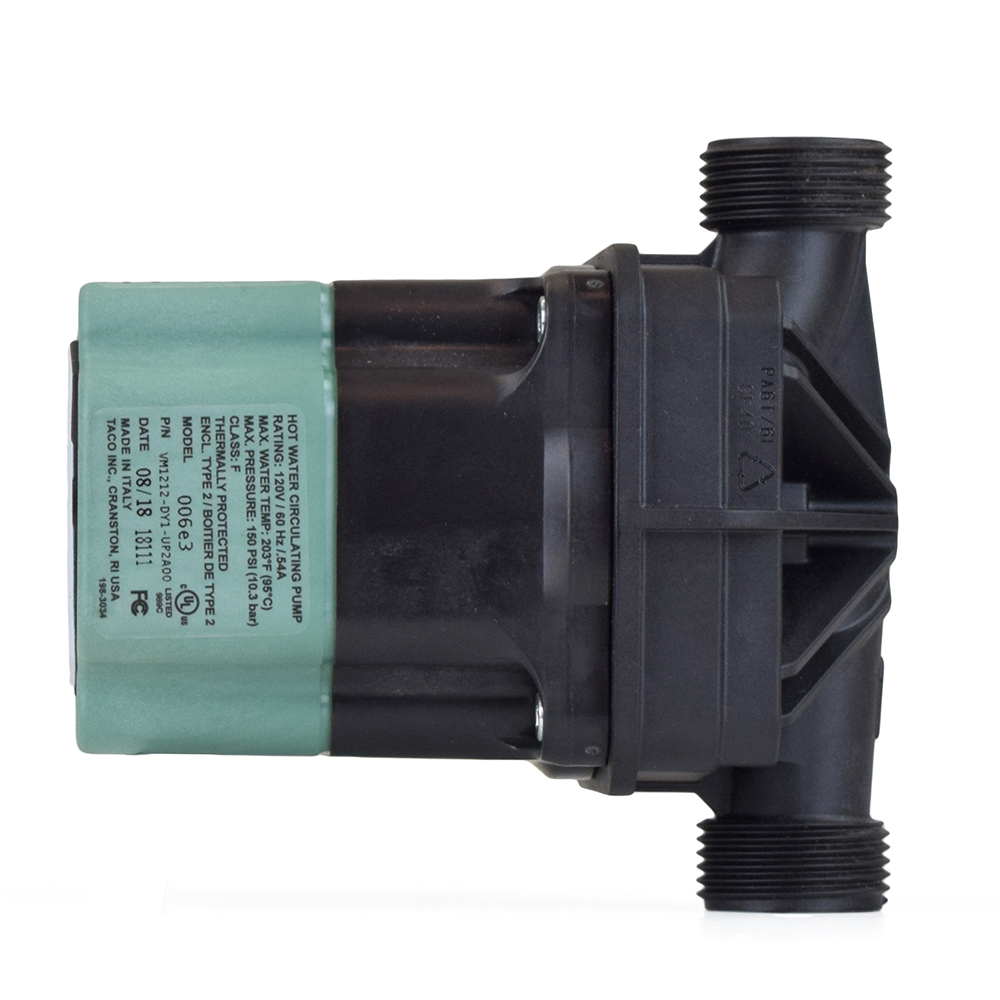

The 006e3 ECM High-Efficiency Hot Water Circulation Pump cheap

Description

NOTE: 1″ NPT Union Connection w/ optional 1/2″ & 3/4″ fitting sold separately NOTE: Not suitable for chilled water
Cross-References:

• Taco 003 & 006
• Grundfos UP15-18, UP 15-10, UP 10-16
• Armstrong Astro 225BS, Astro 225SSU, Astro 220SSU
• and many others

Features:

• 3 Speed settings – low, medium and high (003 and 006 performance point references)
• High-efficiency ECM motor uses up to 85% less electricity
• SureStart feature allows the pump run dry during air purge
• Double insulated – no ground wire required
• LED mode indicator for easy diagnostics
• Equipped with a composite casing
• Acceptable for use with water or maximum of 50% water/glycol solution in closed hydronic systems
• cUL Listed; NSF 61 & 372 Certified

Technical Specifications:

• Circulator Pump Type: 3-Speed
• Material: Composite
• Connection: 1″ Union
• Electrical: 120V, 60 Hz, 1-Phase
• Max. Shut-Off Head: 13 ft
• Max. Flow: 11 GPM
• Max Operating Pressure: 150 PSI
• Min/Max Water Temp: 36° F / 203° F
• Max Operating Power: 44W
• Max Amp Draw: 0.54A
