TG100-1/8″ Drill Chuck Collet Clamping Range 0.125″-0.105″ cheap

Description

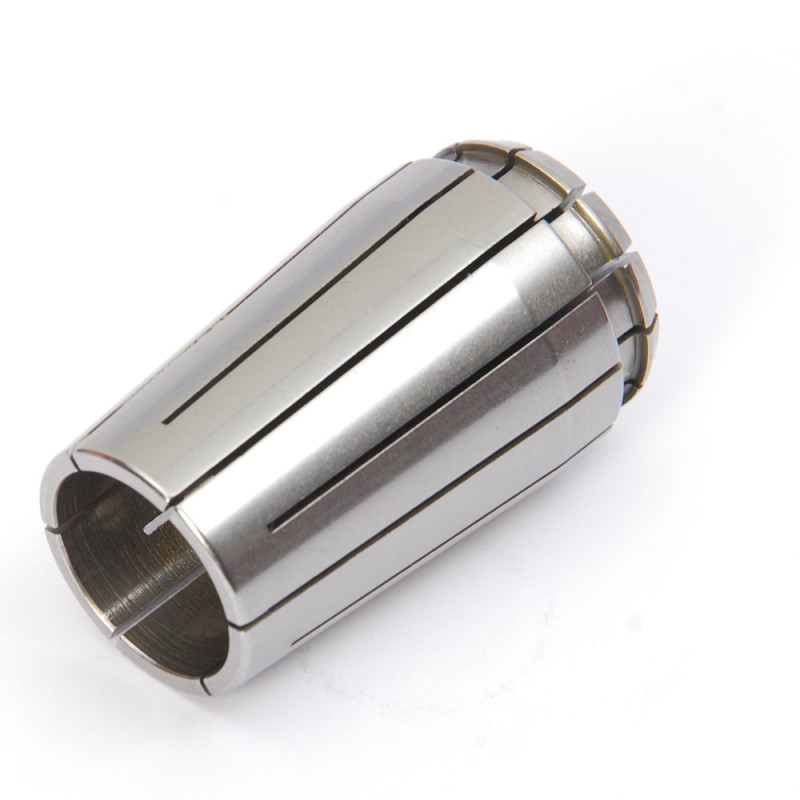

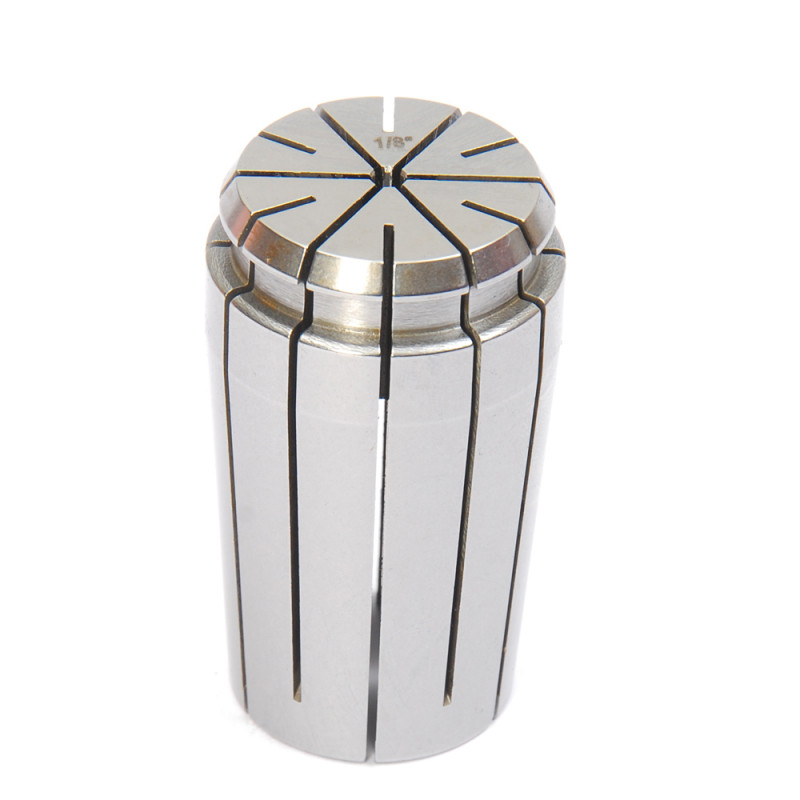

TG100-1/8″ Drill Chuck Collet Clamping Range 0.125″-0.105″

 High Precision TG100 Collets, also known as spring collets, is mounted on a drill / milling machine, drilling and milling chuck, its function is to clamp drill cutter or knife. TG100 collets is currently the most used. Its stable performance, high accuracy by the majority of manufacturers trust.

Chong De mainly manufactures Tooling System, CNC Machines Parts and machine accessories belong to the line of machine & Tools.

◎ Hole Diameter:  1/8″, overall length is  2.381”

◎ Clamping Range:    0.125″-0.105″

◎ Material: 42Cr Mo

◎ Hardness : HRC 44-48

◎  Good elasticity, high precision, Run-Out Tolerance ≤ 0.00059″

* Cryogenic treatment

1. -348.8℉ long cryogenic, nearly all of the residual  austenite into martensite;

2. Carbide precipitation of Nanoscale particles, increasing the hardness and toughness;

3. Reducing residual stresses;

4. Wear resistance significantly improved.

* Thermal aging processing Removal of residual internal stress by super-long heat aging.

This collet size is true fractional size, not a metric converting size and the surface on this collet has been specially treated to increase its tool life.  Runout is 0.00059″.

All our collets are 100% tested, and hence ensured of superior quality.
