Description

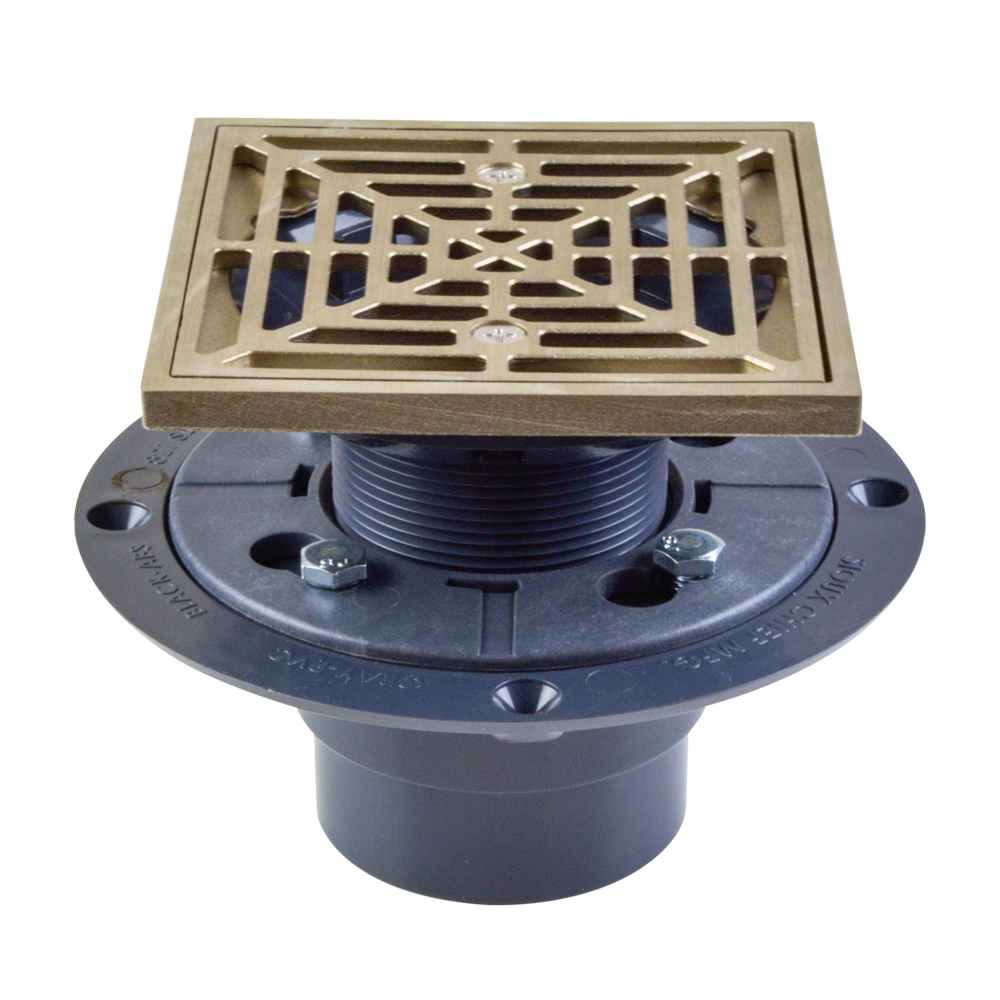

Sioux Chief 821 series, USA-made drain for showers using a shower flashing/liner (such as Oatey PVC liner or similar). Solid bronze-nickel alloy square screw-on strainer and rim. Adjustable height top strainer easily accommodates various mortar bed thicknesses. Connects to a standard 2″ PVC drain pipe or inside a 3″ Sch 40 PVC pipe. Optional test plug (part# 821-TP, not required, used only if testing with water for leaks) is sold separately.
Features:
- Designed for use with shower pan flashing
- Beveled body simplifies access during installation
- Compatible with 821-200P test plug (not included)
- Designed in accordance with ASME 112.18.2-2005 / CSA B125.2-05
- cUPC listed
- Made in the USA
Technical Specifications:
- Connection: 2″ PVC Hub (connects over Sch 40/80 PVC pipe) x 3″ Inside Pipe Fit (connects inside 3″ Sch 40 PVC pipe)

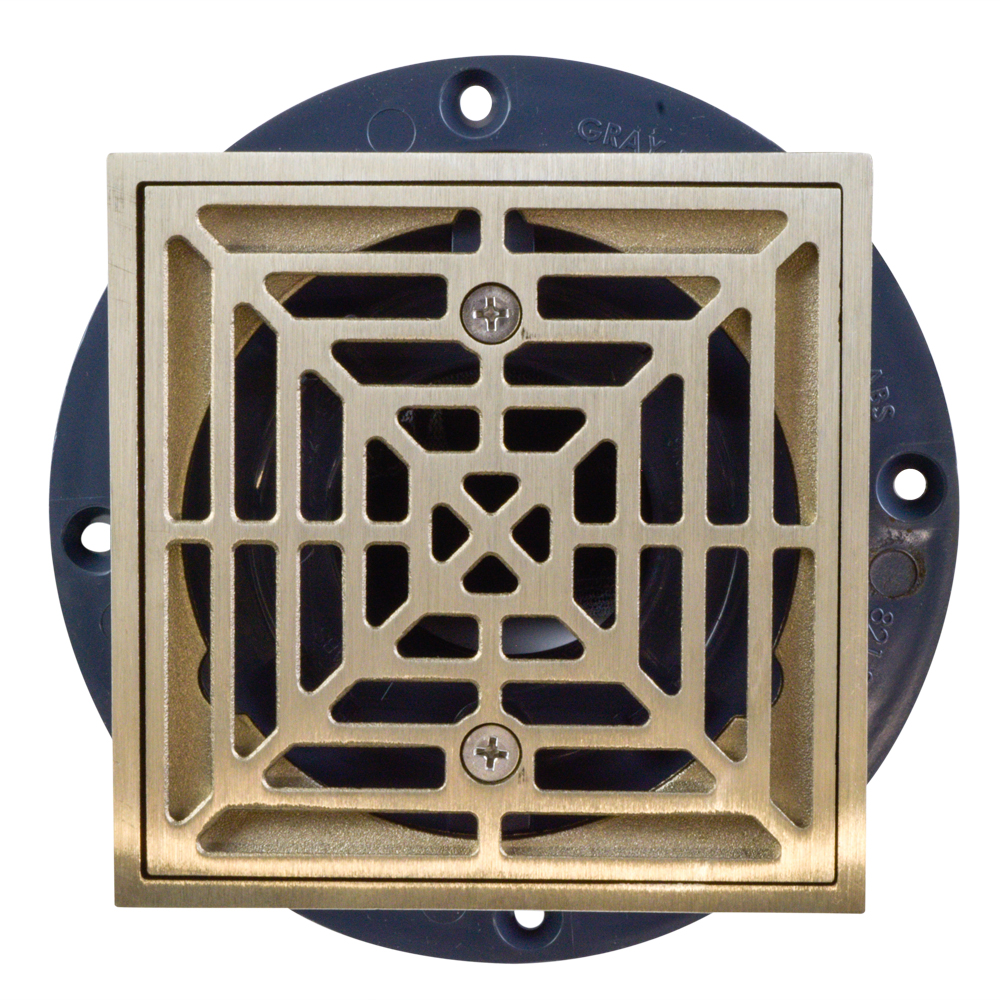

- Top Strainer: 4-1/2″ x 4-1/2″ (4″ x 4″ without metal rim), screw-on type (2-5/8″ on-center holes), 3/16″ thick, brushed bronze finish
- Strainer Load Rating: 1,000 lbs
- Strainer Flow Capacity: 7 GPM
- Materials: Base Adapter – PVC; Head Adapter – ABS; Clamping Collar – Reinforced PolyPropylene; Strainer & Rim – Nickel-Bronze Alloy
- Overall Height: 3-15/16″ – 5-15/16″ (2″ Adjustable)
