Description
Sloan 3012636 – Royal 186 Manual Flushometer
1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal Exposed Manual Urinal Flushometer.
Features
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Non-Hold-Open Handle, Fixed Metering Bypass and No External
- Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- 3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop w/ Free Spinning Vandal Resistant Stop Cap
Specifications
- Flush Volume: 1.0 gpf (3.8 Lpf)
- Finish: Polished Chrome (CP)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top Spud

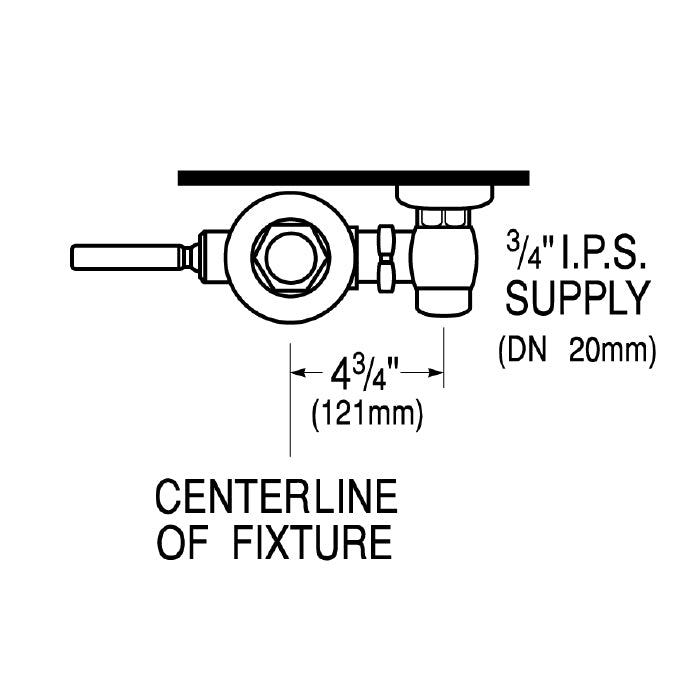

- Rough-In Dimension: 11-1/2″ (292mm)
- Spud Coupling: 3/4″ (19mm)
- Supply Pipe:3/4″ (19mm)
PTB1L00613
