ProFlex Termination Plate w/ 1″ MIP (3/4″ FIP) x 1″ CSST Male Adapter Fitting flash sale

Description

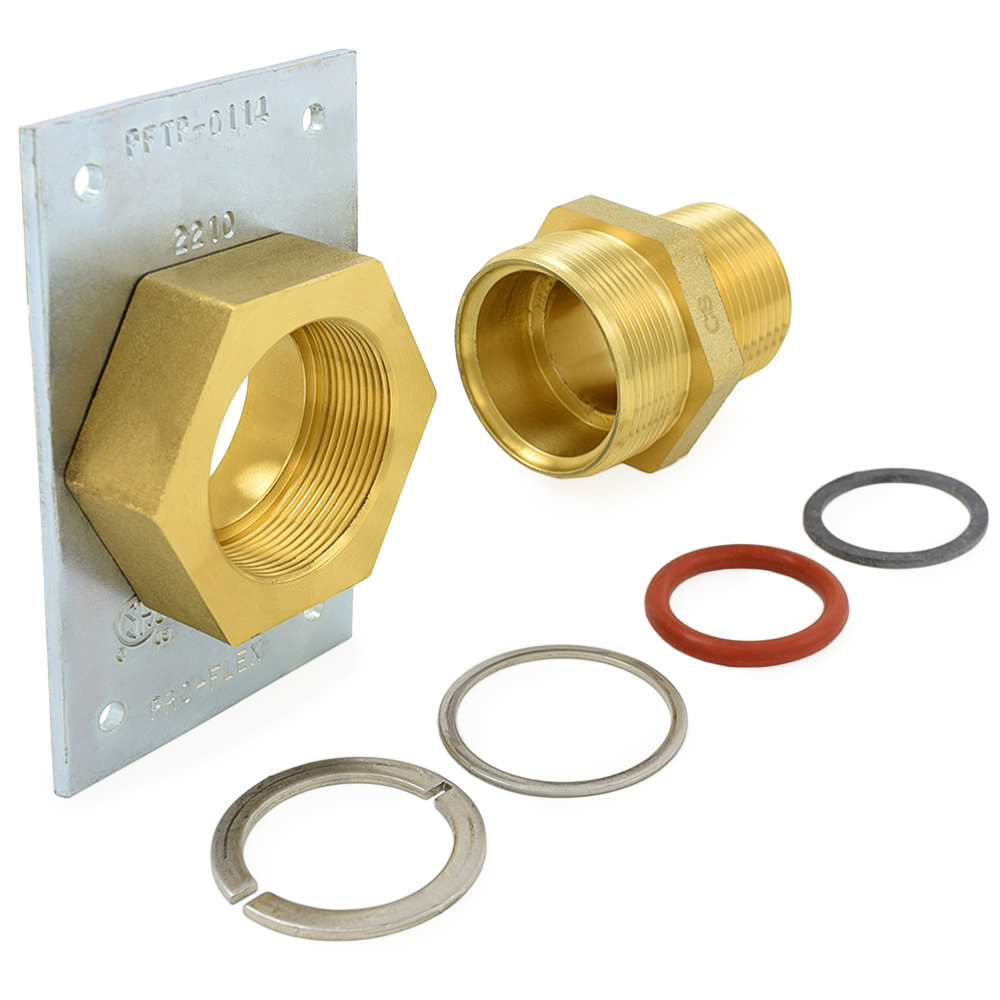

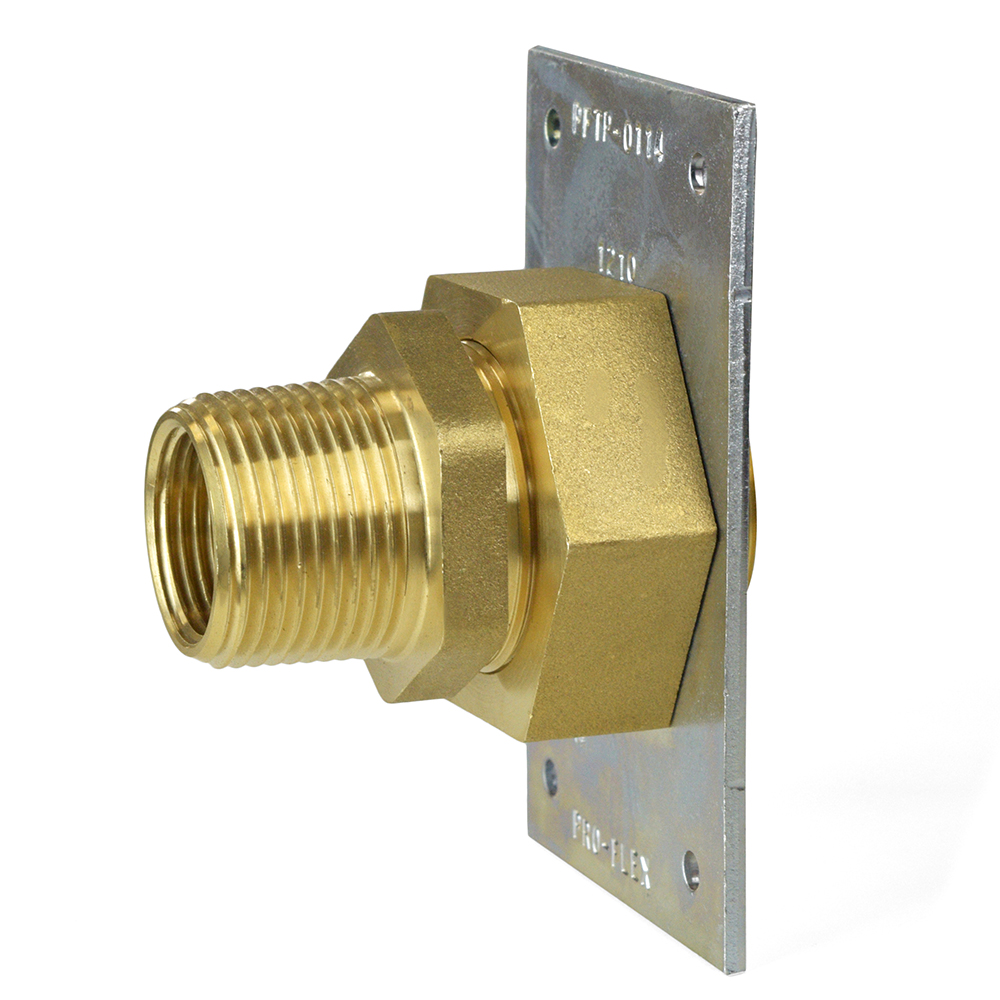

This plate facilitates termination of a 1″ CSST gas line and provides means of transition to 1″ female threaded (FIP) gas valve, fitting or appliance connector. Inner 3/4″ FIP connection in the fitting also allows connecting 3/8″ MIP pipe nipple or fitting.
Technical Specifications:

• Connections: 1″ MIP male threaded (3/4″ FIP female threaded inside) x 1″ CSST
• Plate dimensions: 2.5″ x 4″
• Fitting materials: C36000 brass body, 304 st. steel retainer & slide rings, silicone O-ring, proprietary high-temperature gasket
• Plate material: 1018 low-carbon steel
• Max. operating pressure: 5 psi
• CSA listed
