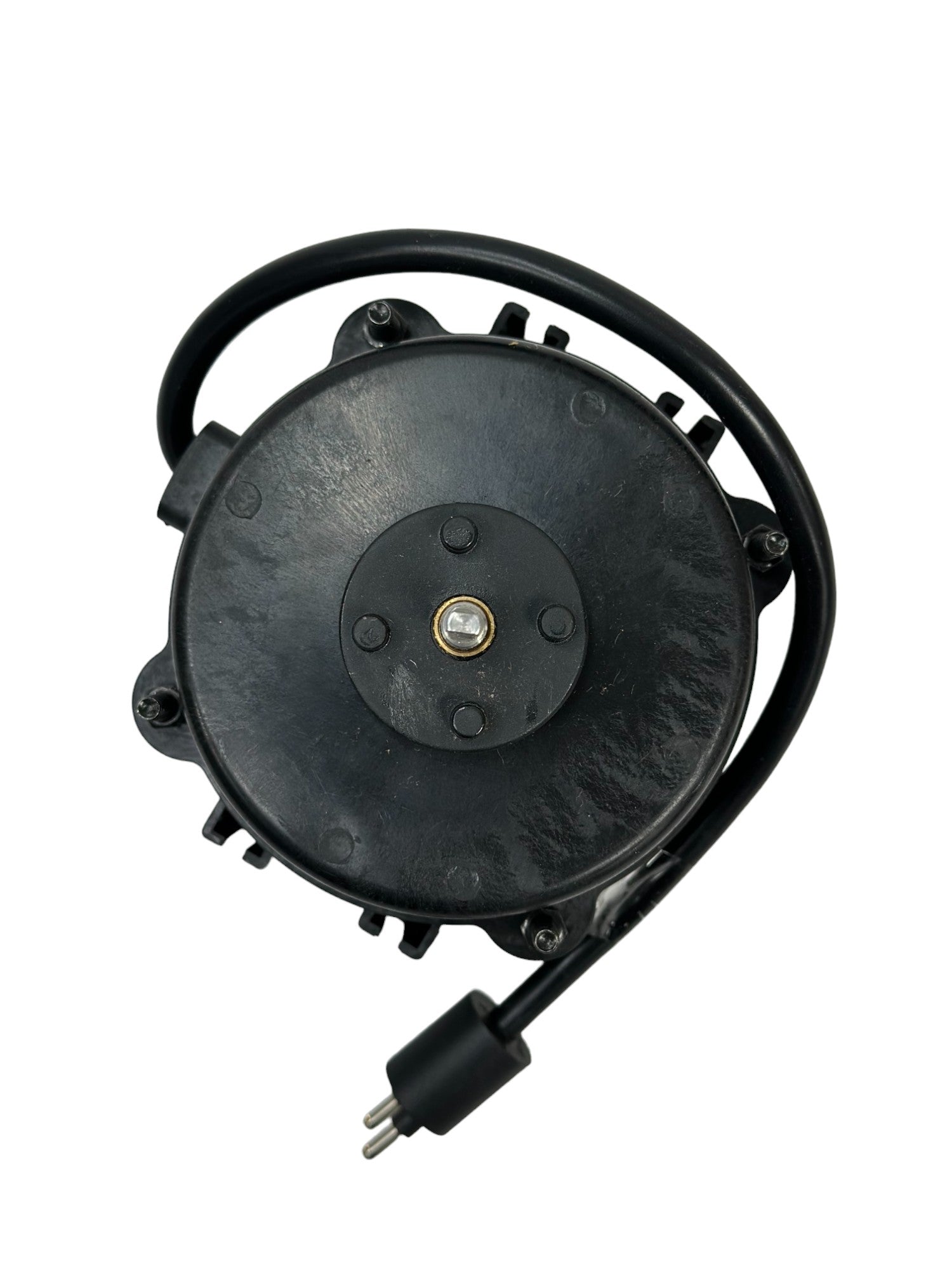

Packard – 91636 EC Motor 6-16 Watts, 120-230 Volts, 1550RPM hot on sale

Description

• Direct Drop-in Replacement for Shaded Pole & PSC Motors
• Solid State Commutated Technology
• Unit Bearing Construction
• Drilled & Tapped Holes in Rear for All Mountings
• 100% Performance Tested
• Includes Lyall Plug
• Rotation is Determined by Viewing Opposite Shaft End
• Peak Efficiencies in Excess of 80% Means Lower Operating Temperatures and Extended Motor Life
• Supports 6″, 7″, 8″, 9″ & 10″ Diameter Fan Blades
• Constant 1550 RPM Operating Speed is Identical on Either 50 or 60 Hertz
• Constant 1550 RPM Regardless of Fluctuations in Voltage
• Made in the USA

SPECIFICATIONS

Motor Voltage 120-230
Amps 0.35-0.22
Brand Packard
Bearings Ball
Country of Origin USA
Diameter (In.) 3.3
Enclosure Open
H.P. Less than 1/10
Hertz 50/60
Insulation Class B
Length Less Shaft (In.) 3-1/8
Material Cast Iron
Motor Rotation CWSE
Motor Type ECM
Mounting Option Double Foot Pads
Overload Protection Automatic
Phase Single
RPM 1550
Shaft Dimensions (In.) Diameter x Length 1/4 x 1/2 Threaded
Speeds 1
UPC 840899122847
Voltage 120 – 230
Watts 6-16

Direct replacement for:

GE – 5312
GE – 5412
GE – 5812
Mars – 05312
Mars – 05412
Mars – 05812
Mars – 15312
Mars – 15412
Mars – 15812
Nidec – EC5412
US Motors – EC5412
