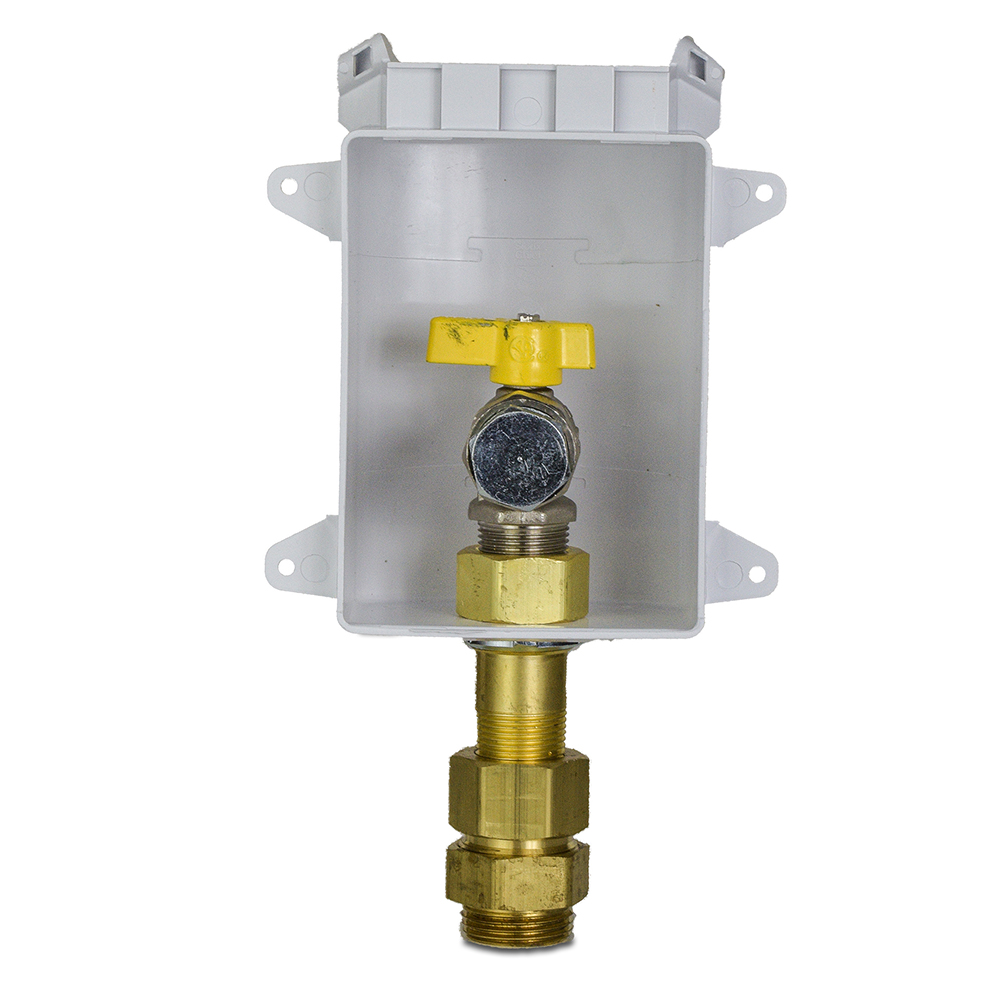

Description
Ox Box gas outlet box provides simple and aesthetic gas termination and shut-off solution for 3/4″ ProFlex CSST pipe.
Technical Specifications:
- Gas Valve Connections: 3/4″ FIP female threaded x 3/4″ CSST
- Max. operating pressure: 5 psi
- Max. testing pressure: 10 psi
- Box materials: ABS box & frame, galvanized bracket, steel screws
- Outlet box dimensions: 4″ W x 3-1/2″ D x 5-1/2″ H
- Frame dimensions: 5-3/4″ W x 7-1/4″ H; Opening: 3-5/8″ W x 5-1/8″ H
- Certifications & approvals: ANSI Z21.15, CSA
