Description

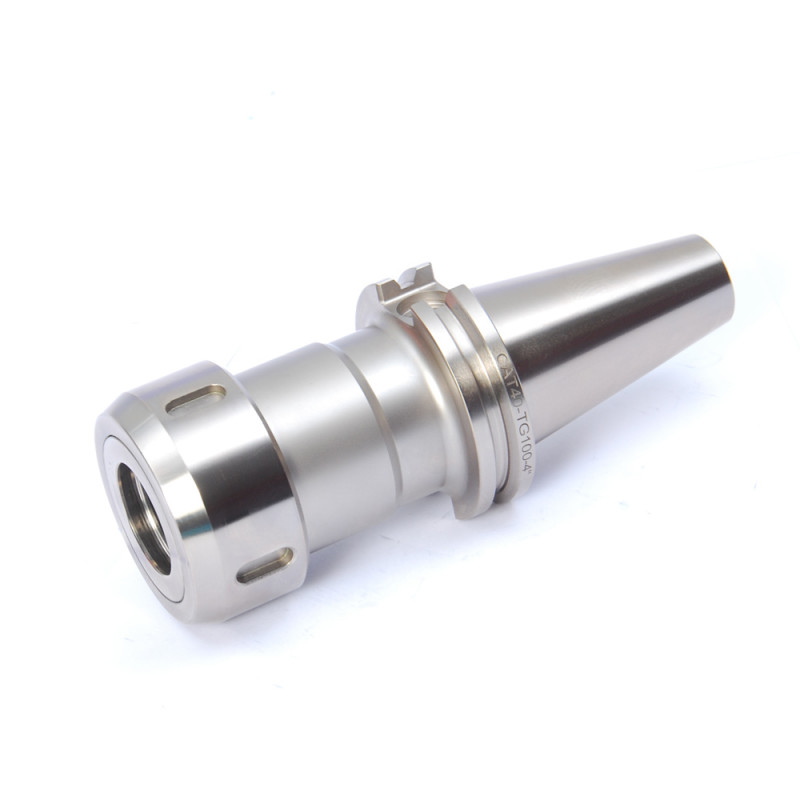

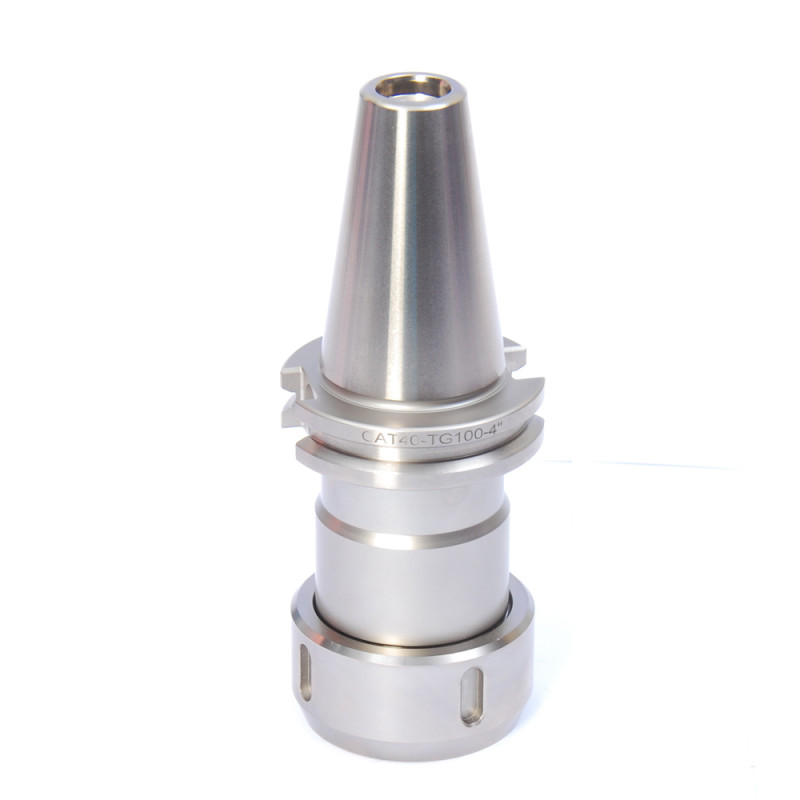

CAT40-TG100-4 ” Collet Chuck CNC Machine Tool Holder
CNC Milling Collet Chuck Arbor CAT40-TG100, TG100 collet clamping tool holder of various sizes , high speed and
high precision machining. Mechanical spindle and cutting tools and other accessories. High Precision CAT
shank Tool Holder.
CAT Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple,
popular spindle shank connection standard, mainly CAT30 CAT40 CAT50… Etc.. Mold industry, and high-speed
engraving machine, used more.
Material: 20CrMnTi
Taper precision ≤ AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany.
Surface:Nickel coating and polishing nickel coating.
ChongDe is a manufacture in R&D, production, sales and services with ISO9001 certificate. The main products
are precision tool holder, clamping collet, pull stud, nut, spanner and other machine tool accessories with the
standards of ISO, DIN, ANSI/ASME, JIS and local GB, etc.
Attaching importance to the reserch and products, we employs many experienced and skilled technicians, so
that precision machining can be made according to samples or drawings.
Products advantages
1. The unique design of nut: high speed cutting, reduce drag and cutting noise and improve work efficiency.2. General purpose high speed, high precision machining, cutting effect is good.
3. Surface “environment protection”, special coating surface treatment, improve the hardness and endurance of the surface, cleaness better, accuracy stable, surface
4. higher system accuracy.
5. higher system stiffness.
Anti-rust, Anti-corrosion, Durability better◆ Coating adhesion strong, enhance hardness, and anti-rust better in different surroundings, such as acid, alkali, ammonia, salt etc.◆ Overall nickel coating, including inside and outside cone, even if you do not take any anti-rust actions, it will not rust either,don’t influence processing precision and spindle.◆ Improve cleanness, precision more stable, surface more smooth, feel more comfortable and appearance nicer.
Cryogenic treatment◆ -384.8℉ long cryogenic, nearly all of the residual austenite into martensite.◆ Carbide precipitation of nanoscale particles, increasing the hardness and toughness.◆ Reducing residual stresses.◆ Wear resistance significantly improved.Thermal aging processing◆ long stereotyped thermal limitation removal of grinding residual stress.
Brand | chongde | TIR | ≤0.0001″ |
SKU | CD090401-4010102 | Surface | Nickel coating |
Taper Size | CAT40 | Projection (L1) | 4″ |
Collet Size | TG100 | Overall Length (L) | 6-11/16″ |
Material | 20CrMnTi | Collet Nut Diameter (d1) | 2.36″ |
Model Number | CAT40-TG100-4″ | Net Weight | 3.32 LB |
Dimensions | 2.9″ x 2.9″ x 6.7” | Gross Weight | 3.98 LB |
