LF4855038 – ProPEX LF Brass Angle Stop Valve (full port), 1/2″ PEX – E sale

Description

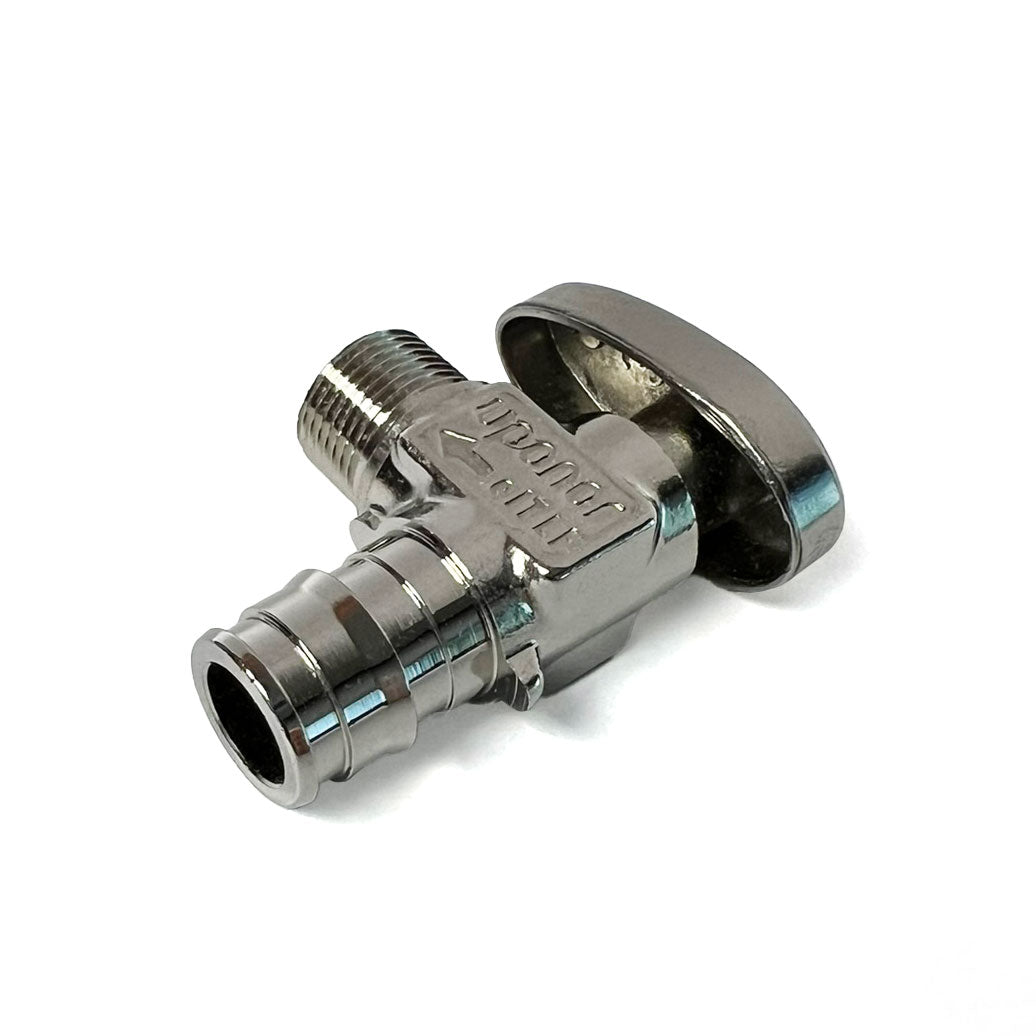

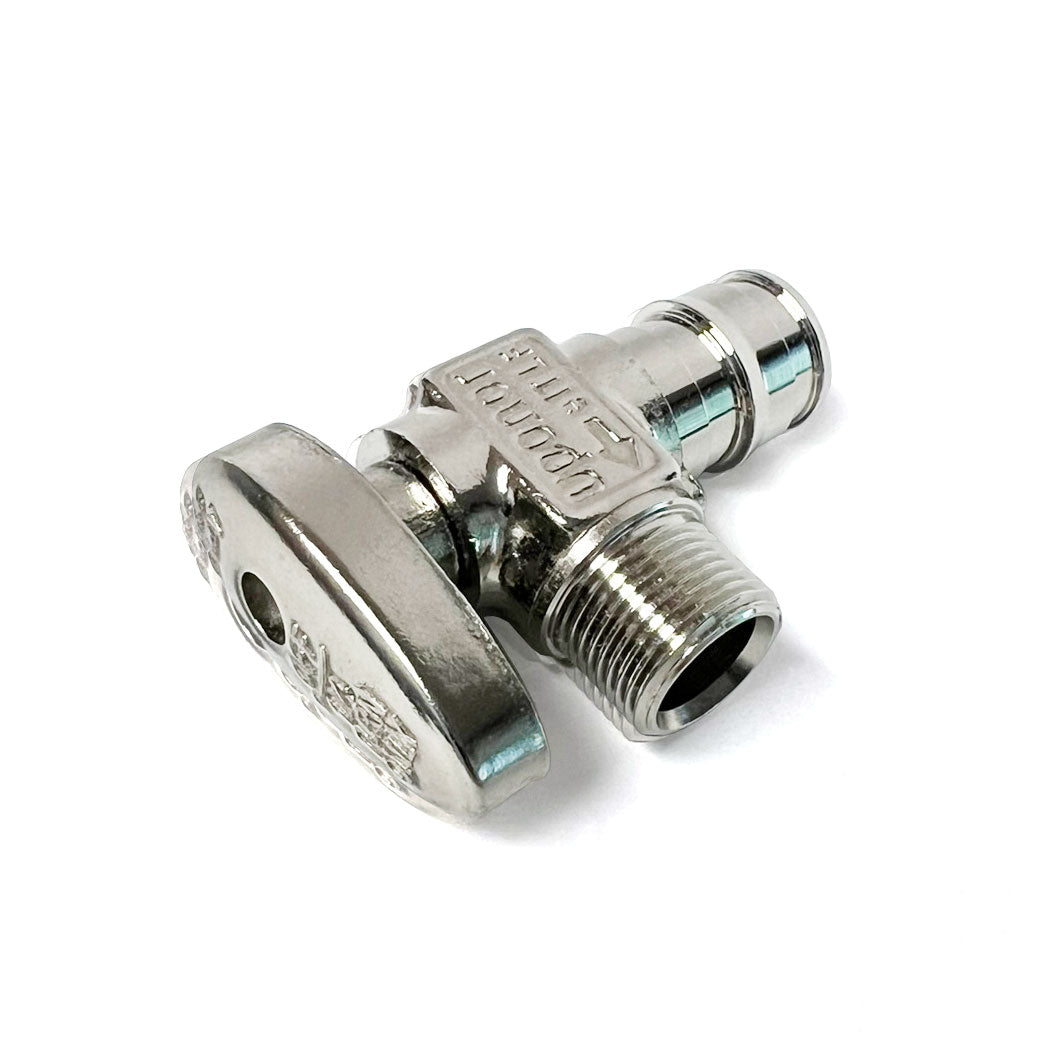

Uponor LF5855038 – ProPEX LF Brass Angle Stop Valve – Full Port – 1/2″ PEX 3/8″ OD Comp

ProPEX Lead-free Full-port Brass Stop Valve is quarter-turn and chrome-plated. Angle Stop Valve is used for point-of-use shutoff at the fixture.

Features

• Replaces Uponor LF4855038
• This stop valve is used for point-of-use shut-off at the fixture. This stop valve connects 1/2″ AquaPEX tubing to 3/8″ O.D. risers.
• Material: Chrome-plated, Lead-free brass
• End Type 1: ProPEX 1/2″
• End Type 1: UNEF 3/8″
• Temperature / Pressure Ratings: 194 degrees F at 145 psi
• Install the stop valve according to your local building code. Do not dismantle. Refer to the AquaPEX Professional Plumbing Installation Handbook or Uponor Radiant Floor Installation Handbook for additional information.
• Standards: CSA B137.5 and B125; ASTM F877; ASTM F1960; ASME A112.18.1
• Codes: IPC; UPC; NSPC; NPC of Canada
• Listings: ANSI/NSF 14- and 61-certified; U.P. Code, Annex G
