Description

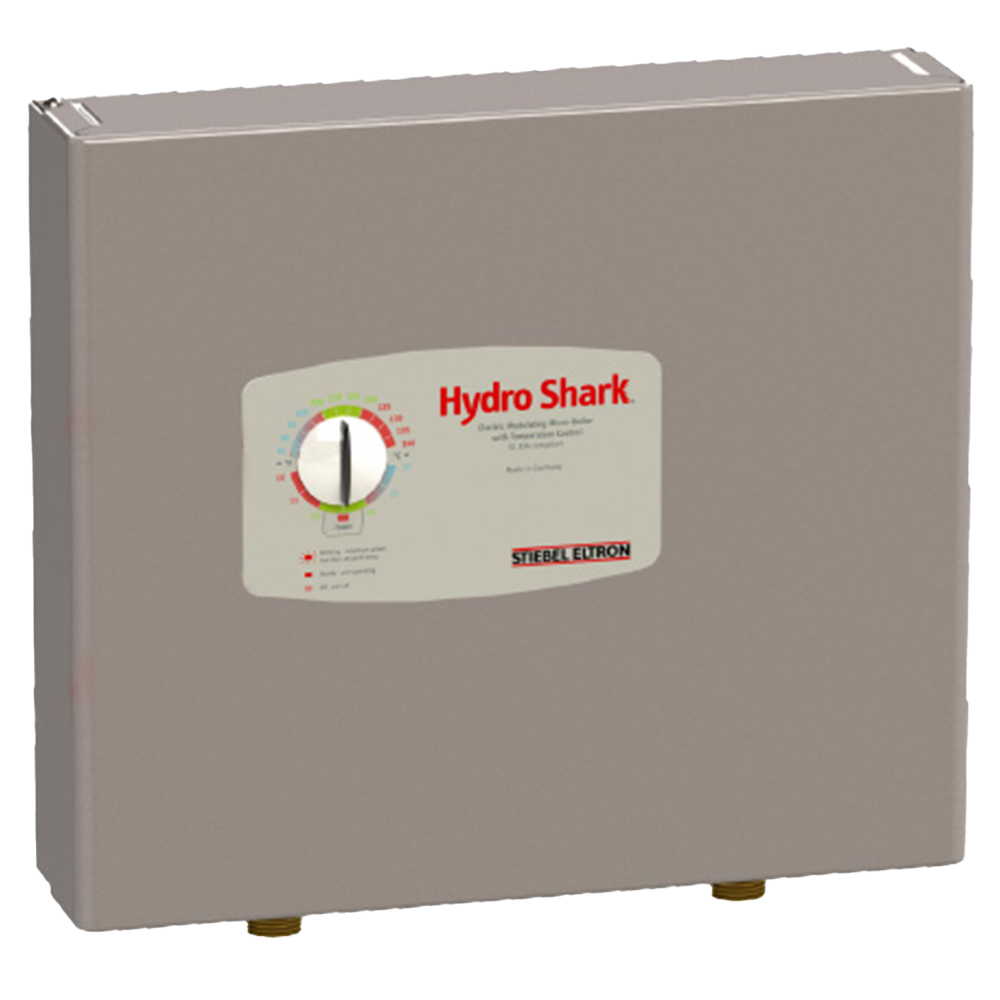

Hydro Shark electric hot water boiler by Stiebel Eltron is specifically designed for use in single zone or multi-zone PEX radiant floor heating applications.
Features:
- Designed for PEX radiant floor heat systems
- Flow switch included
- 100% efficiency – no gas chimeny/vent pipe needed, zero emissions and no carbon monoxide
- Ultra-lightweight wall-hung design with minimal footprint

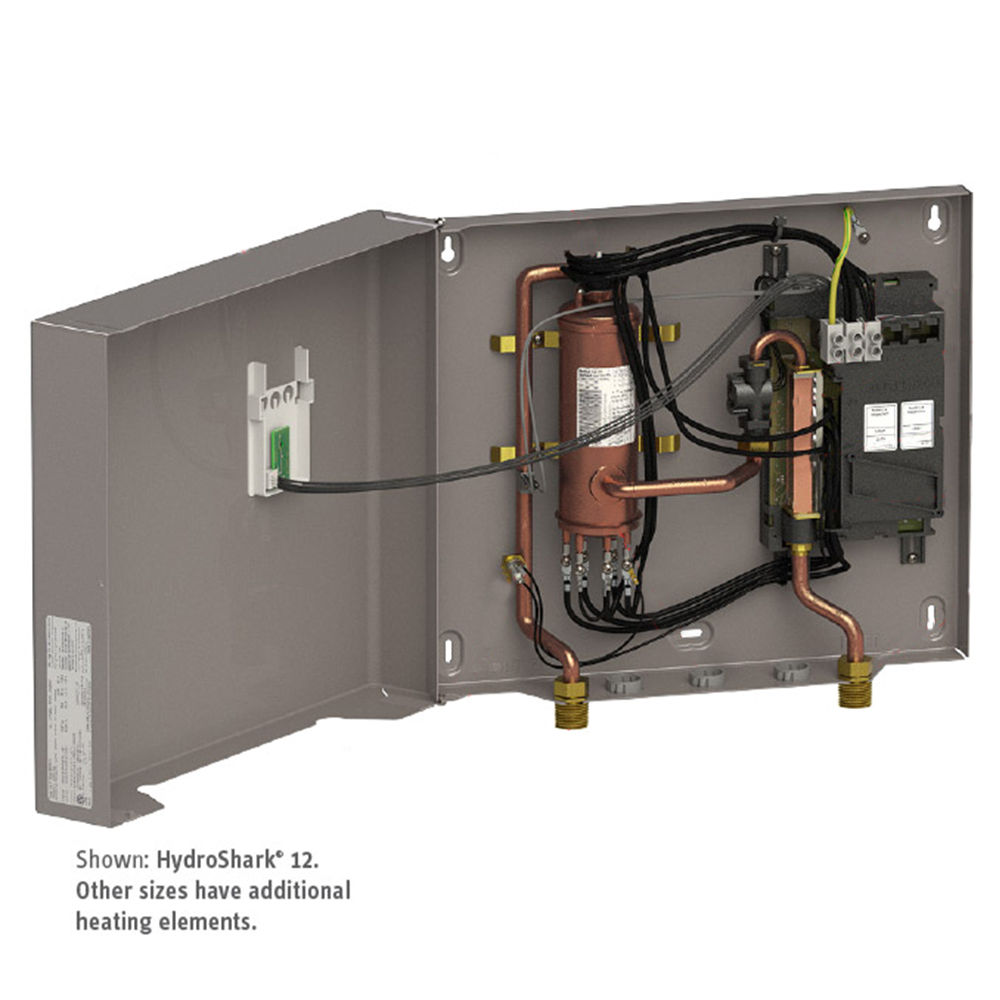

- Solid copper heating vessel
Technical Specifications:
- Boiler Net BTU Rating: 98,977 BTU
- Boiler Size (Watts): 28,800W
- Voltage: 240VAC, 1-Phase, 60 Hz
- Amp Draw (Max): 120A
- Suggested Double Pole Breaker Size: 3 x 50A
- Recommended Copper Wire Size: 3 x 6 AWG
- Plumbing Connections: 3/4″ Male NPT Supply & Return
- Water Temperature Heating Range: 86°F – 140°F (adjustable)
- Max Operating Pressure: 18 psi
- Internal Water Volume (Tank): 0.39 Gal
- Dimensions: 16.62″ Wide x 14.5″ High x 4″ Deep
- Weight: 15.9 lbs
Warranty:
3-year boiler warranty, 7-year leakage warranty.
