Description

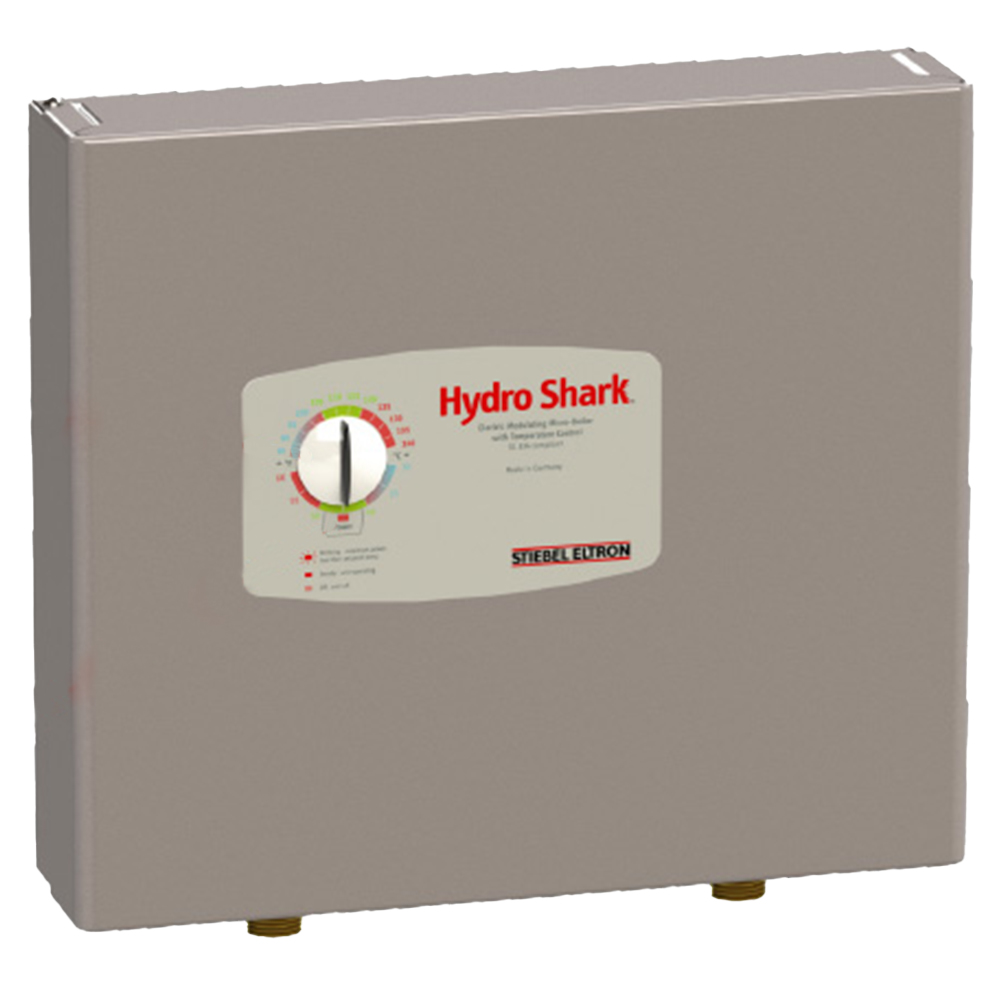

Hydro Shark electric hot water boiler by Stiebel Eltron is specifically designed for use in single zone or multi-zone PEX radiant floor heating applications.
Cross-References:
- Argo: AT244610C
- Burnham: EB-24
- Electro Industries: EB-S-23 & EB-S-27
- Thermolec: B-23U FFB-H
Features:
- Designed for PEX radiant floor heat systems
- Flow switch included
- 100% efficiency – no gas chimeny/vent pipe needed, zero emissions and no carbon monoxide
- Ultra-lightweight wall-hung design with minimal footprint
- Solid copper heating vessel
Technical Specifications:
- Boiler Net BTU Rating: 81,912 BTU
- Boiler Size (Watts): 24,000W
- Voltage: 240VAC, 1-Phase, 60 Hz
- Amp Draw (Max): 100A
- Suggested Double Pole Breaker Size: 2 x 70A
- Recommended Copper Wire Size: 2 x 4 AWG

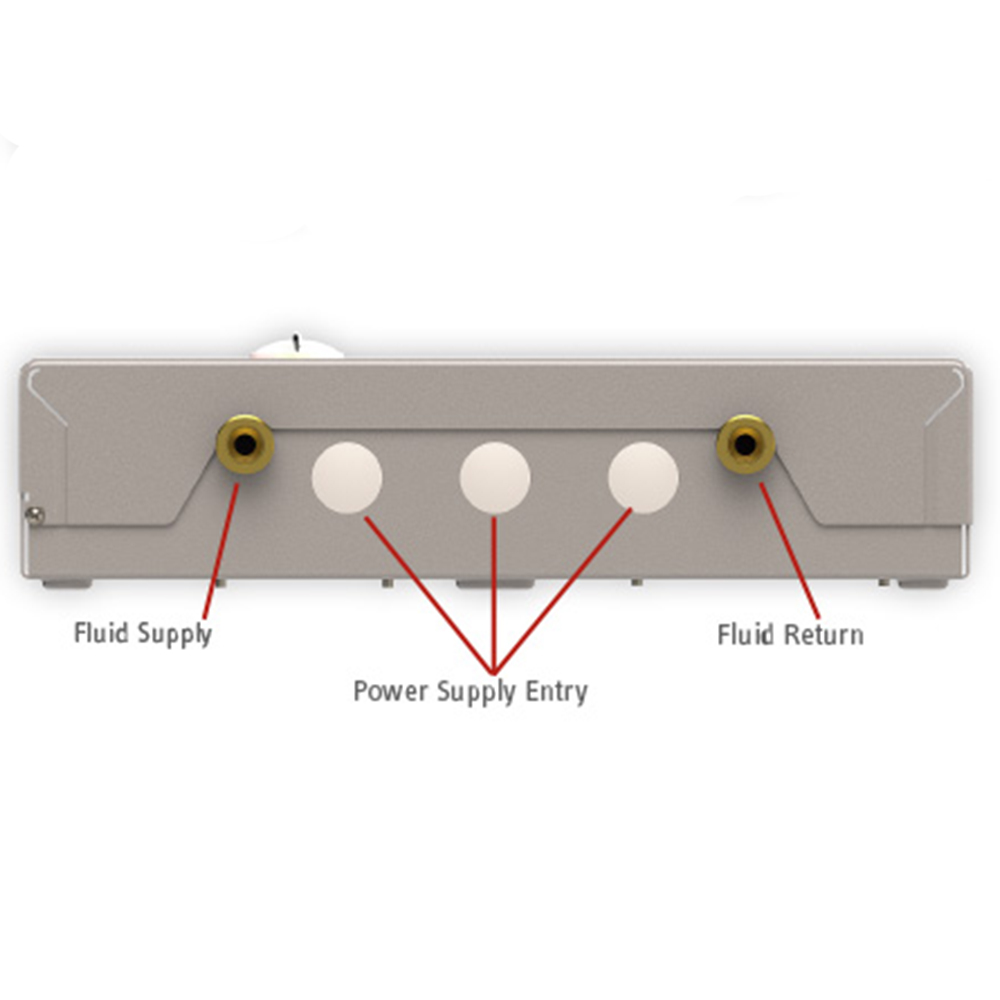

- Plumbing Connections: 3/4″ Male NPT Supply & Return
- Water Temperature Heating Range: 86°F – 140°F (adjustable)
- Max Operating Pressure: 18 psi
- Internal Water Volume (Tank): 0.26 Gal
- Dimensions: 16.62″ Wide x 14.5″ High x 4″ Deep
- Weight: 14.4 lbs
Warranty:
3-year boiler warranty, 7-year leakage warranty.
