Description
⒈ Material: 65Mn.
⒉ Hardness: clamping part HRC 55~60 elastic part HRC 40~45
⒊ This unit is applicable to all sorts of milling machines, which spindle taper hole is R8, such assuch as X6325,X5325 etc.
4. Hole size 25/32′

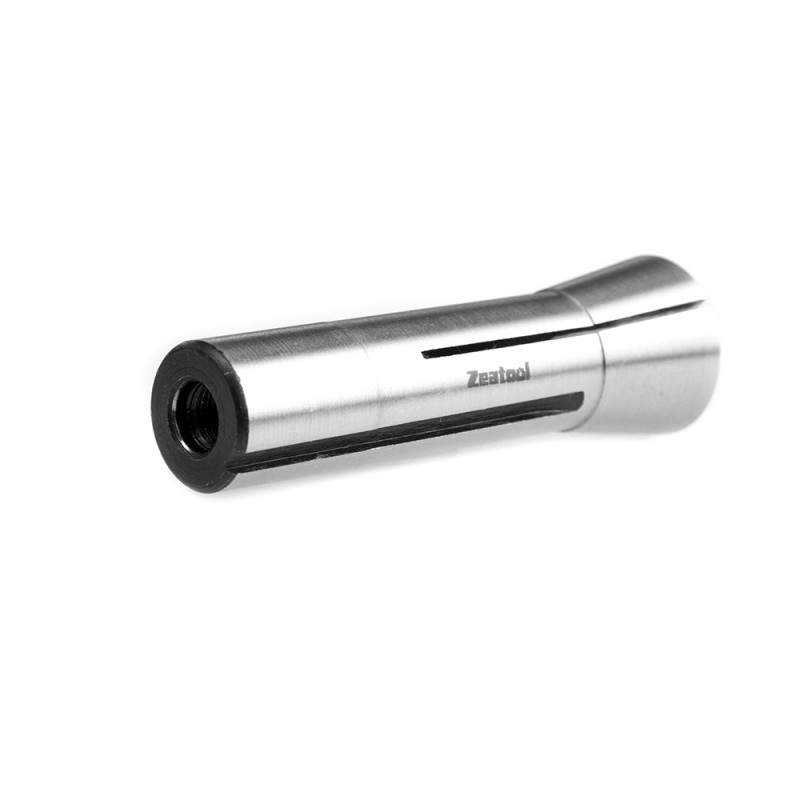

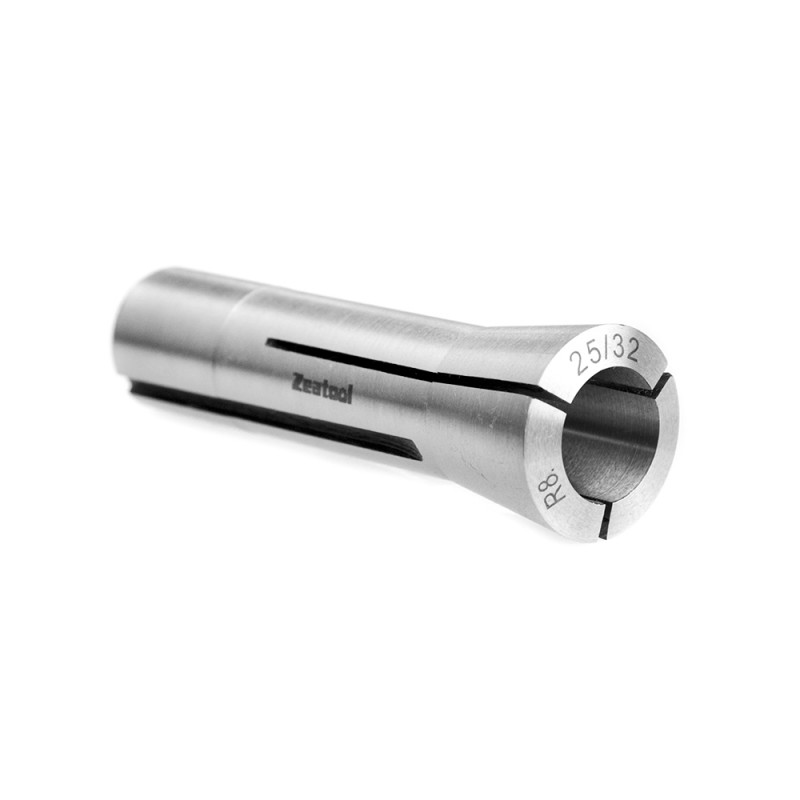

R8 Collets | |
Collet Style | Round |
Collet Size | 25/32” |
TIR (INCH) | 0.0006″ |
Collet Material | 65Mn |
Drawbar Thread Size (B) | 7/16″-20 |
Overall Length (L) | 4.0″ (101.6mm) |
