SCALA2 is a fully integrated water booster pump providing perfect water pressure in up to 8 taps—even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market.
SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure.
| Phase | U [V] | f [Hz] | Power input P1 [W] | Power plug | Con type inlet | Con size inlet [inch] | Con type outlet | Con size outlet [inch] |
|---|
| SCALA2 3-45 | 1 | 208-230 | 60 | 550 | US plug 230V | NPT(M) | 1 | NPT(M) | 1 |
Features
- Perfect water pressure: Intelligent pump control adjusts operation automatically
- Low noise: 44 dB(A) in typical use
- Easy selection: One variant for all residential boosting needs
- Easy installation: Compact, all-in-one solution, plug-and-pump
- Easy to operate: User-friendly control panel
- Reliable operation: Dry-running protection, anti-cycling
- Long lifetime: Quality-tested to perfection, maintenance-free
- Highly efficient with ECM motor
- Self priming and suitable for both indoor and outdoor applications
Product nameSCALA2 3-45Product No.93013250EAN5715122954951Price
Technical
Rated flow13.2 US gpmMaximum flow20.3 US gpmRated head88.59 ftMaximum head147.6 ftPrimary shaft sealCarbon/CeramicApprovalscULusApprovals for drinking watercULus NSF372,cULus DW NSF61Curve toleranceISO9906:2012 3BModel2Max. pump speed5200 rpm
Materials
Pump housingComposite NORYL FE1630PW PPE+PS-GS30ImpellerComposite NORYL FE1630PW PPE+PS-GS30Material codeA
Installation
Range of ambient temperature32 .. 113 °FMaximum operating pressure145.04 psiMaximum permissible inlet pressure87 psiPipe connection standardANSI B1.20.1Type of inlet connectionNPT(M)Type of outlet connectionNPT(M)Size of suction port1 inchSize of outlet port1 inch
Liquid
Pumped liquidWaterLiquid temperature range32 .. 113 °FSelected liquid temperature68 °FDensity62.29 lb/ft³
Electrical data
Power input P1550 WRated power – P20.603 HPMain frequency60 HzRated voltage1 x 208-230 VMinimum current consumption0.01 AMaximum current consumption2.8 AEnclosure class (IEC 34-5)XXEnclosure type3Insulation class (IEC 85)FLength of power cable6.56 ftPower plugUS plug 230V
Controls
Type of connectorNEMA 6-15
Others

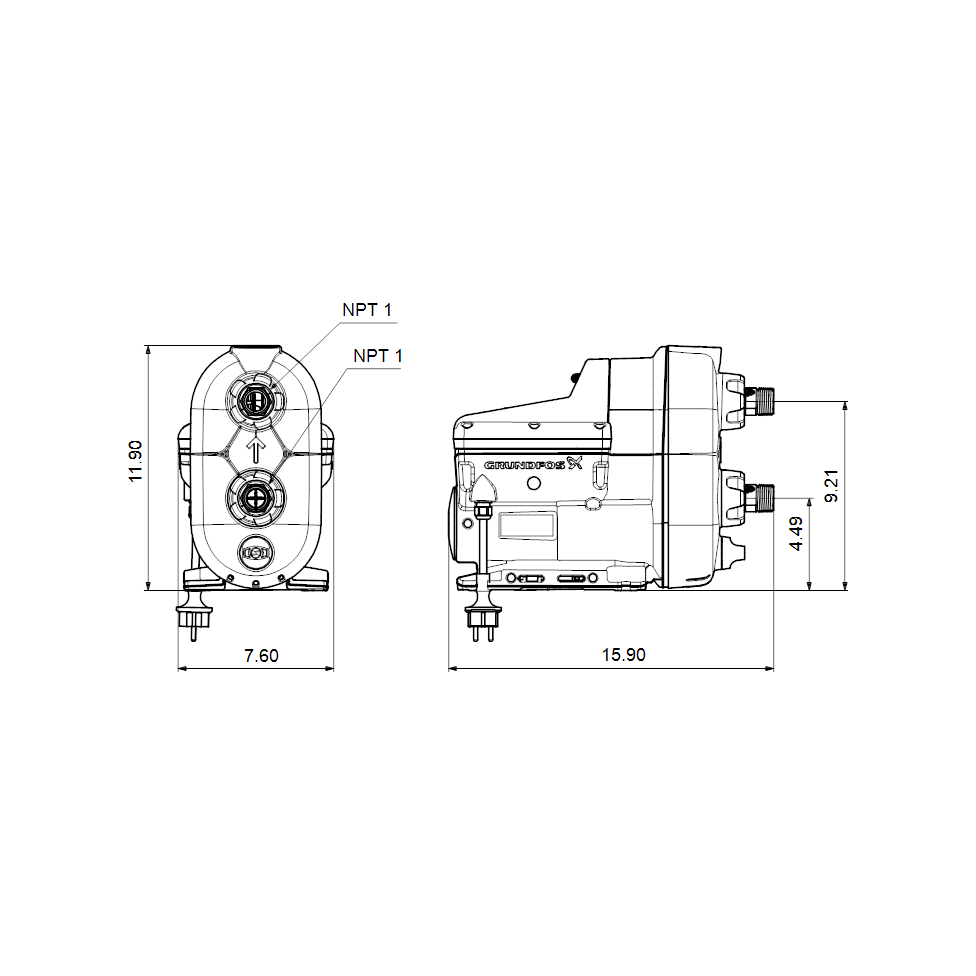

Net weight21.2 lbGross weight26.4 lbShipping volume1.52 ft³Sales regionUnited StatesStorage temperature range-40 .. 158 °FCountry of originRSCustom tariff no.8413.70.2040 SpecDimension
