Quick Guide
SCALA2 is an integrated, self-priming, compact water booster pump. It is designed for perfect pressure inside the home. It’s quiet, easy to install, and maintains consistent pressure in all taps at all times.
With the new GRUNDFOS SCALA2 water booster pump, perfect water pressure is finally available in an all-in-one unit. Now you can enjoy the luxury of a perfectly comfortable shower any time of day – even when your family is using the many other taps in your home, for instance in the bathroom, the kitchen and the garden. And the SCALA2 is so compact and quiet, you won’t even know it’s there.
SCALA2 comes equipped with intelligent pump control, which means that it automatically adjusts operation to deliver the water pressure you like. The integrated sensor detects if the inlet pressure varies or if there are several taps open and immediately tells the pump to boost the pressure. And it happens so fast that you won’t notice any change in your water pressure at all
93013251 SCALA2 3-45
1 Phase
115 V
60Hz
550 Power Input P1
Power Plug US Plug 115V
Features
- Intelligent pump control
- Water-cooled, permanent magnet motor
- Dry running protection
- Self-priming
- User friendly control panel
- Outdoor-ready
Product nameSCALA2 3-45Product No.93013251EAN5715122954968Price
Technical
Rated flow13.2 US gpmMaximum flow20.3 US gpmRated head88.59 ftMaximum head147.6 ftPrimary shaft sealCarbon/CeramicApprovalscULusApprovals for drinking watercULus NSF372,cULus DW NSF61Curve toleranceISO9906:2012 3BModel2Max. pump speed5200 rpm
Materials
Pump housingComposite NORYL FE1630PW PPE+PS-GS30ImpellerComposite NORYL FE1630PW PPE+PS-GS30Material codeA
Installation
Range of ambient temperature32 .. 113 °FMaximum operating pressure145.04 psiMaximum permissible inlet pressure87 psiPipe connection standardANSI B1.20.1Type of inlet connectionNPT(M)Type of outlet connectionNPT(M)Size of suction port1 inchSize of outlet port1 inch
Liquid
Pumped liquidWaterLiquid temperature range32 .. 113 °FSelected liquid temperature68 °FDensity62.29 lb/ft³
Electrical data
Power input P1550 WRated power – P20.603 HPMain frequency60 HzRated voltage1 x 115 VMinimum current consumption0.2 AMaximum current consumption4.9 AEnclosure class (IEC 34-5)XXEnclosure type3Insulation class (IEC 85)FLength of power cable6.56 ftPower plugUS plug 115V
Controls
Type of connectorType B (NEMA 5-15)
Others

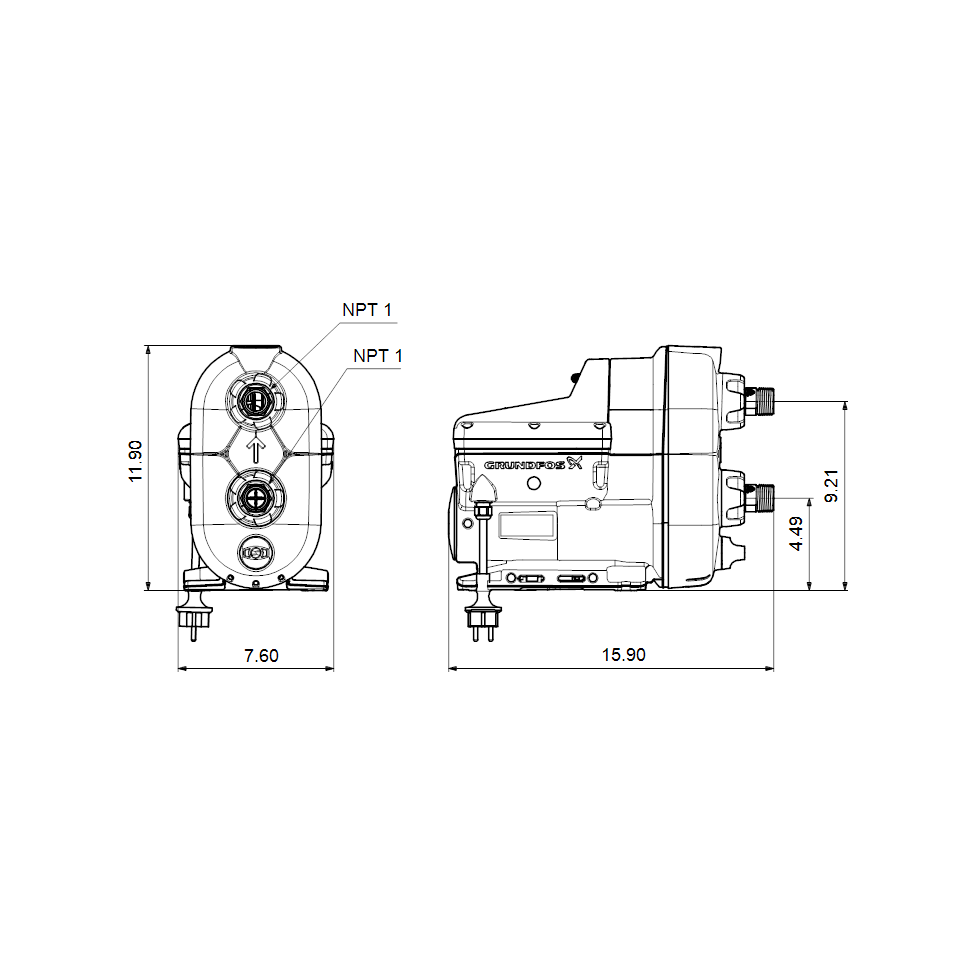

Net weight21.4 lbGross weight26.5 lbShipping volume1.52 ft³Sales regionUnited StatesStorage temperature range-40 .. 158 °FCountry of originRSCustom tariff no.8413.70.2040 SpecDimension
