Description

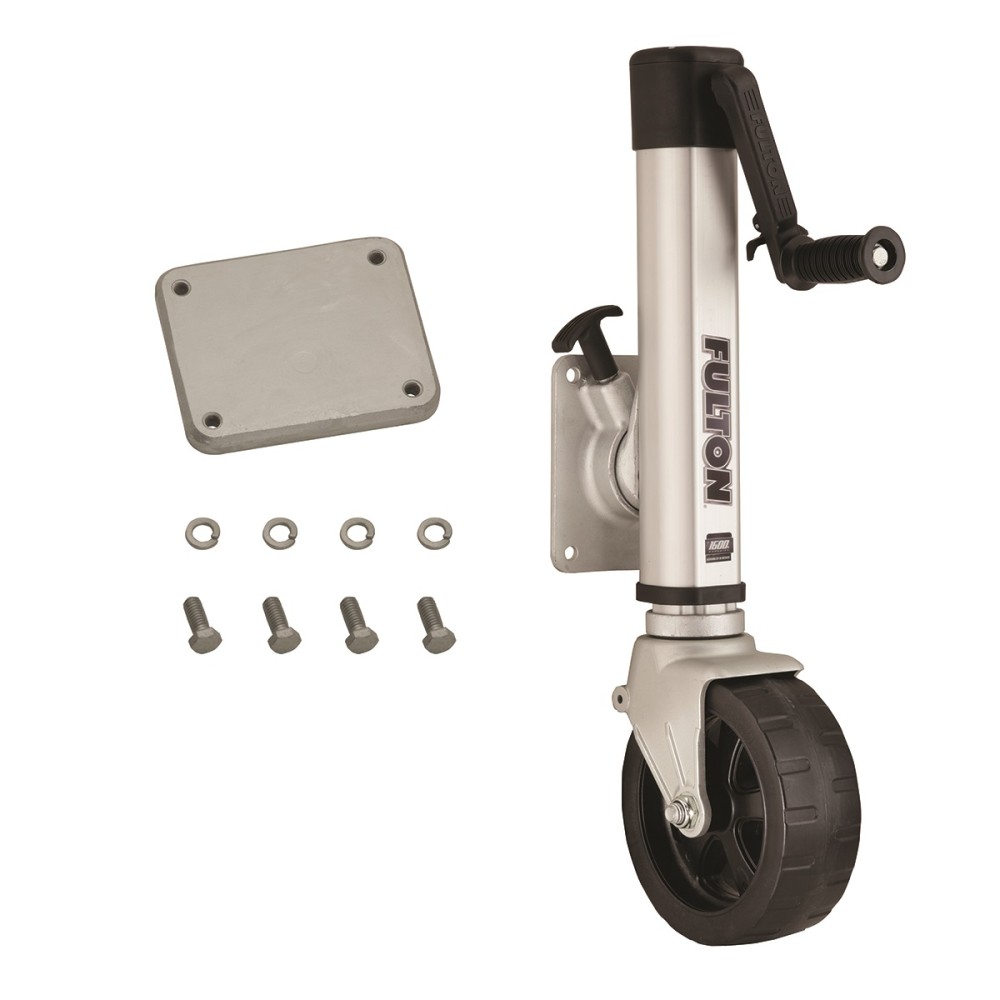

Fulton Marine and Recreational Trailer Jack (P9012-00 Weld-On Mount & Hardware Sold Separately)
Ideal for Torsion Axle Trailers – Mount 2″ Higher, Improved Castering Performance – Yoke/Wheel Swivel Independent of Inner Tube, 8″ Diameter Spoked Wheel
Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2″ pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3″ x 5″ trailer frame.
Specifications:
- Fits: 3″x3″, 3″x4″, and 3″x5″ trailer frames
- Lift Capacity: 1,500 lbs
- Retracted Bracket Height: 15.6″ from bracket to bottom
- Travel/Lift: 10″
- Extended Bracket Height: 25.6″
- Clearance: 10.4″ from bracket to top
- Wheel size: 8″ diameter
- Spring loaded Pull pin diameter: 1/2″
- Finish: Z-Max 600 zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others
