Description

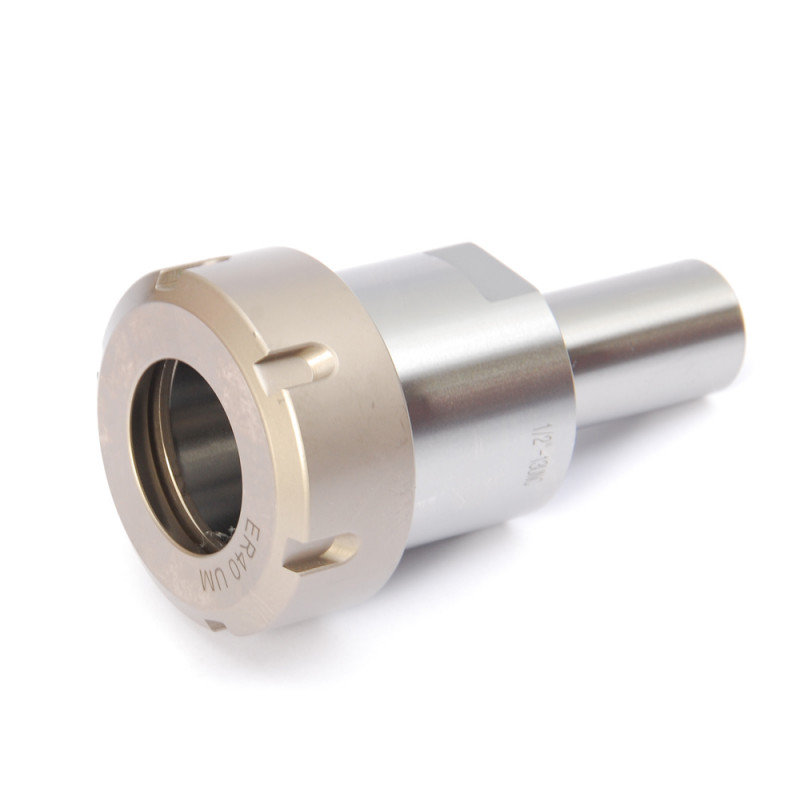

C ER/M straight tool holders for mechanical spindle and cutting tool and other accessory tool connection.
Is a simple, popular spindle shank connection standard, mainly C8, C10, C12, C16… Etc.. Mold industry, and high-speed engraving machine, used more. ER/M straight shank is longer, suitable for deep hole processing.
Surface of the clamping inner hole is grinding by high speed inner-aperture grinder, and inspect by standard pneumatic measurement instrument; the big end contact area rate is above 90%.
TYPE A / TYPE M / TYPE UM ARE DIFFENT, WHICH CAN BE JUDGED BY THEIR APPEARANCE
◎ Material: 20CrMnTi / JIS-SCM415, Surface hardness: 58±2 HRC.
◎ Shank is longer, suitable for deep hole processing.
◎ Outer diameter and other parts after grinding, eliminatethe unbalanced allowance, conducive to the stability of the cutting.
◎ Can reduce to the selection of lengthen cutting tool,reduce cost and improve efficiency.
◎ Run out: ≤0.00008″.
Cryogenic Treatment
◆ -384.8℉ long cryogenic, nearly all of the residual austenite into martensite.
◆ Carbide precipitation of Nanoscale particles, increasing the hardness and toughness.
◆ Reducing residual stresses.
◆ Wear resistance significantly improved.
Thermal Aging Processing
◆ long stereotyped thermal limitation removal of grinding residual stress.
Extension for Machining Deep Hole
◆ Solve the difficulty in machining deep hole.
| Brand Name | chongde | Style Name | C1″-ER40-2″ |
| SKU | CD010136-2540051 | Collet Size | ER40 |
| Through Coolant | YES | Shank Diameter (C) | 1″ |
| Net Weight | 2.05 lbs | Collet Nut Diameter (D) | 2.48″ |
| Gross Weight | 2.55 lbs | After pulling thread(T2) |
1/2″-13 UNC |
| Meas | 2.9″ × 2.9″ × 5.5″ | Shank Length (L1) | 2″ |
