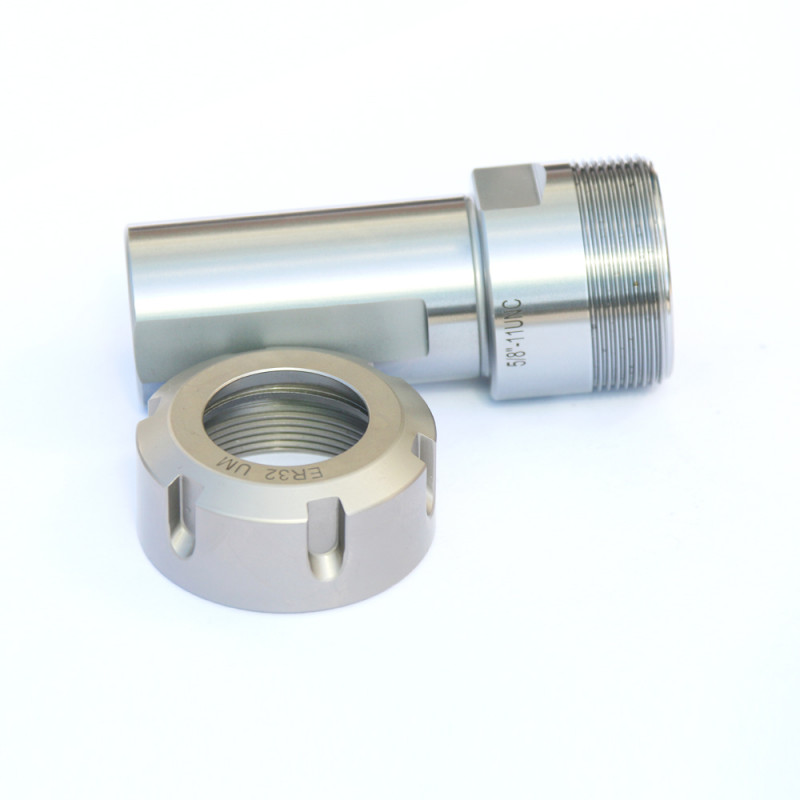

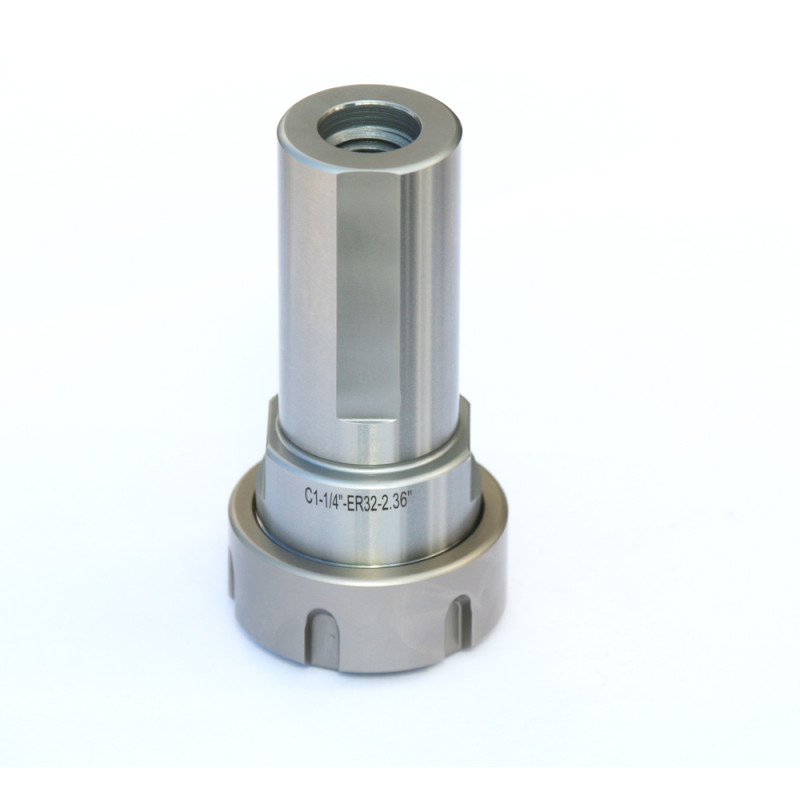

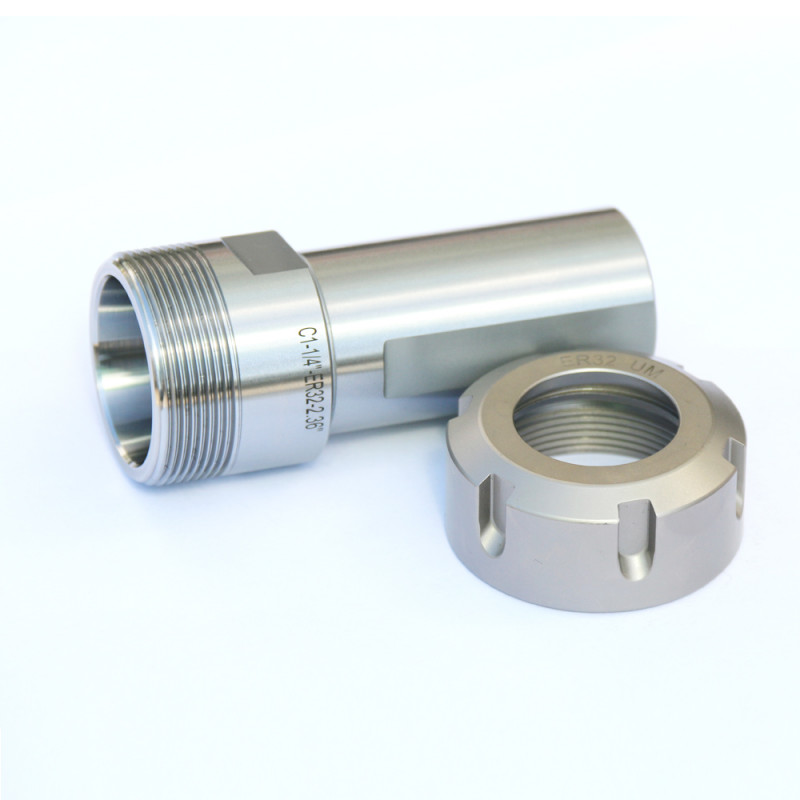

ER32 1-1/4″ Collet Chuck Tool Holders With Straight Shank 2.36″ on sale

Description

C ER/M straight tool holders formechanical spindle and cutting tool and other accessory tool connection.

Is asimple, popular spindle shank connection standard, mainly C8, C10, C12, C16…Etc.. Mold industry, and high-speed engraving machine, used more. ER/M straightshank is longer, suitable for deep hole processing.

Surface of the clamping inner hole isgrinding by high speed inner-aperture grinder, and inspect by standardpneumatic measurement instrument; the big end contact area rate is above 90%.

TYPE A / TYPE M / TYPE UM ARE DIFFENT, WHICH CAN BE JUDGED BY THEIR APPEARANCE

◎ Material: 20CrMnTi / JIS-SCM415, Surface hardness: 58±2 HRC.

◎ Shank is longer, suitable for deep hole processing.

◎ Outer diameter and other parts after grinding, eliminatethe unbalanced allowance, conducive to thestability of the cutting

◎ Can reduce to the selection of lengthen cutting tool,reduce cost and improve efficiency

◎ Run out ≤0.00008″

Cryogenic Treatment

◆ -384.8℉ long cryogenic, nearly all of the residual austenite into martensite.

◆ Carbide precipitation of Nanoscale particles, increasing the hardness and toughness.

◆ Reducing residual stresses.

◆ Wear resistance significantly improved.

Thermal Aging Processing

◆ long stereotyped thermal limitation removal of grinding residual stress.

Extension for Machining Deep Hole

◆ Solve the difficulty in machining deep hole.
