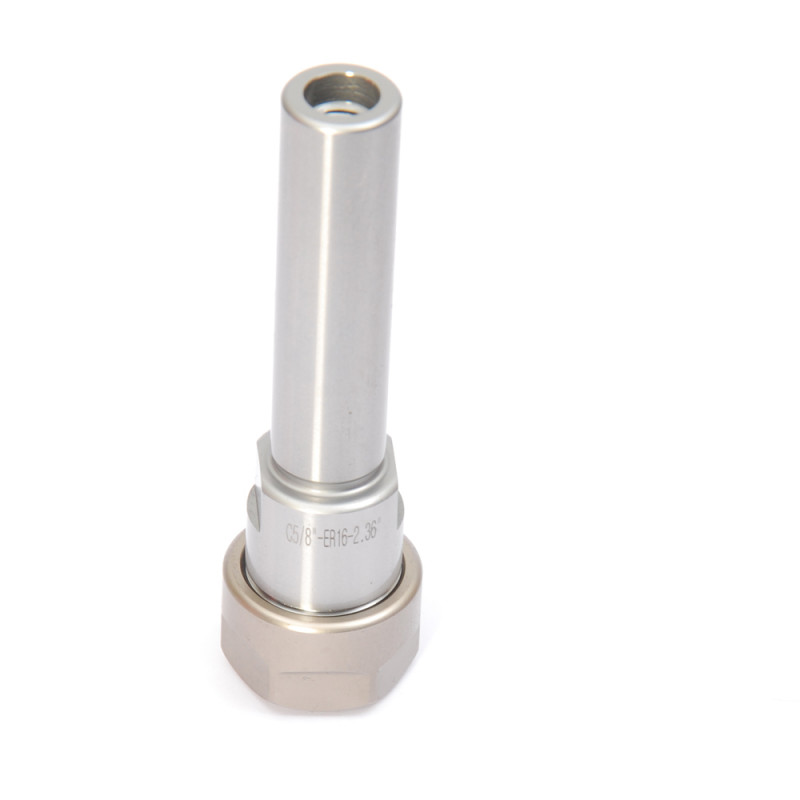

ER16 5/8″ Collet Chuck Tool Holders With Straight Shank 2.36″ on sale

Original price was: $25.14.Current price is: $7.54.

SKU: JP6IQ5EF Category:

Description

C ER/M straight tool holders for mechanical spindle and cutting tool and other accessory tool connection.

Is a simple, popular spindle shank connection standard, mainly C8, C10, C12, C16… Etc.. Mold industry, and high-speed engraving machine, used more. ER/M straight shank is longer, suitable for deep hole processing.

Comprehensive inspection way of chuck:

Surface of the clamping inner hole is grinding by high speed inner-aperture grinder, and inspect by standard pneumatic measurement instrument, the big end contact area rate is above 90%.

TYPE A / TYPE M / TYPE UM ARE DIFFENT, WHICH CAN BE JUDGED BY THEIR APPEARANCE

◎ Material: 20CrMnTi / JIS-SCM415, Surface hardness: 58±2 HRC.

◎ Shank is longer, suitable for deep hole processing.

◎ Outer diameter and other parts after grinding, eliminatethe unbalanced allowance, conducive to the stability of the cutting.

◎ Can reduce to the selection of lengthen cutting tool,reduce cost and improve efficiency.

◎ Run out: ≤0.00008″

Cryogenic Treatment

◆ -384.8℉ long cryogenic, nearly all of the residual austenite into martensite.

◆ Carbide precipitation of Nanoscale particles, increasing the hardness and toughness.

◆ Reducing residual stresses.

◆ Wear resistance significantly improved.

Thermal Aging Processing

◆ long stereotyped thermal limitation removal of grinding residual stress.

Extension for Machining Deep Hole

◆ Solve the difficulty in machining deep hole.



Brand Name chongde Style Name C5/8″-ER16-2.36″
SKU CD010136-1316060 Collet Size ER16
Through Coolant YES Shank Diameter (C)

 5/8″

Net Weight 0.35 lbs Collet Nut Diameter (D)  1.102″
Gross Weight 0.53 lbs  After pulling thread(T2)
5/16-18 UNC
Meas 1.5″ × 1.5″ × 2.5″ Shank Length (L1) 2.36″
