Description
This Air Suspension System is specifically designed to fit the 1968-1972 Nova. This system will give you the ability to achieve that ultra-low show stance and includes several components that will dramatically improve the suspension geometry to give your old muscle car modern drivability.
*Some 1973-1974 cars have a different shape frame rail and require an alternate 4-link cradle.

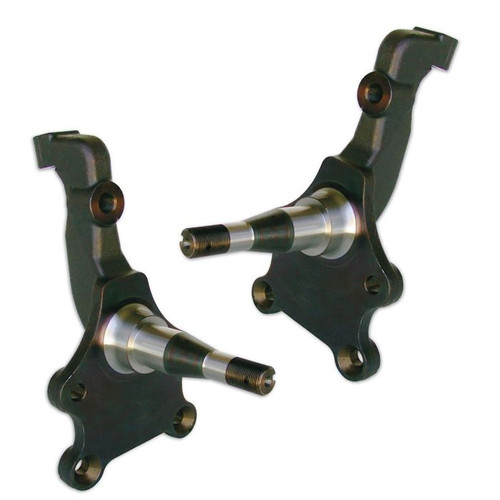

- Tall “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel. Compatible with all brake kits designed to fit the stock disc brake spindle.
- Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes. Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included). Minimum 17″ wheels.

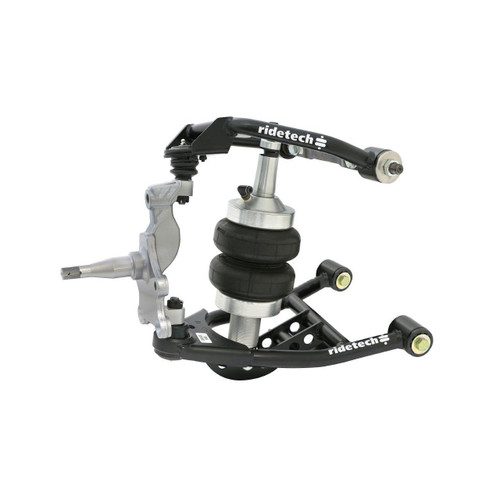

- Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- HQ Series Shockwaves utilize an impact-forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under-hood access. They come standard with a 1,000,0001 Mile Warranty.
- Front Sway Bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings.
- Bolt-On 4-Link greatly improves traction, handling, and ride quality. Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
***Control system not included. To complete this Air Suspension system please choose from one of our Compressor Systems.
