Description
1. T.I.R. ≤ 0.0002″ at collet face
2. Rear thread for pull stud is 5/8″ – 11
3. All critical tool holder surfaces precision ground
4. Made from alloy structural steel hardened to HRC48 – 52 for long, durable service life
5. Balanced to G6.3 at 15000 rpm
6. Taper ground to high precision AT3 accuracy

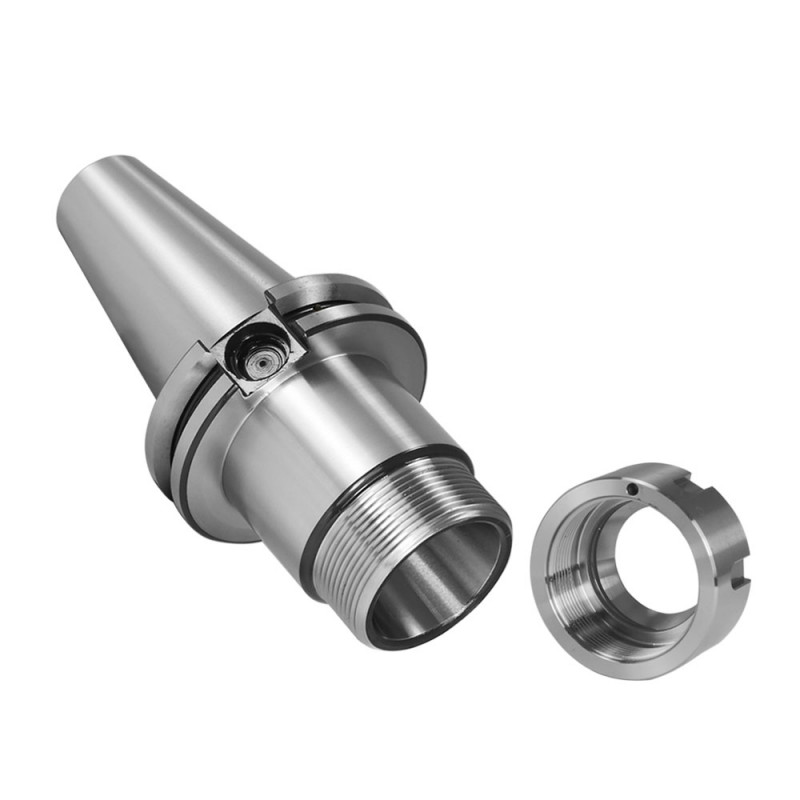

7. Collet nut is included
8. Through-spindle coolant capability
9. Collet Chuck accepts all ER32 collets
| Brand Name | Bodee | Size | CAT40 |
| SKU | BA0101015 | Style Name | ER32 Type |
| Through Coolant | YES | TIR | ≤ 0.0002″ |
| Balanced to | G6.3 15000 RPM | Collet Nut Diameter(d1) | 1 – 31/32″ |
| Net Weight | 2.86 lbs | Collet Range(d2) | 3/64″ – 3/4″ |
| Gross Weight | 2.96 lbs | Projection (L1) | 3-1/3″ |
| Meas | 7.9 × 2.95 × 2.95 in. | Overall Length(L) | 6-1/3″ |
