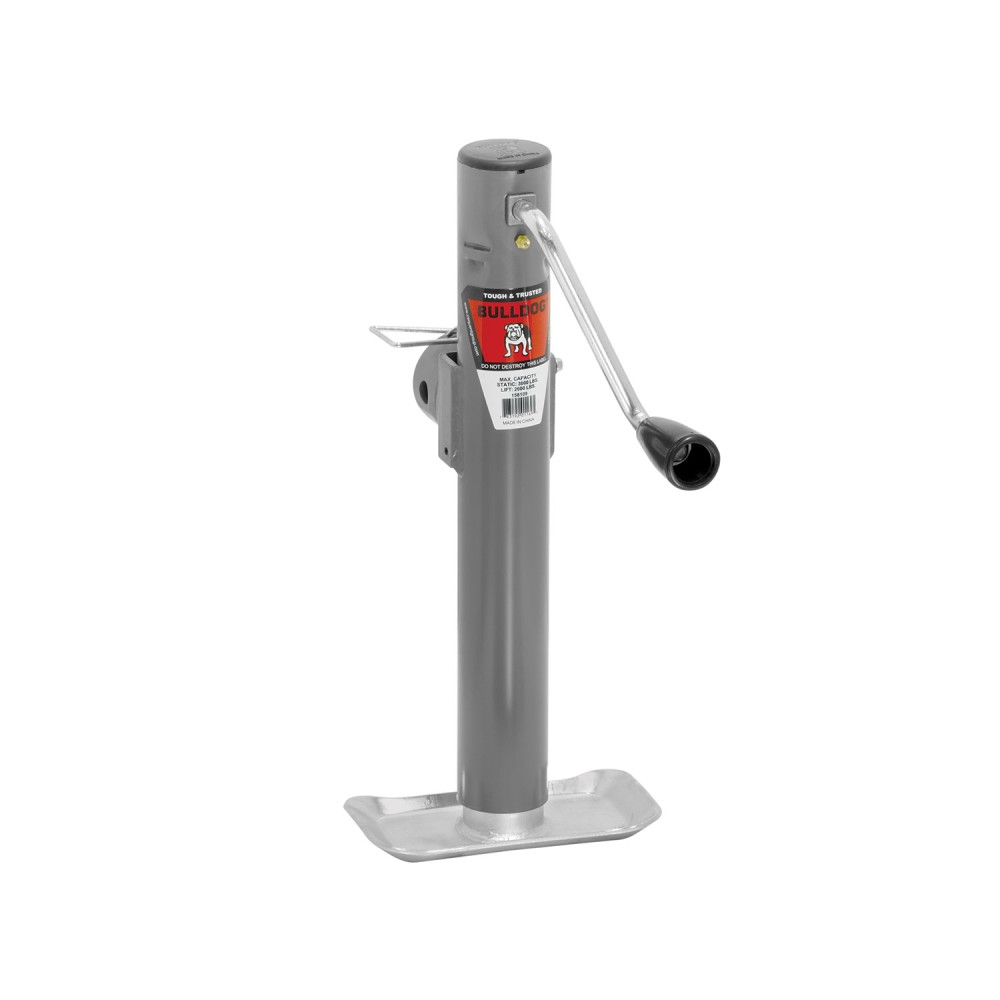

Bulldog 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Sidewind 15″ Lift w/ Footplate

Description

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Grey painted outer and zinc inner tubes

• Weld-on L-bend swivel bracket assembled

• Limited 5-year warranty

Specifications:

• Lift Capacity: 2,000 lbs.

• Retracted Bracket Height: 14.50″ from bracket to bottom

• Extended Bracket Height: 29.50″

• Travel/Lift: 15″

• Clearance: 12.20″ from bracket to top

• Weld-On L-bend swivel bracket assembled

• 1/2″ diameter plunger pin

• Includes footplate

• Outer tube diameter: 2-1/4″

• Inner tube diameter: 2″

• Handle Radius: 5.80″
