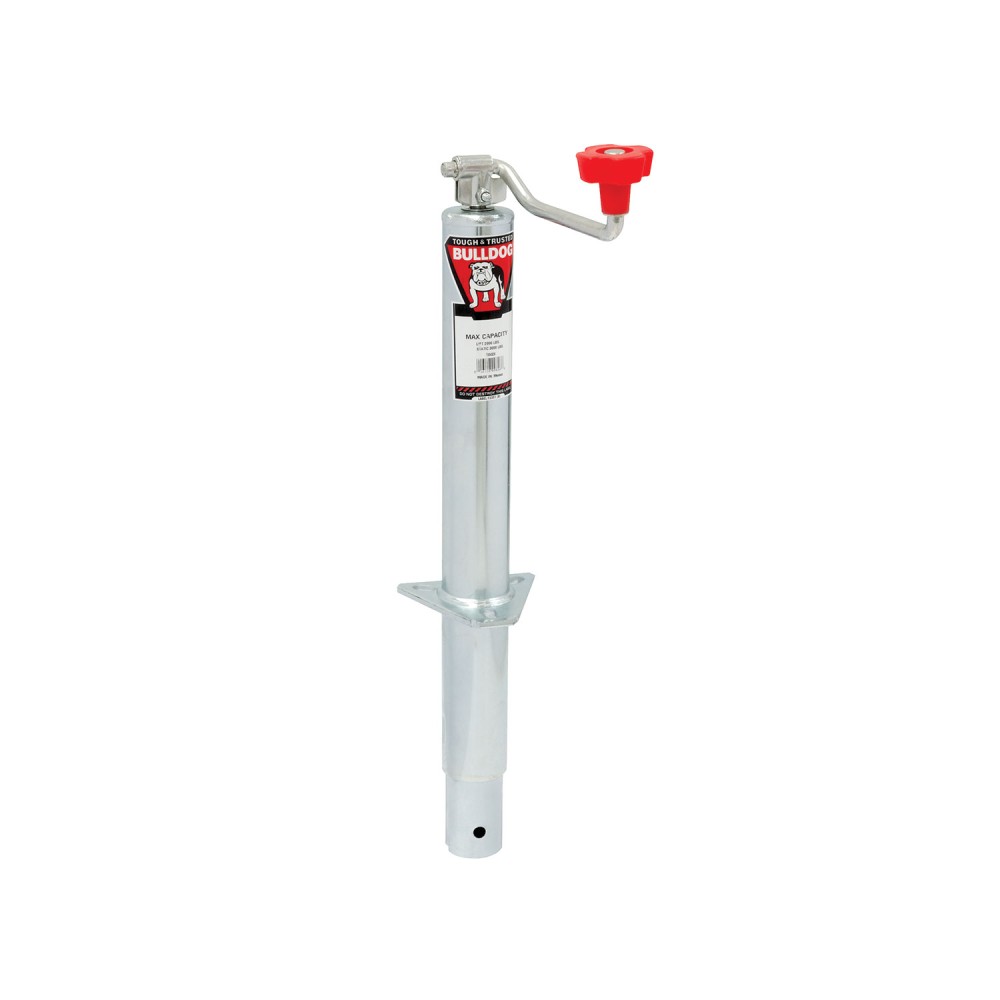

Bulldog 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Bolt-on Topwind 10″ Lift

Description

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Grey painted outer and zinc inner tubes

• Weld-on L-bend swivel bracket assembled

• Limited 5-year warranty

Specifications:

• Lift Capacity: 2,000 lbs.

• Retracted Bracket Height: 11″ from bracket to bottom

• Extended Bracket Height: 21″

• Travel/Lift: 10″

• Clearance: 4″ from bracket to top

• Fits up to a 3″ x 4″ tongue

• Bolt-on swivel bracket assembled with mounting hardware

• 1/2″ diameter plunger pin

• Outer tube diameter: 2-1/4″

• Inner tube diameter: 2″

• Footplate is sold separately

• Handle Radius: 6.65″
