Description

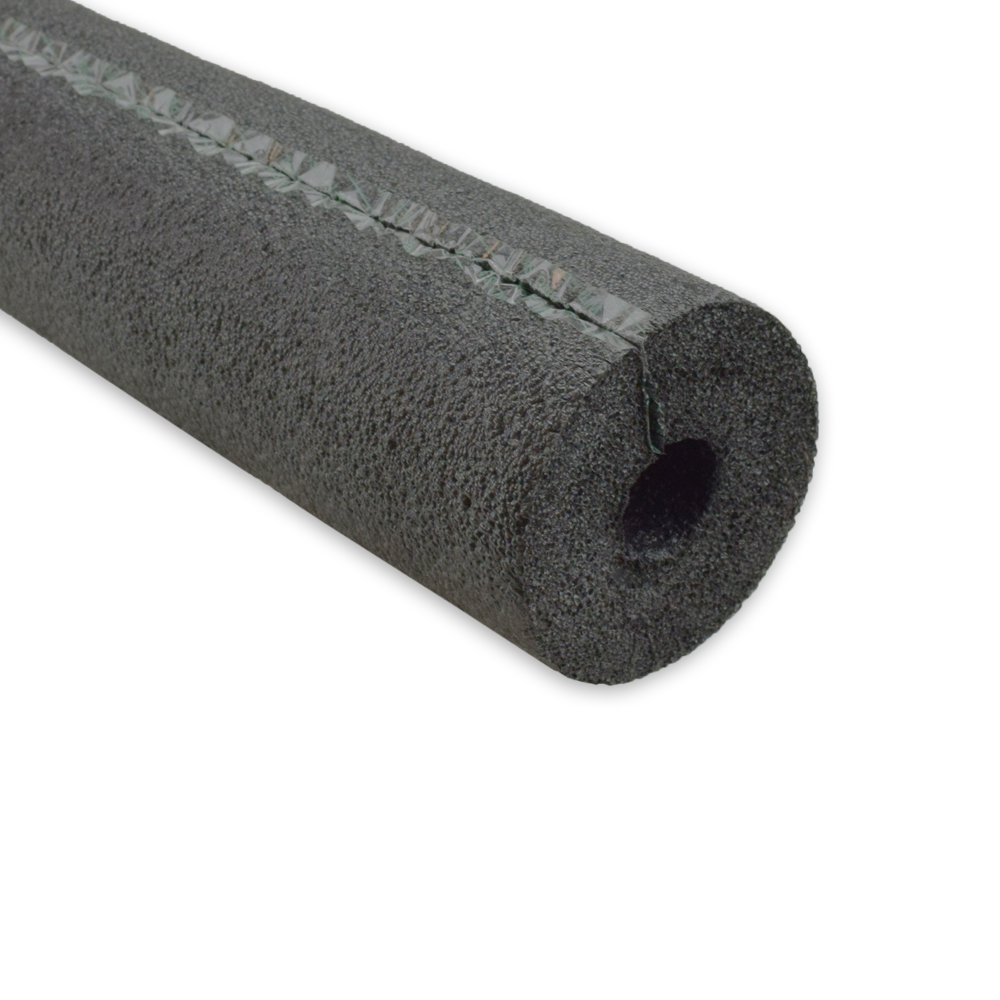

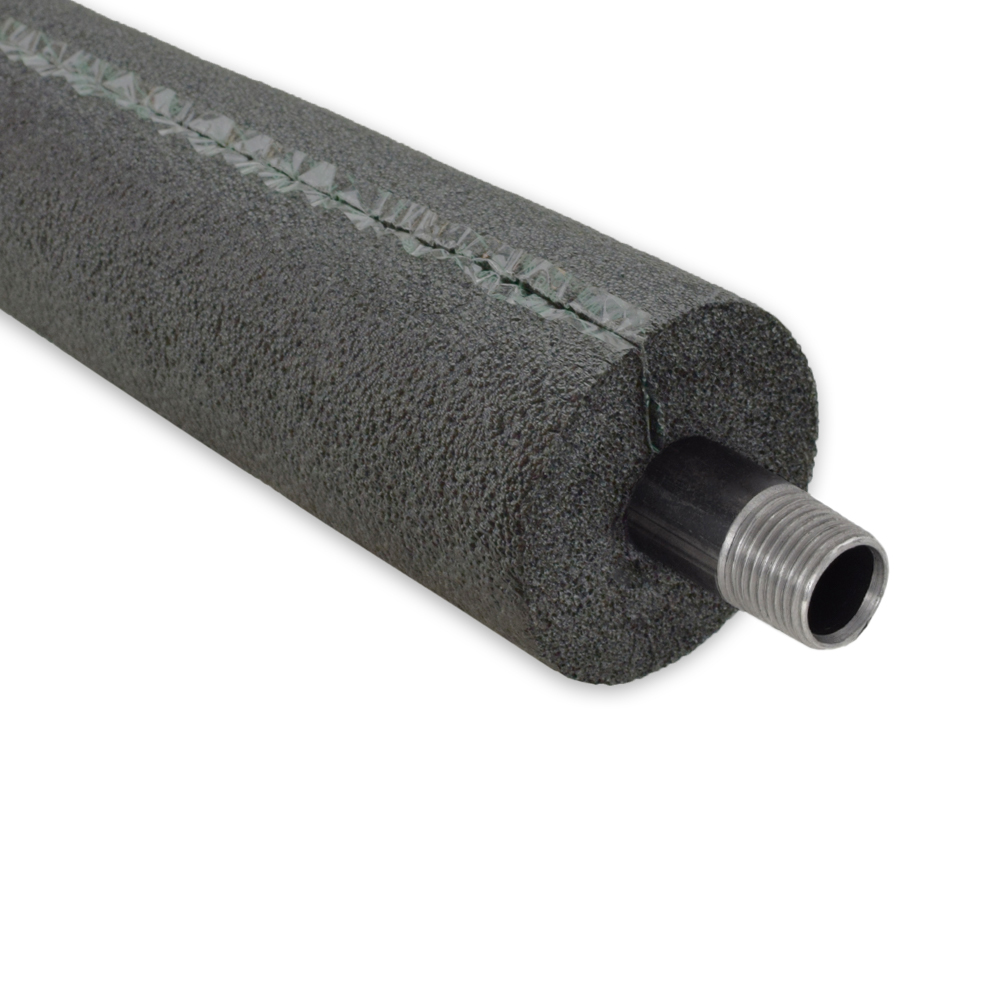

6ft (72″) long, self-seal type closed-cell polyethylene foam pipe insulation for use with 1/2″ copper/PEX/CPVC pipe or 3/8″ black/brass/PVC pipe. Maximum OD is 5/8″. Insulation wall thickness is 1″. Environment-friendly, made in the USA.
Features:
- Self-Sealing, with PSA (Pressure Sensitive Adhesive) on both seam surfaces
- American-made to ASTM C1427 (Type 1/Grade 1) from up to 100% recycled content
- Meets ASTM E84 25/50 rated (to 1″) to UL 743
- Meets NFPA 255 & CAN/ULC S102-00
- Non-porous, closed-cell type polyethylene foam insulation
- Resists mold growth
- Low VOC and free from fiber, halogen, CFC’s, HCFC’s
- For Indoor/Outdoor use, can also be installed underground.
Technical Specifications:
- For copper/PEX/CPVC pipe size: 1/2″
- For black/brass/steel/PVC pipe size: 3/8″
- Insulation ID (max. pipe OD): 5/8″
- Wall thickness: 1″
- Length: 6ft
- R-value: 7.9
- Flame/Smoke Rating: 25/50
- Foam Density: 1.5 – 2.0 lb/cubic foot
- Operating temperature range: -200°F – 200°F
