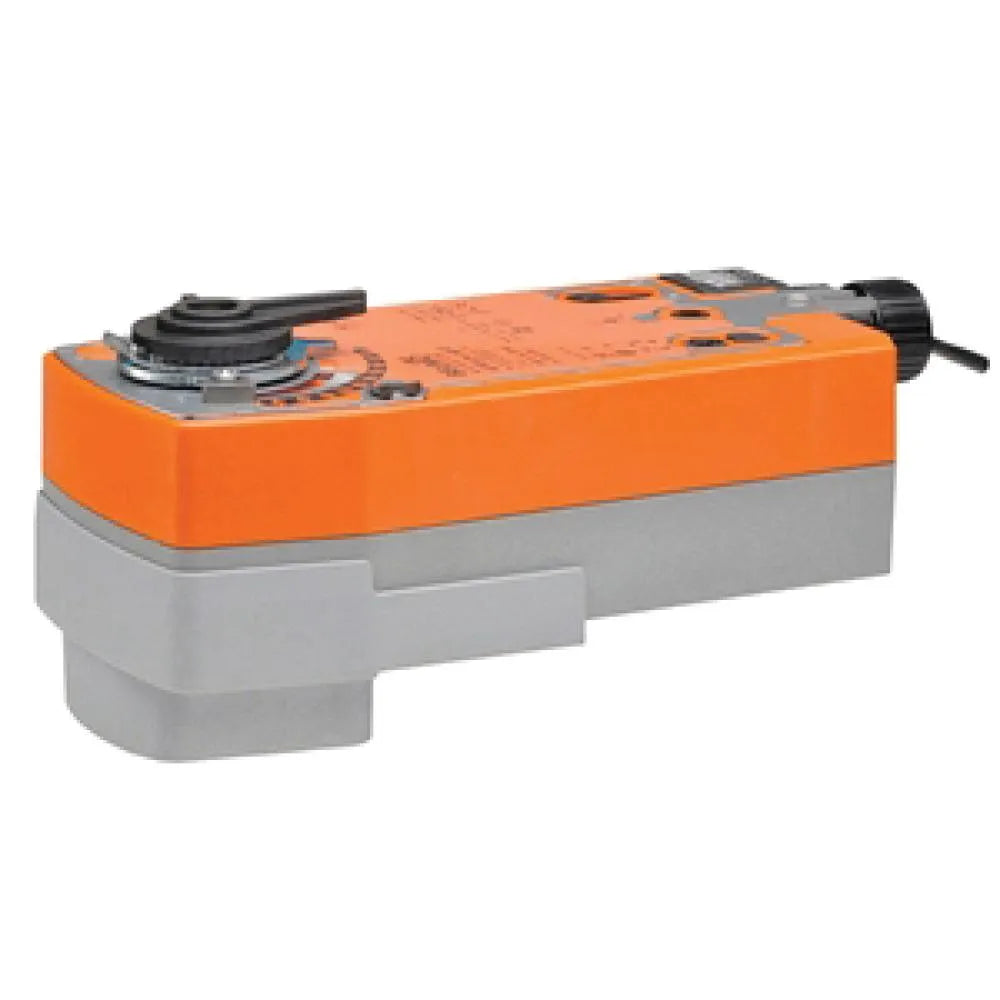

AFB24-MFT Belimo Damper Actuator

Description

BELIMO® Damper Actuator, 0.5 mA, 24 VAC/VDC, 50/60 Hz, 7.5 W, VA Rating: 10 VA, 3 ft 18 AWG Appliance Cable With 1/2 in Conduit Connector Electrical Connection, 150 s Timing, Metal/Plastic, Finish: Zinc-Coated, 20 N-m Torque, 100 kOhm, 500 kOhm, 1500 kOhm Input, <=40 dBA Noise Level, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 95 % Humidity Rating, 3.42 in L x 9.69 in W, Brushless Motor, 7.5 W Power Consumption, 95 deg Rotation Angle, 1/2 in Dia Shaft, Additional Information: For Use With Valves
