6-branch Brass Radiant Heat Manifold Set w/ 1/2″ PEX adapters special

Description

1/2″ PEX adapters are included by default. For other size adapters (free upgrade – 3/8″ PEX, 5/8″ PEX or 1/2″ PEX-AL-PEX) make a note at checkout.
6-branch Deluxe Radiant Manifold Set. Pre-assembled. Nickel-plated finish and all-brass construction.
Each set comes with the following standard components:

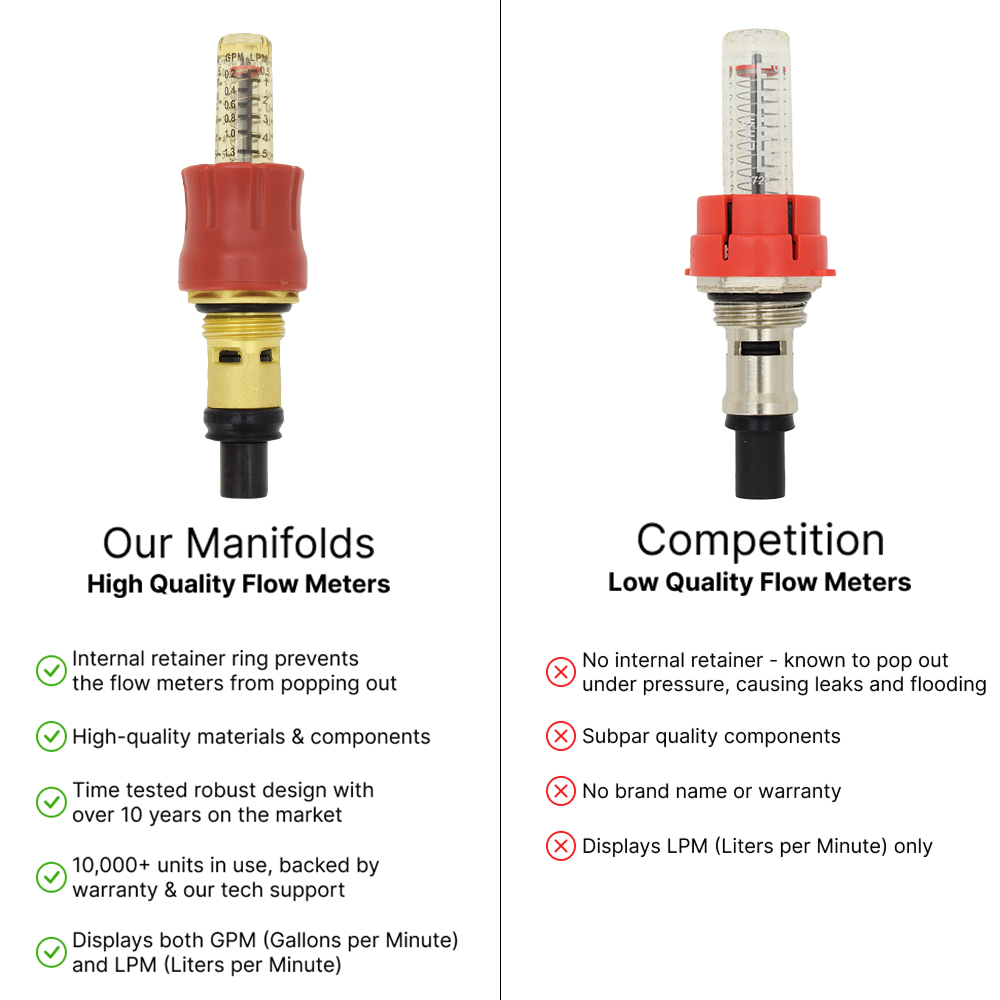

(1) Supply side radiant manifold w/ (6) adjustable flow indicators and (6) outlets for PEX tubing.
(1) Return side radiant manifold w/ (6) balancing valves and (6) outlets for PEX tubing.
(2) 1″ threaded, quarter turn shut-off ball valves – one for supply manifold and one for return.
(2) Temperature gauges – one for supply and one for return manifolds to monitor supply and return water temperatures (F & C reading).
(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4″ garden hose (drain hose) connection and a cap – on each manifold.
(12) Compression adapters for 1/2″ PEX tubing are included – no purchase necessary. Other size adapters (3/8″, 5/8″) can be purchased separately.
(2) Mounting brackets.
Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT).
Applications:

• Radiant floor heating
• Snow melting

Technical Specifications:

• Total number of PEX outlets: 12
• Distance OC (On Center) between PEX outlets: 2″
• Overall height when installed: 14.5″
• Overall width when installed (with shut-off valves): 18.75″
• Distance between supply and return manifolds (on center): 8.25″
• Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
