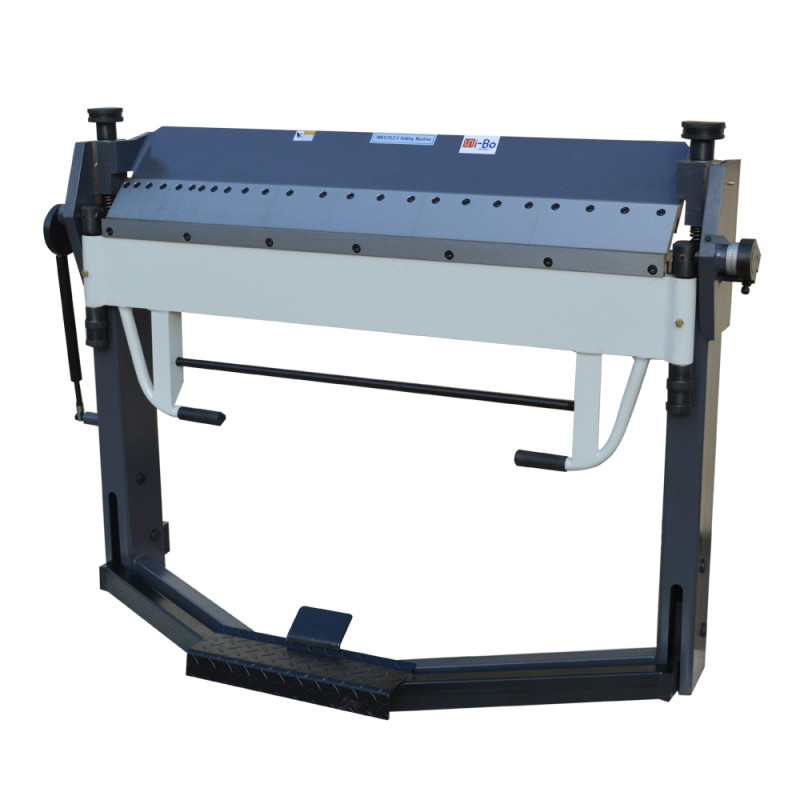

50Inch Pan and Box Brake 14 Gauge Sheet Metal Bender with Foot Clamp

Original price was: $2,486.48.Current price is: $745.94.

SKU: F16W3JUM Category:

Description

1. It is easy for operation and relax hands through the foot control.

2. A pedal structure, foot controlled clamping beam.

3. Adjustable stop rod and easy to make repeatable bends.

4. Blade gaps adjustment can be done by easily holding knobs.

5. According to the abnormity degree and length of the workpiece, the upper blade can be dismantled for use.

6. A fully welded structure, and high quality engineering, ensure minimum maintenance, together with simple and safe operation.

7. Harden processed edge segments prolongs the service time.

Model PBB-1270/2
Max. Working Length 50″
1270mm
Max. Sheet Metal Thickness 14 Gauge
2mm
Max. Clamping Beam Lift 1-27/32″
47mm
Folding Angle 0-135°
Finger Width 1″, 1-1/8″, 1-3/8″, 1-9/16″, 1-3/4″, 2″, 3″, 4″, 6″, 7-3/4″, 10″, 10-5/8″
25, 30 35, 40, 45, 50, 75, 100, 150, 200, 250, 270mm
Packing Size (L × W × H) 66-15/16″ × 28″ × 50″
1700 × 710  × 1270mm
Net Weight 705.6 lbs.
320 kg
Shipping Weight 793.8 lbs.
360 kg
