Description
CHECK YOUR VEHICLE FITMENT !
2019-2023 4WD Chevy Silverado 1500
2019-2023 4WD GMC Sierra 1500
Overview
GM’s 2019 silverado and sierra features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings that fit in beautifully when transformed with Rough Country’s 4in Suspension Lift for Trailboss / AT4 models.
Rough Country’s 4in Suspension lift retains the stock track width, allowing for up to a 10in wide wheel with 4.5in backspacing. Each kit includes front and rear crossmembers and a skid plate for enhanced chassis strength as well as cast steel knuckles for incredible durability and performance. Includes Rough Country’s Lifetime Replacement Guarantee!
Notes – Important
Does NOT fit GMC Denali models with Magnetic Ride Control.
Does NOT fit 2019 “Classic” models (2018 body style)
ONLY fit Trailboss models (Chevy)
ONLY fits AT4 models (GMC)
Does NOT fit standard models or other trims (GMC)
Requires cutting and drilling.
Features
Lifts and levels the vehicle from front to rear
High clearance crossmember design for optimal suspension geometry
Includes cast knuckles for extreme durability
Retains stock track width
No strut disassembly required
No differential trimming required!
100% precision laser cut materials using the latest computer aided design process.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
// Tire & Wheel Details /
Does NOT fit factory wheels
20-inch or larger aftermarket wheels are required.
Wheels must feature 4.5in backspacing to fit
Please test fit wheels prior to installation

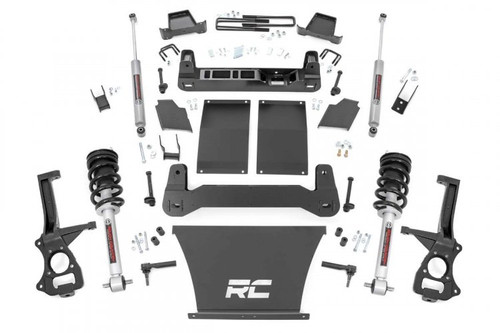

In the Box
- Front
Lifted knuckles
Front crossmember
Rear crossmember
Upper strut spacers
Lower strut spacers
Differential drop brackets
Differential skid plate
Sway-bar drop brackets
Hardware - Rear
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware - Shocks
(2) Rear Premium N3 series
Recommended Tires & Wheels
Tire
| TIRE | WHEEL | BACKSPACING | OFFSET |
| 35×12.50R20 | 20X10 | 4.5IN | -24MM |
| *35X12.50R20 | 20X10 | 4.5IN | -18MM |
| 35X12.50R20 | 20X9 | 4.5IN | -12MM |
| *35X12.50T20 | 20X9 | 4.5IN | -6MM |
| 295/65R20 | 20X10 | 4.5IN | -24MM |
| *295/65R20 | 20X10 | 4.5IN | -18MM |
| 295/65R20 | 20X9 | 4.5IN | -12MM |
| *395/65R20 | 20X9 | 4.5IN | -6MM |
*Requires 1/4in wheel spacer
Does NOT fit Factory Wheels
Aftermarket Wheels must be 20in or larger
