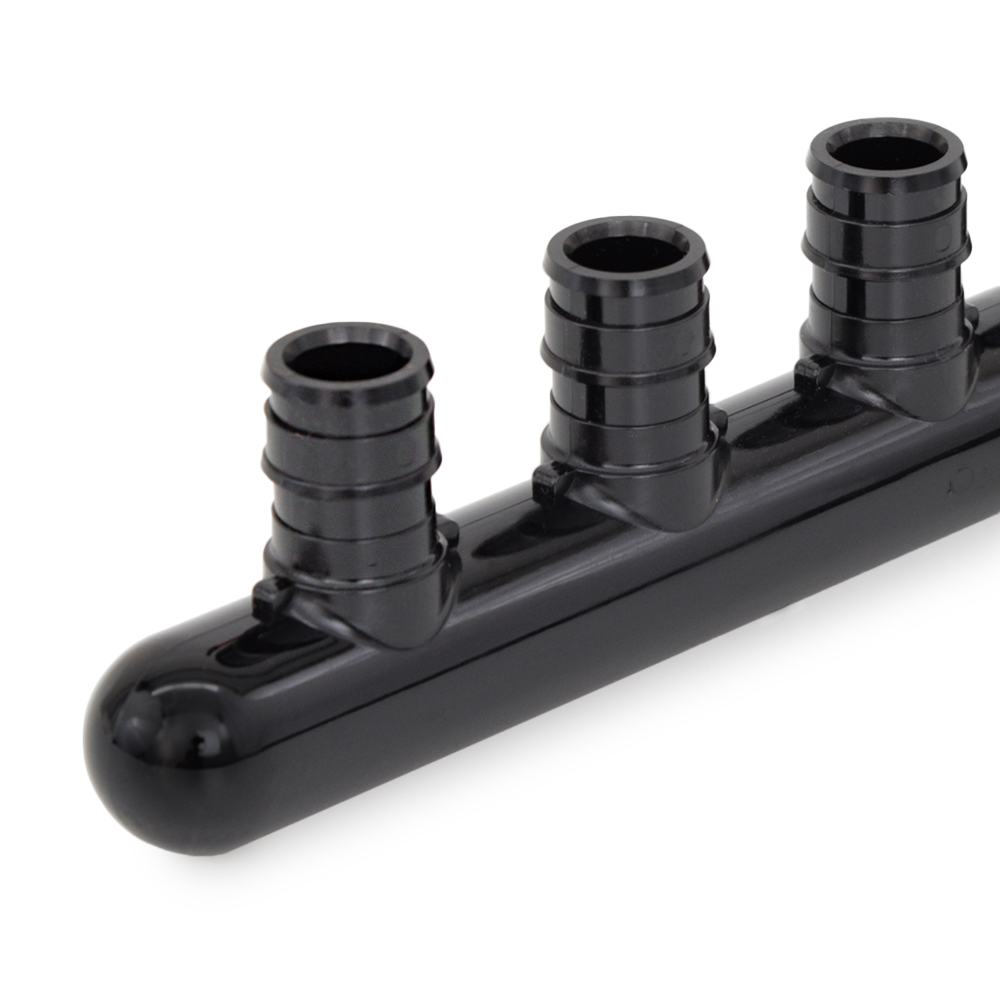

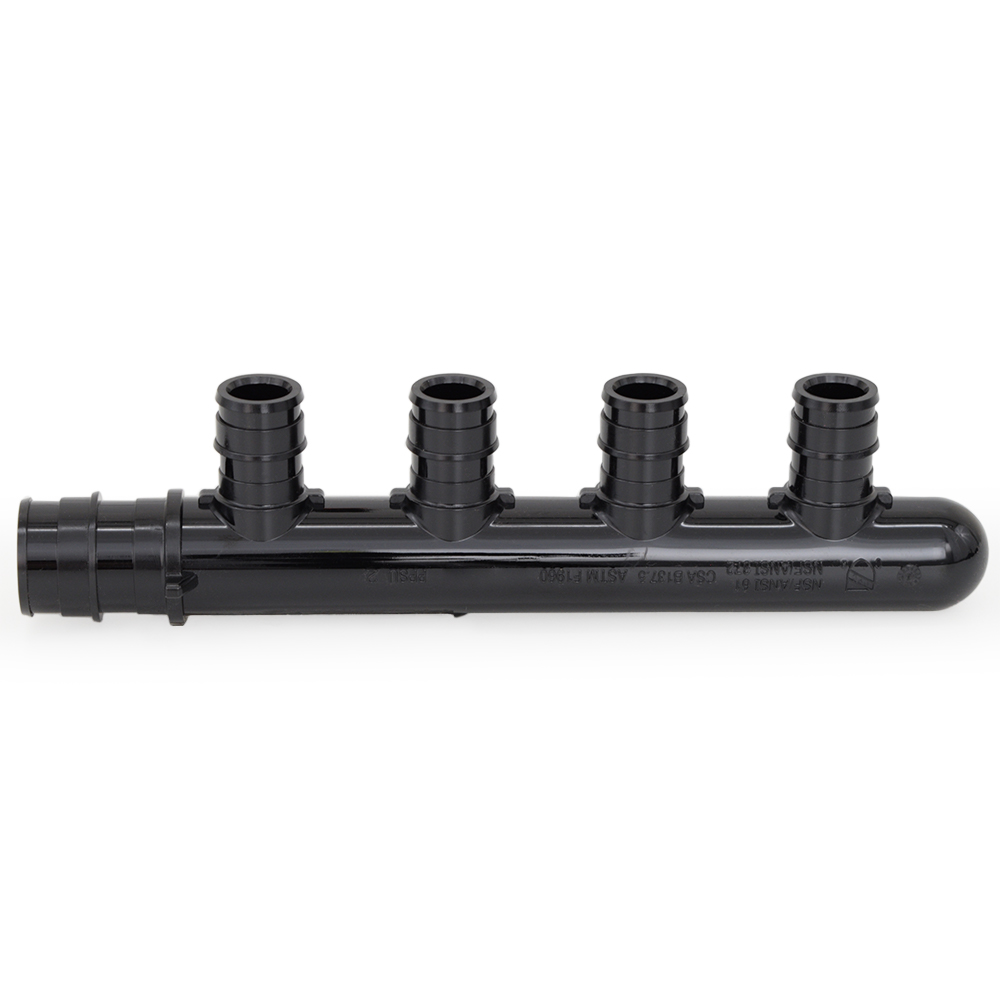

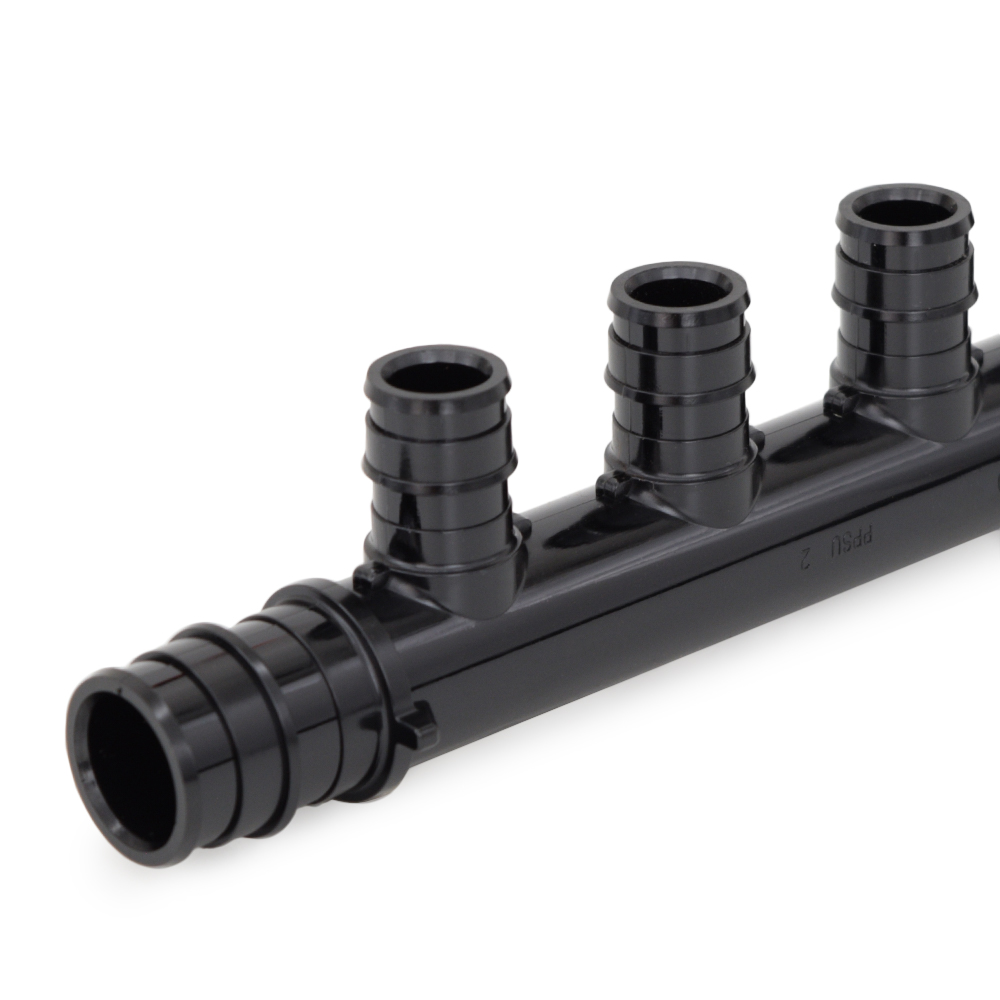

4-Branch PEX-A Expansion (F1960) Poly-Alloy Manifold, 1/2″ Ports x 3/4″ Inlet, Closed-Style, Lead-Free

Description

4-branch (port) poly-alloy manifold with expansion style (F1960) connections. 1/2″ PEX-A branches and 3/4″ PEX-A inlet port. Closed outlet.
Features:

• Meets NSF/ANSI 61 and 372, lead-free compliant and approved for potable water use
• Made to ASTM F1960, CSA B125.1 & B137.5 standards
• cUPC listed
• Compatible with all brands of PEX-A tubing and expansion connection system

Technical Specifications:

• Branches/Ports: (4) x 1/2″ PEX-A (F1960) expansion style
• Inlet: 3/4″ PEX-A (F1960) expansion style
• Outlet: closed
• Overall Length: 6-3/8″
• Height: 1-5/8″
• Branch Spacing: 1-1/4″
• Max. Operating Temperature: 160°F
• Max. Operating Pressure: 100 psi
