4-branch Brass Radiant Heat Manifold Set w/ 1/2″ PEX adapters special

Description

1/2″ PEX adapters are included by default. For other size adapters (free upgrade – 3/8″ PEX, 5/8″ PEX or 1/2″ PEX-AL-PEX) make a note at checkout.
4-branch Deluxe Radiant Manifold Set. All brass construction. Nickel plated finish. Comes pre-assembled.
The following components are included in every set:

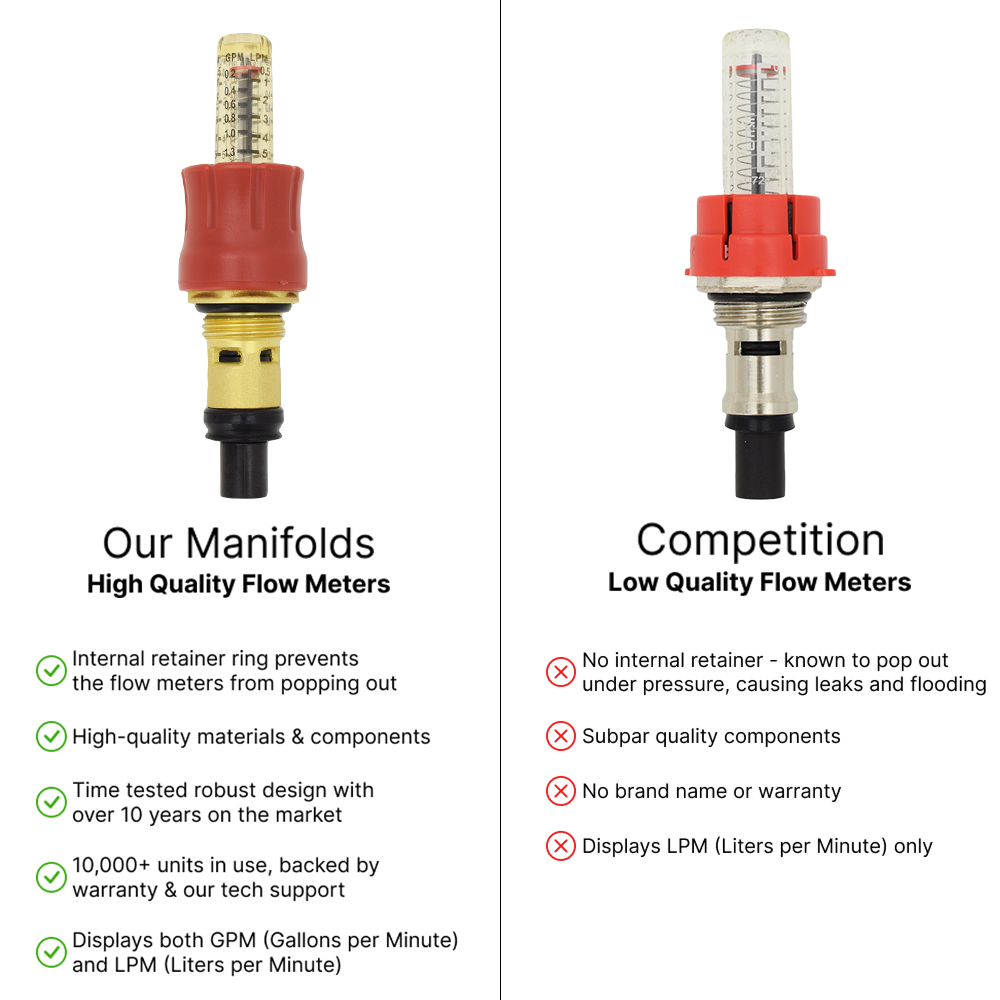

(1) Supply side radiant manifold w/ (4) adjustable flow indicators and (4) outlets for PEX tubing.
(1) Return side radiant manifold w/ (4) balancing valves and (4) outlets for PEX tubing.

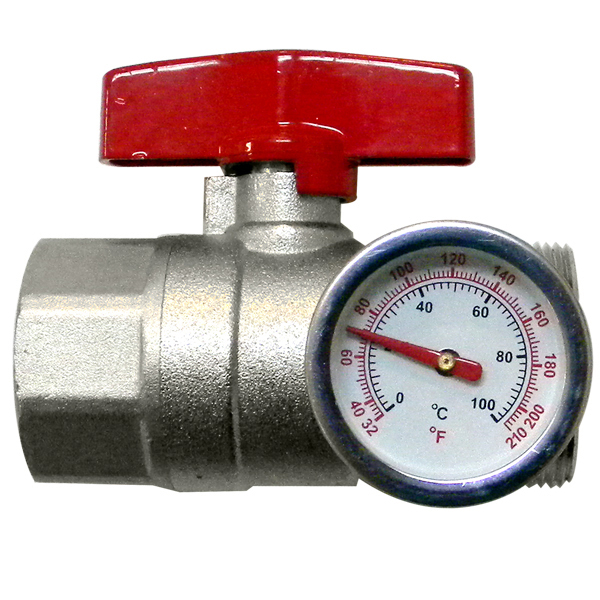

(2) 1″ threaded, quarter turn shut-off ball valves – one for supply manifold and one for return.
(2) Temperature gauges – one for supply and one for return manifolds to monitor supply and return water temperatures (F & C reading).
(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4″ garden hose (drain hose) connection and a cap – on each manifold.
(8) Compression adapters for 1/2″ PEX tubing (no PEX tools required to connect tubing to the manifold).
(2) Mounting brackets.
Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT).
Technical Specifications:

• Total number of PEX outlets: 8
• Distance OC (On Center) between PEX outlets: 2″
• Overall height when installed: 14.5″
• Overall width when installed (with shut-off valves): 14.75″
• Distance between supply and return manifolds (on center): 8.25″
• Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
