Description

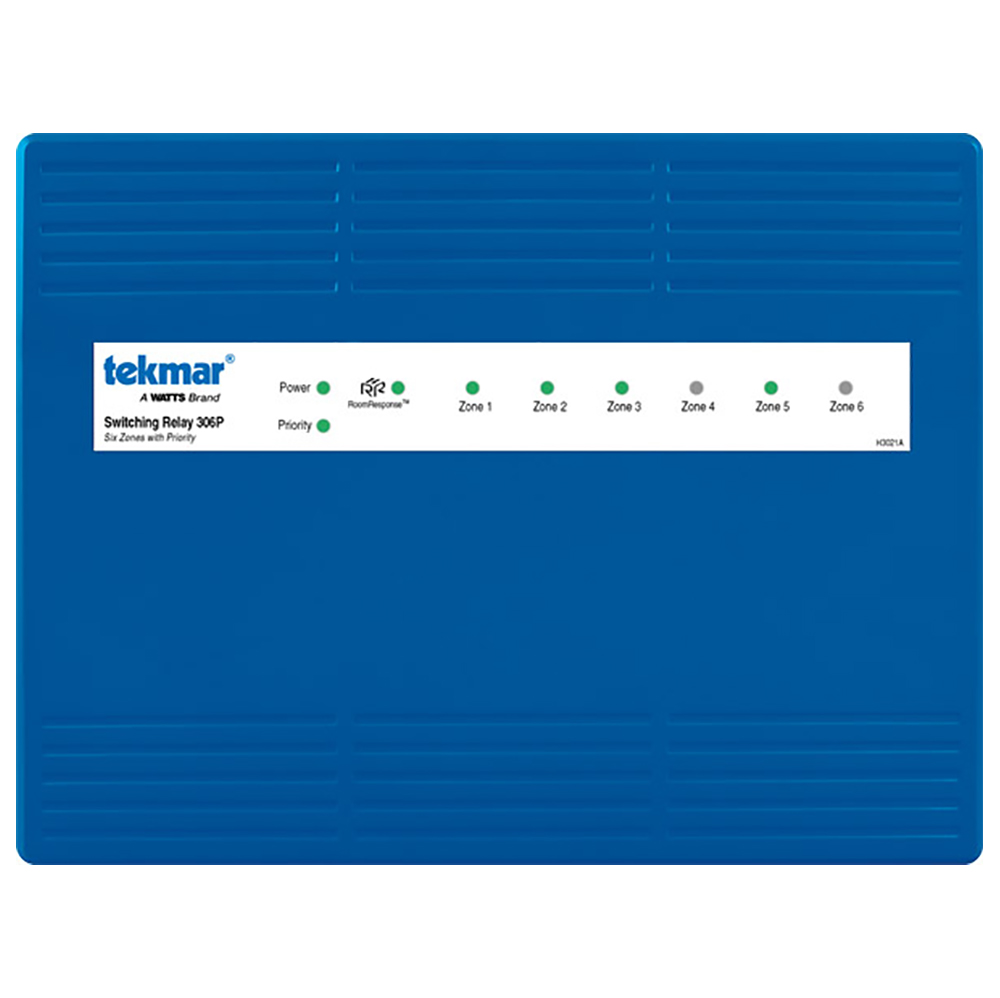

Tekmar 306P 6-Zone Switching Relay connects up to (6) low-voltage (24V) thermostats and (6) circulating pumps, providing heating to zoned hydronic and radiant heating systems. There is an optional priority of Zone 1 over the Zones 2 through 6. Zone 1 can also be used to provide heat to an indirect hot water tank. Universally compatible with all thermostat and circulator brands.
Features:
- Compatible with all 24V thermostat brands (Tekmar, Honeywell, etc.)
- Compatible with all 115/120V circulator pump brands (Taco, Grundfos, Armstrong, Wilo, etc.)
- Unlimited zone expansion
- RoomResponse signal for energy efficiency
- Priority override, pump exercise and post purge
- External LED indicators
- Fused pump and transformer protection (includes two spare fuses)
- CSA approved
Technical Specifications:
- Zones: 6
- Control: Microprocessor Control
- Power supply: 115 VAC, 60 Hz, 17.3 A
- Transformer Rating: 40 VA at 24 VAC
- Control load: 7 VA at 24 VAC
- Fuses: T5A, 250 V slow blow glass fuse, two spare fuses included
- Pump relays: 115 VAC, 5 A, 1/3 HP, 17.3 A combined
- Boiler XX end switch: 24 VAC, 5 A
- DHW end switch: 24 VAC, 5 A
- Mod boiler output: 0-10 V 500 ohm min load impedance, 4-20 mA 1 k ohm max load impedance
- Materials: ABS Plastic (Cover), Galvanized Steel (Base) NEMA type 1
- Dimensions: 8-3/16″ x 10-12/18″ x 2-3/8″
- Packaged weight: 5 lbs
Warranty:
3-year warranty
