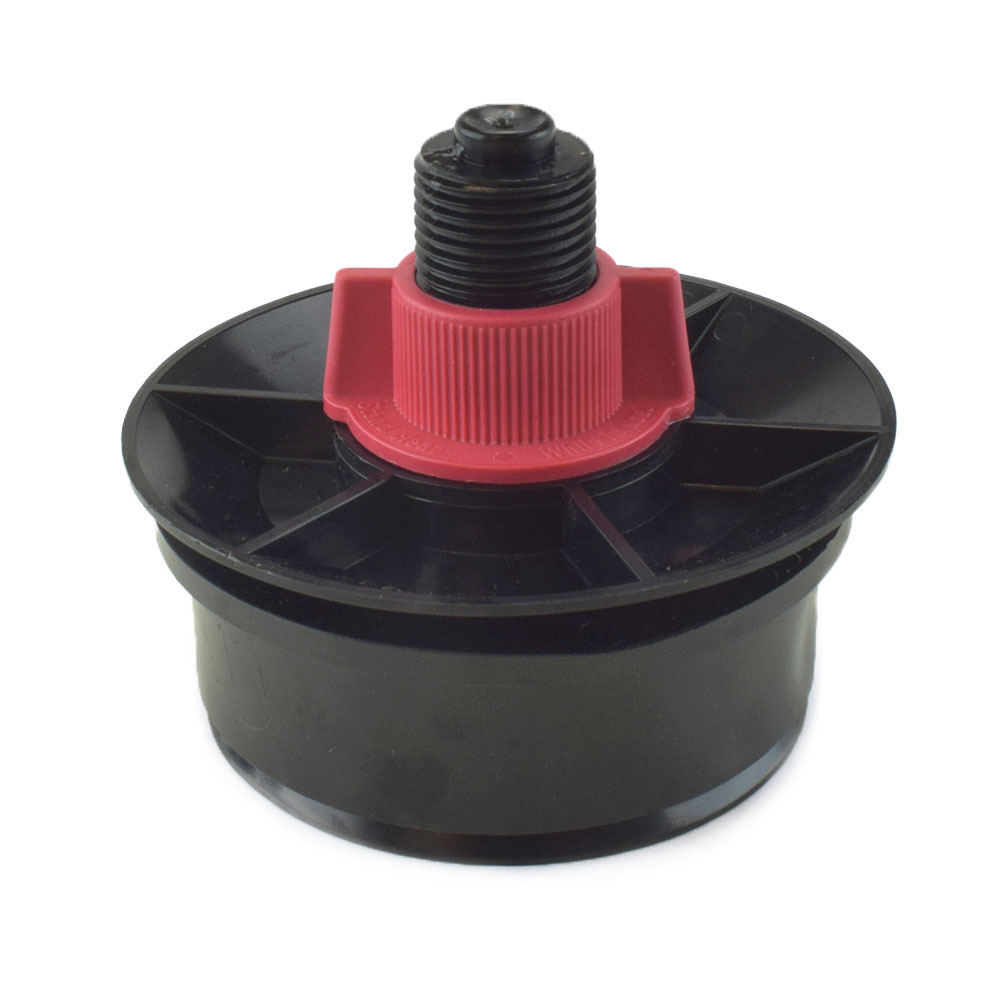

3-1/2″ TestTitan, FIP Cleanout Mechanical Test Plug supply

Description

TestTitan plug is designed for DWV pressure testing in PVC, ABS and Cast Iron drainage and vent systems. Intended for installation inside 3-1/2″ FIP cleanout – no special adapter or adhesize needed. Not for inside-pipe use. Drill or cut off tip to make a hole and connect standard garden hose for water pressure testing where needed.
Warning: as with all pressure testing equipment, follow all applicable codes/procedures, manufacturer reccommendations and wear safety gear when performing DWV drain tests. Stay clear of the test tees, cleanouts and pipe ends while system is under pressure.

Features:

• Reusable – easy installation and removal
• For use in FIP cleanout threads only
• Use a 9/16″ drill bit or cut off the tip to access the hollow stem
• Hollow, 3/4″ male hose thread stem allows to fill/drain through the plug. Connects to a standard garden hose

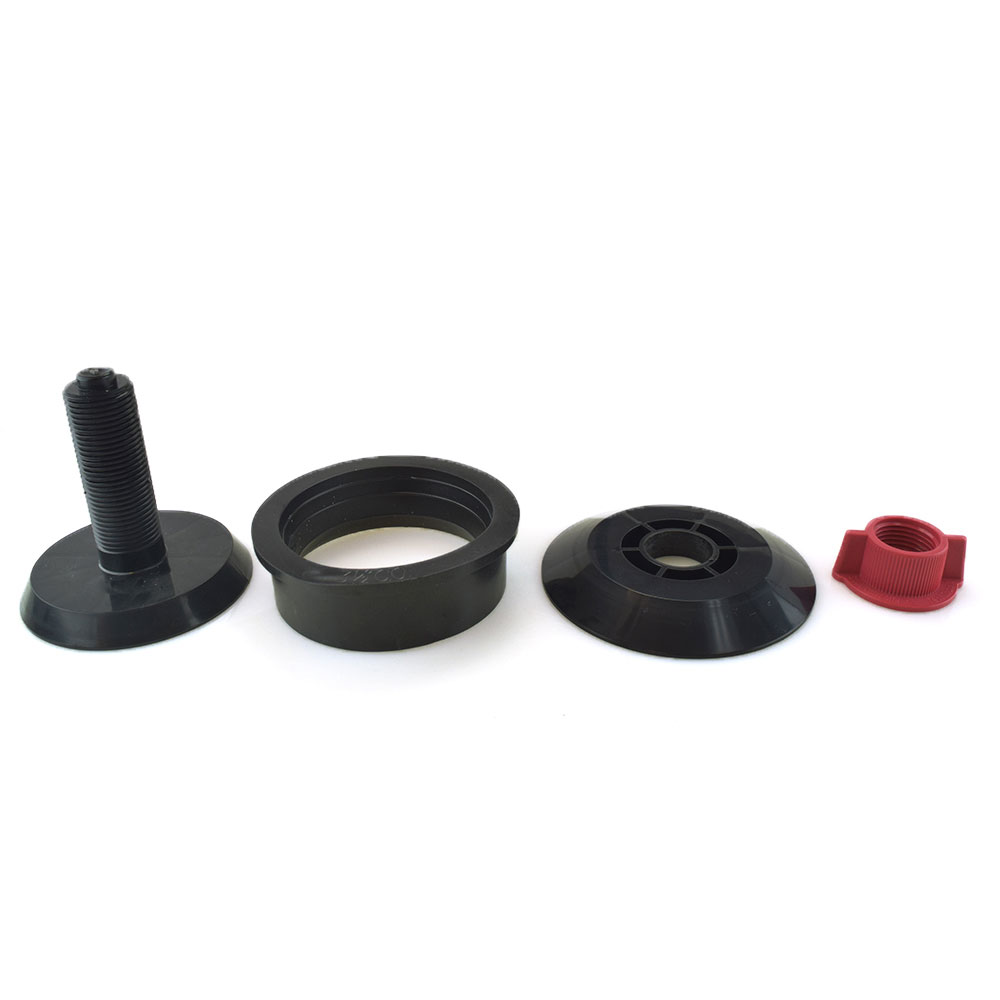

• Consists of polypro wingnut, ABS disc, ABS stem and soft PVC gasket
• Non-slip shoulder prevents spinning
• 1″ wide gasket vs 0.5″ in competition
• Made from 100% corrosion proof material.

Technical Specifications:

• Size: for 3-1/2″ PVC/ABS/Cast Iron FIP cleanout
• Stem, base and disc material: ABS
• Nut material: PolyPro
• Gasket material: soft PVC
• Safe working loads (for cleanout): 25 PSI
• Overall Diameter: 4.4″
• Overall Depth: 3.7″.
