Description
Get the ultimate in performance and handling with our Complete Coil-Over Suspension System designed for 2014-2018 Chevy Silverado or GMC Sierra 1500 2WD/4WD with OE stamped steel or aluminum arms. Featuring adjustable ride height and damping, this system delivers superior control and ride comfort. Our coil-over suspension system is constructed with high-quality materials for durability and long-lasting performance. With easy installation and a precise fit, you’ll enjoy a smoother ride and better handling in no time. Trust our Complete Coil-Over Suspension System to take your Chevy Silverado or GMC Sierra to the next level in both performance and comfort.
DESCRIPTION
Complete Coil-Over System for 2014-2018 Silverado & Sierra 1500 2WD/4WD. Includes front & rear HQ Series rebound adjustable Coil-Overs, front tubular upper control arms, bolt-on 4 link with c-notch, and drop spindles. Designed to lower your vehicle and improve handling and ride quality.
Fitment includes 2014-2018 Chevrolet Silverado and GMC Sierra 1500 (2019 Legacy & Limited) 2WD & 4WD pickups WITH STAMPED STEEL OR ALUMINUM OE CONTROL ARMS. Some trucks (specifically 2014-2016 model years) may have cast steel control arms which use different spindles and ball joints (Kit # 1170202 & 11700203). Trucks equipped with magnetic suspension require shock simulators.
- Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear.
- HQ Series Adjustable Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in Autocross or Road Course Racing? Consider the TQ Series Coil-Overs.

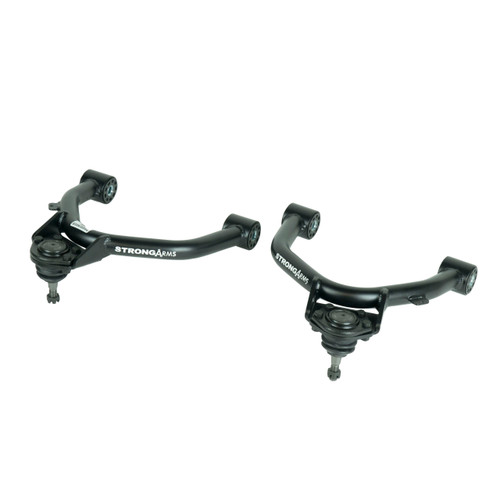

- The Upper StrongArm tubular control arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer. Fits 18″ or larger wheels.

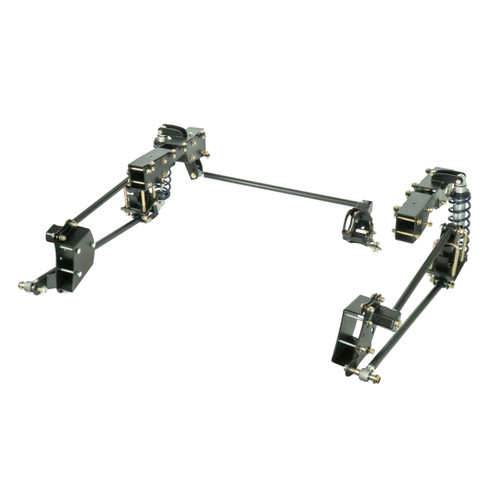

- The Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor. Includes patent-pending R-Joint rod ends to eliminate binding and noise.

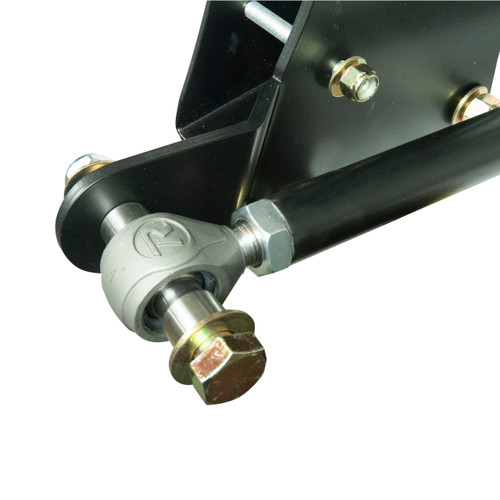

- Includes patent-pending R-Joint rod ends to eliminate binding and noise.
- Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.
- Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
- Designed for simple installation with minimal OEM rivet removal.
- Compatible with all cab size and bed length configurations
CLICK HERE – FOR INSTALL INSTRUCTIONS
CLICK HERE – FOR C-NOTCH PRINTABLE TEMPLATE
CLICK HERE – COILOVER INSTRUCTIONS
CLICK HERE – SHOCK TUNING GUIDE
