Description

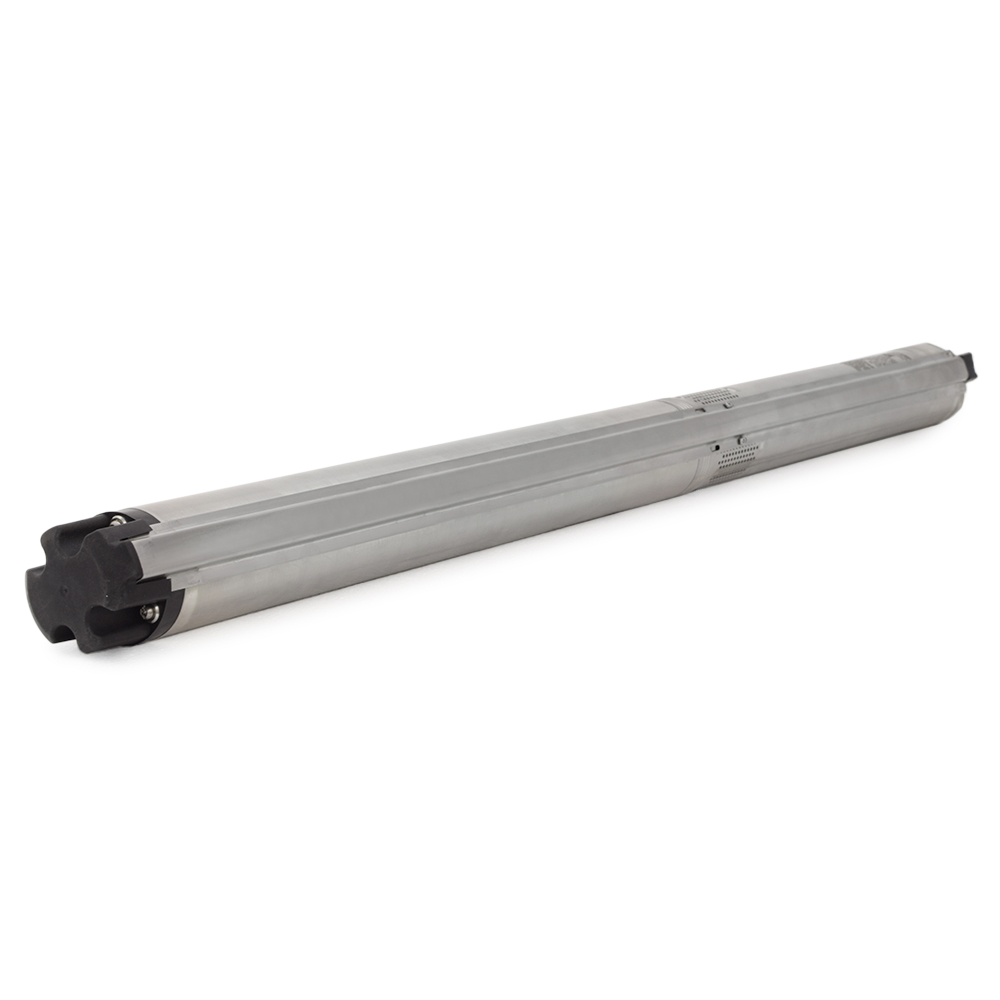

SQE series pumps are variable speed deep well submersible pumps which offer constant pressure control/functionality when used with CU 301 or CU 302 controls with pressure sensor. These controls allow to set a desired pressure and the pump will vary speed to match the current requirements. Such installation is much more compact, as it does not require a large well water storage tank.
SQE can also be installed as is (without the control) and will operate in a manner similar to their predecessor – SQ series, where water is pumped to and stored in a well water tank (such as Well-X-Trol) and on/off operation is controlled by a standard pressure switch (such as Square D).
Features:
- Unlike SQ series, SQE is a variable speed pump, which offers constant pressure control functionality when used with CU 301 or 302 module
- CU 301/302 control (optional, sold separately) allows adjustable constant pressure selection and remote pump set-up & diagnostics
- When used with CU 301/302 module in constant pressure mode, a much smaller well tank (2 gallons) can be used, allowing for a more compact and less expensive installation
- Rugged 304 stainless steel contruction and reliable, time-tested performance
- Easy to install – single-phase, 2-wire (+ ground) design – ideal drop-in replacement for similar models, no complex wiring
- Can be wired to a standard Square D or similar pressure switch when used with a well water storage tank (Well-X-Trol or similar)
- Much higher efficiency than conventional pumps thanks to the variable-speed, permanent magnet motor
- Superior sand wear resistance thanks to the floating impellers with tungsten carbide bearings
- Dry-running protection with auto-retry
- Unique Soft Start feature ensures a smooth acceleration, prevents overload during start-up, reduces motor wear and system stress (longer life and no water hammer)
- Overvoltage and undervoltage protection with auto cut-in (retry)
- Overload and thermal protection (overheating and freezing) with auto-retry
- Built-in check valve
Technical Specifications:
- Electrical Data: 200-240V, 60 Hz, Single Phase, 12.3 Amps
- Max. Flow: 19.5 GPM
- Rated Flow: 13.2 GPM
- Max. Head: ~480 ft
- Rated Head: 370.8 ft

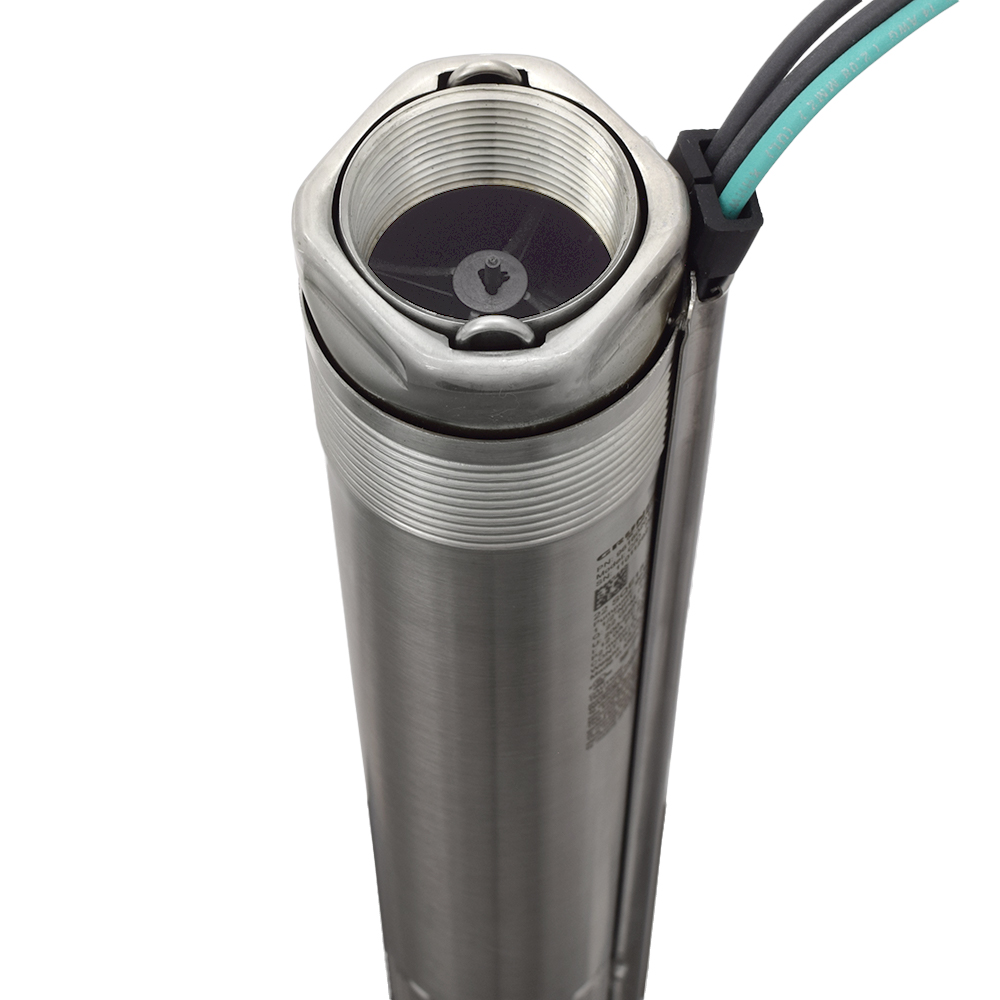

- Discharge Size/Connection: 1-1/4″ NPT
- Max Operating Pressure: 217 psi
- Water Temperature Range: 34°F – 86°F
- Water pH Range: 5 – 9 pH
- Pump Stages: 8
- Motor Specs: MSE3 Type, 1-1/2 HP, 3600-10700 rpm
- Min. Well Diameter: 3″ or larger boreholes
- Pump Material: 304 Stainless Steel
- Enclosure Class: IP68
- Dimensions (Diameter x Overall Length): 2.9″ x 34.8″
- Weight (lbs): 16 lbs
Warranty:
30 months from the date of manufacture / 24 months from date of installation
