Description

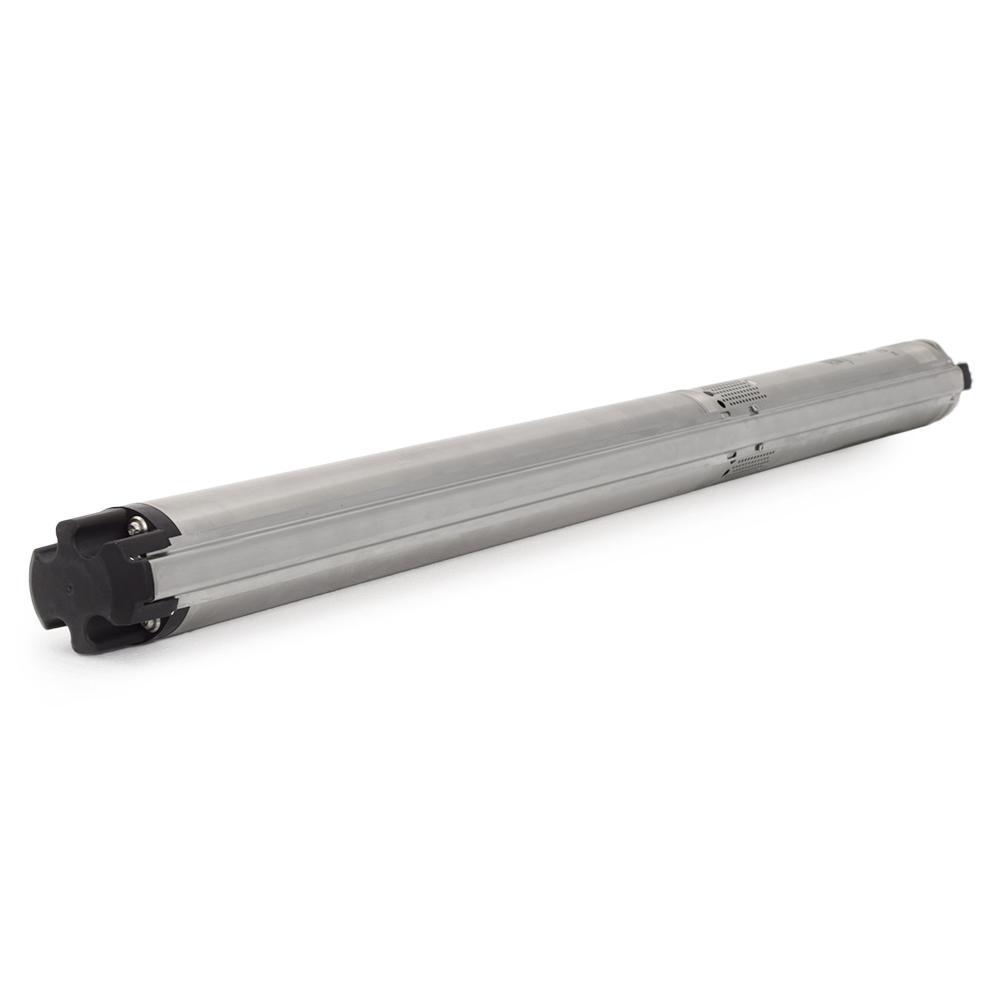

SQ series pumps are conventional fixed-speed deep well submersible pumps which which combine slim profile, time-tested, reliable design and ease of installation (no special controls needed). SQ pumps are ideally suited for common pump + well tank (such as Well-X-Trol) combinations where pressure switch (such as Square D) turns the pump on or off as needed.
Features:
- Time-tested, reliable performance and rugged 304 stainless steel contruction
- Easy to install, simple constant-speed, 1-phase, 2-wire (+ ground) design – ideal drop-in replacement for similar models, no complex wiring
- Can be wired to a standard Square D or similar pressure switch when used with a well tank (such as Well-X-Trol or similar)
- Higher efficiency than conventional pumps thanks to the permanent magnet motor – for added energy savings and slimmer design
- Enhanced sand wear resistance thanks to the floating impellers with tungsten carbide bearings
- Dry-running protection with auto-retry
- Unique Soft Start feature ensures a smooth acceleration, prevents overload during start-up, reduces motor wear and system stress (longer life and no water hammer)
- Overvoltage and undervoltage protection with auto cut-in (retry)
- Overload and thermal protection (overheating and freezing) with auto-retry
- Built-in check valve
Technical Specifications:
- Electrical Data: 200-240V, 60 Hz, Single Phase, 11.2 Amps
- Max. Flow: 15 GPM
- Rated Flow: 8.81 GPM
- Max. Head: ~435 ft
- Rated Head: 354.3 ft
- Discharge Size/Connection: 1-1/4″ NPT
- Max Operating Pressure: 217 psi
- Water Temperature Range: 34°F – 86°F
- Water pH Range: 5 – 9 pH
- Pump Stages: 6
- Motor Specs: MS3 Type, 1 HP, 3600-10700 rpm
- Min. Well Diameter: 3″ or larger boreholes
- Pump Material: 304 Stainless Steel
- Enclosure Class: IP68
- Dimensions (Diameter x Overall Length): 2.9″ x 33.8″
- Weight (lbs): 14 lbs
Warranty:
30 months from the date of manufacture / 24 months from date of installation
