Description

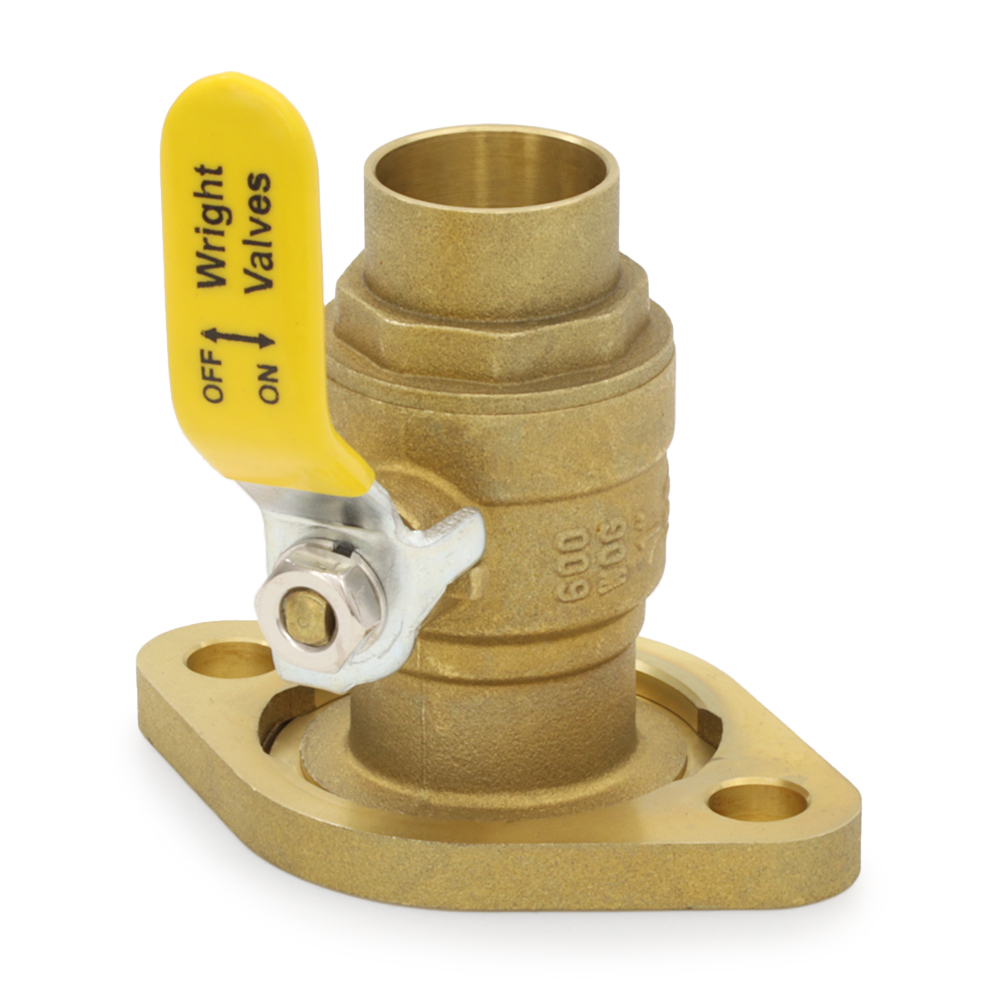

Pump isolation flange valves offer a quick and easy way to isolate a circulator pump for service, replacement or repair without draining and re-filling the entire system. These valves are compatible with most circulators, including:
Grundfos: UP15, UPS15, UP26, UPS26 and Alpha series;
Taco: 005, 006, 007, 008, 009, 0010, 0011, 0013, 0014,Viridian and other model circulator pumps;
As well as most B&G, Wilo and Armstrong circulator pumps.
Features:
- Includes universal circulator pump gasket
- Uni-body design

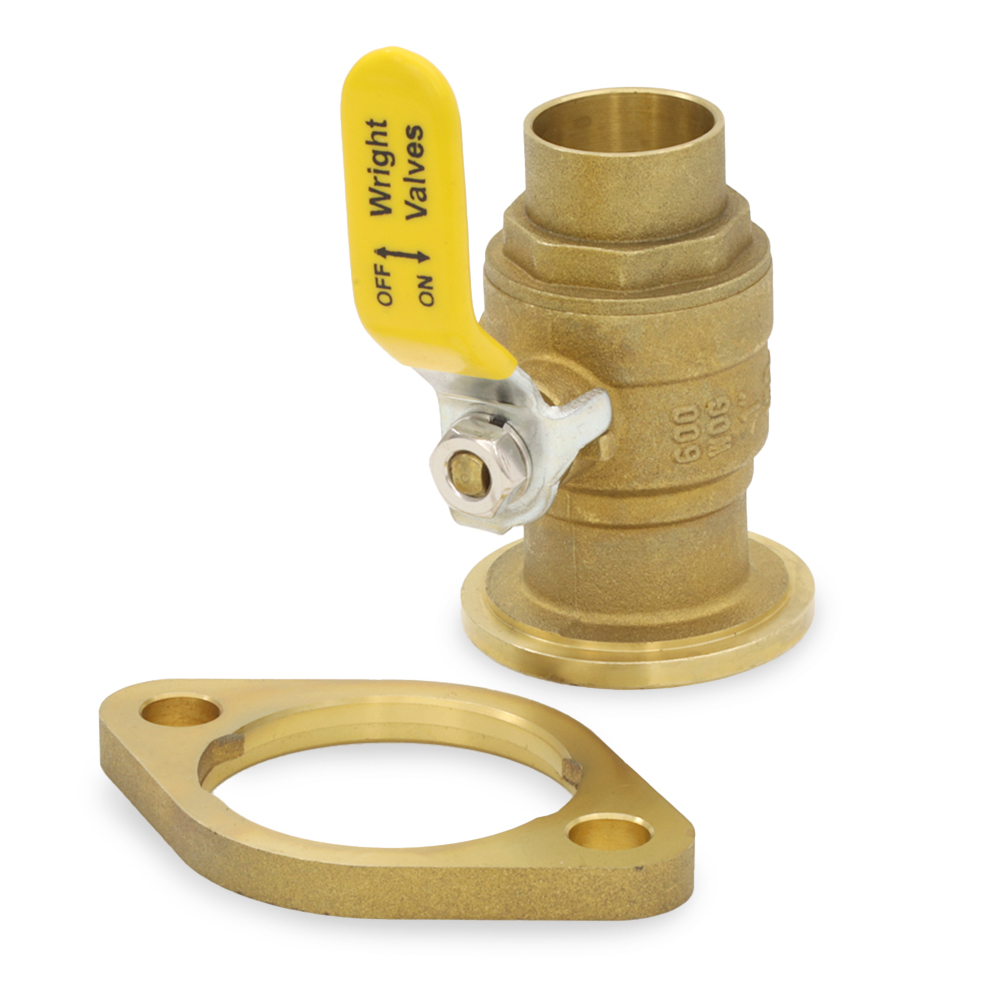

- Rotating flange for convenient installation
- Universal compatibility
- Heavy-duty forged brass body
- Full port design
- 1/4-turn, rubber coated reversible steel handle (+additional T-handle)
- High quality PTFE seats
- Adjustable packing nut
- Blowout-proof stem.
Technical Specifications:
- Pressure Rated: 400 WOG
- Inlet Connection: Standard Flange (3-1/8″ On Center Holes)
- Outlet Connection: 1″ Sweat
- Each set includes: (1) Isolator Flange Valve, (1) Gasket, (2) Bolts and (2) Nuts, (1) T-handle
