Description

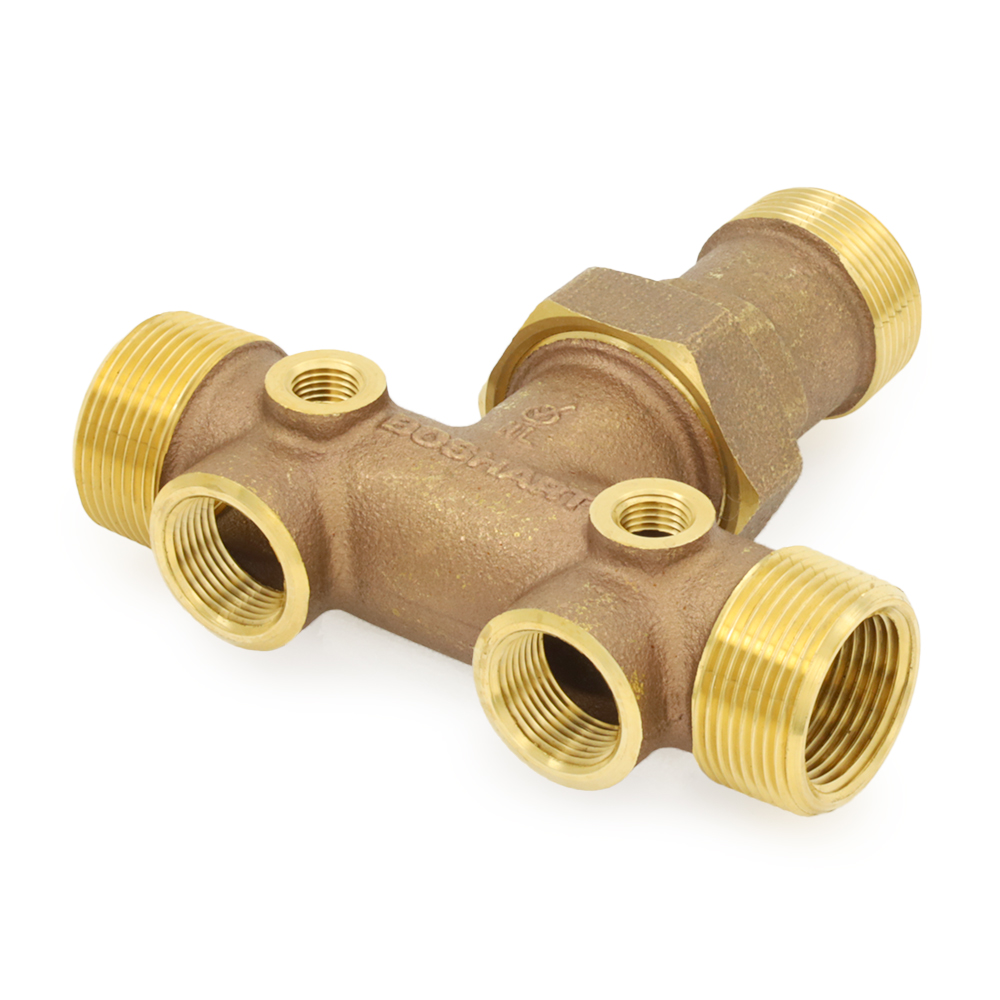

Lead-free brass, Union-type well tank tee with 1-1/4″ male NPT threaded tank connection, 1-1/4″ MNPT (1″ FNPT inside) inlet/outlet ports, (2) 1/4″ FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4″ FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 4-1/2″ and an overall length of ~5-1/4″.
This well tank tee model is a “Short” type and is commonly used for well tanks which have a connection which protrudes beyond the base (skirt) of the tank and is visible from the outside.
It also can be used in combination with an extension pipe nipple and a coupling to connect to a large diameter standing type tank.
1-1/4″ connection is ideal for larger size well tanks to allow for higher flow rates with minimal pressure drop.
Features:
- Short design commonly used for well tanks with connection protruding from the base
- Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
- 1-1/4″ connections for higher flow rate
- Lead-free brass, NSF/ANSI 372 listed
- Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
- Threads made to ANSI/ASME B1.20.1
Technical Specifications:
- Material: Lead-Free Brass
- Center-to-End Length: 4-1/2″
- Overall Length:
- Tank Connection: 1-1/4″ MPT
- In-Line Tee Connections: 1-1/4″ MPT x 1″ FPT
- Drain/PRV Ports: (2) 3/4″ FPT
- Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4″ FPT
- Max. Operating Pressure: 200 psi
