1-1/2″ Gas Appliance Regulator (325-7A series)

Description

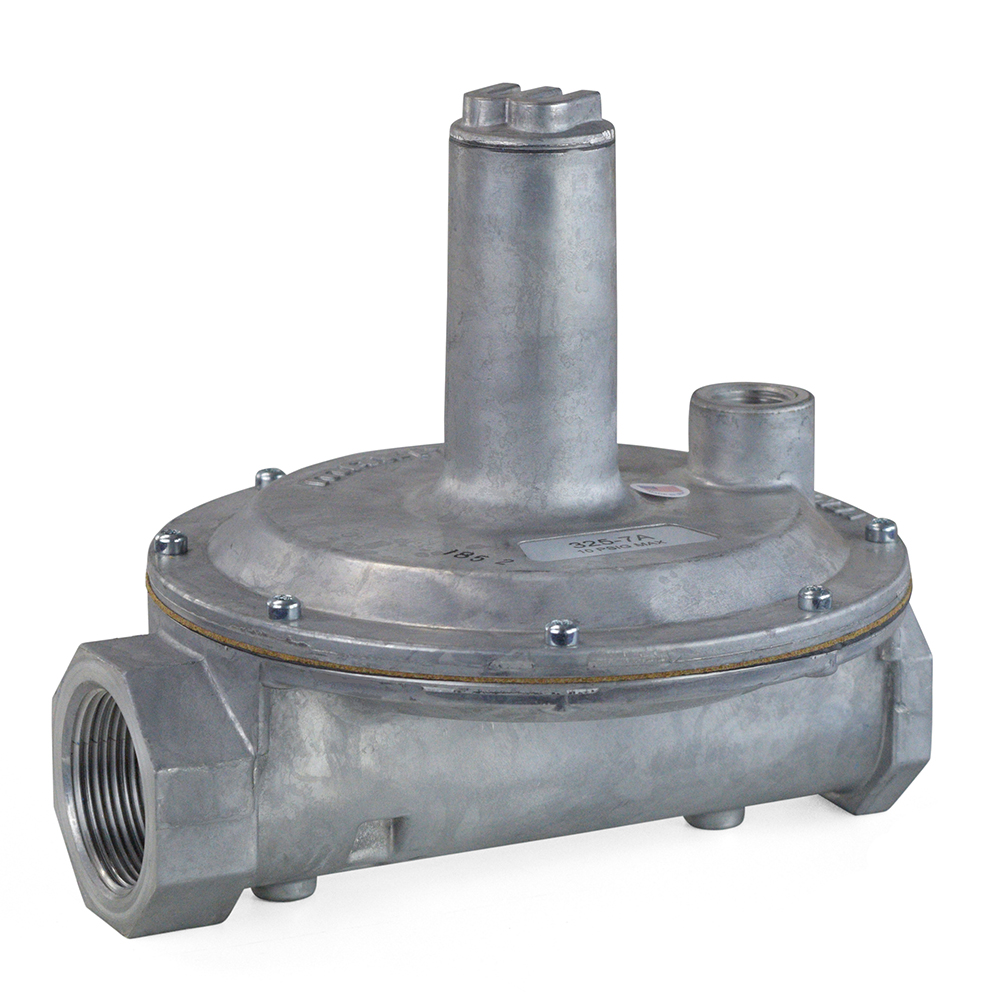

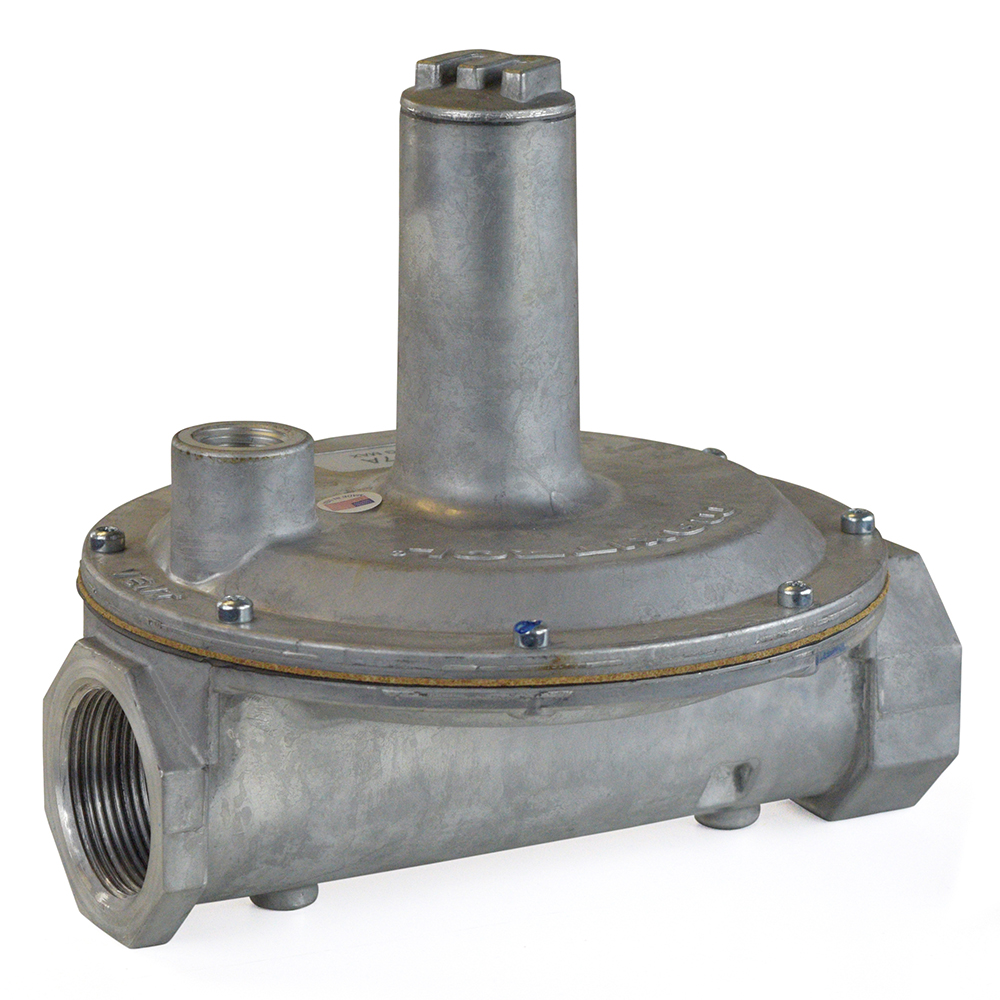

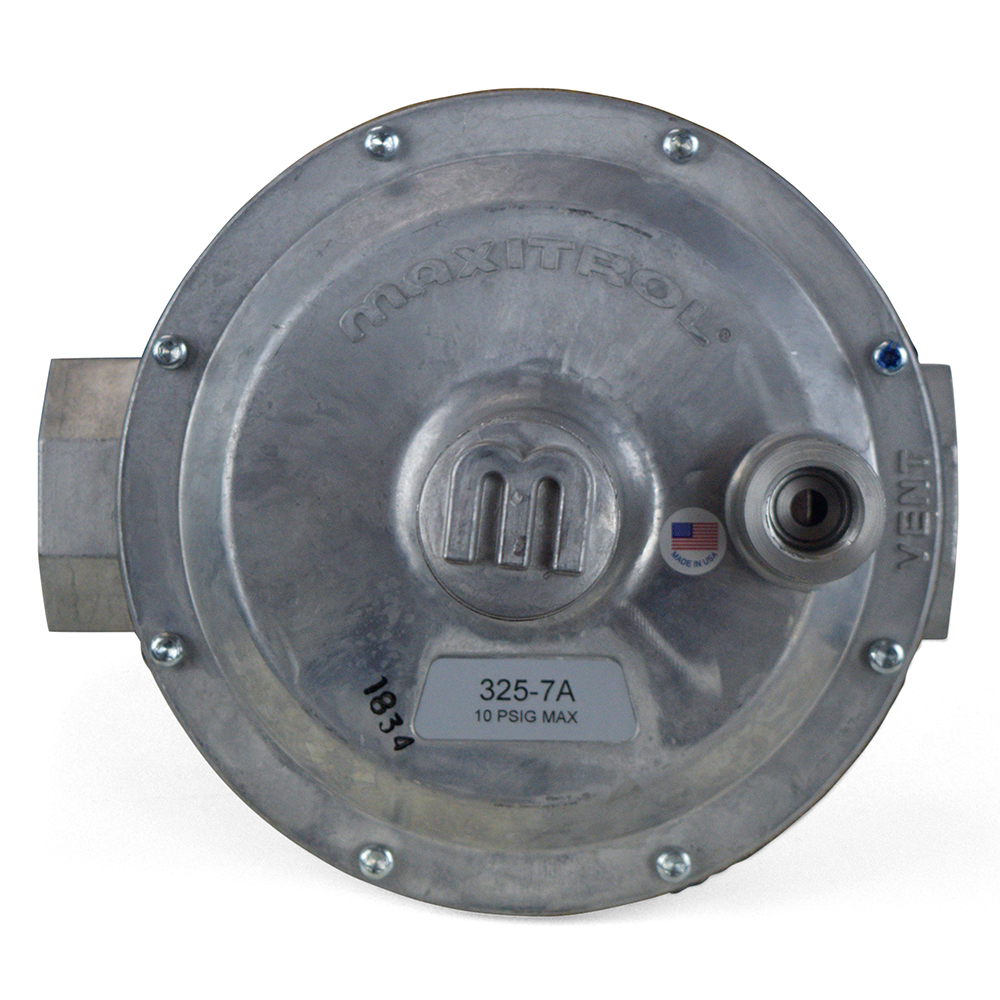

325-7A series, Maxitrol 1-1/2″ gas appliance regulator.
NOTE1:This product does not include 12A49 vent limiting device, which is required when regulator is installed indoors and eliminates the need to run the vent line outside.
NOTE2:This product is intended for installation by a licensed gas professional.
Features:

• Lever-acting design
• Positive dead-end lockup
• Precise control from full flow down to pilot flow
• Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
• CSA certified & labeled
• Complies with ANSI Z21.18 (standard for appliance regulators)
• Made in the USA

Technical Specifications:

• Inlet/Outlet Connection: 1-1/2″ NPT
• Rated Inlet Pressure (w/ Vent Limiter Installed): 5 psi (NG), 2 psi (LP)
• Outlet Pressure Range: 7″ – 11″ w.c. (White Spring)
• Factory-Set Pressure (w.c.): 7″
• Emergency Exposure Limits: 65 psi (Inlet Side Only)
• Capacity (Combined): 1,250,000 BTU/hr
• Max Individual Load (Single Appliance): 1,250,000 BTU/hr
• Operating Temperature Range (Ambient): -40 – 205°F
• Vent Connection: 1/2″ NPT
• Housing material: Aluminum
• Dimensions (L x H): 8″ x 7.3″
